YZFR1B

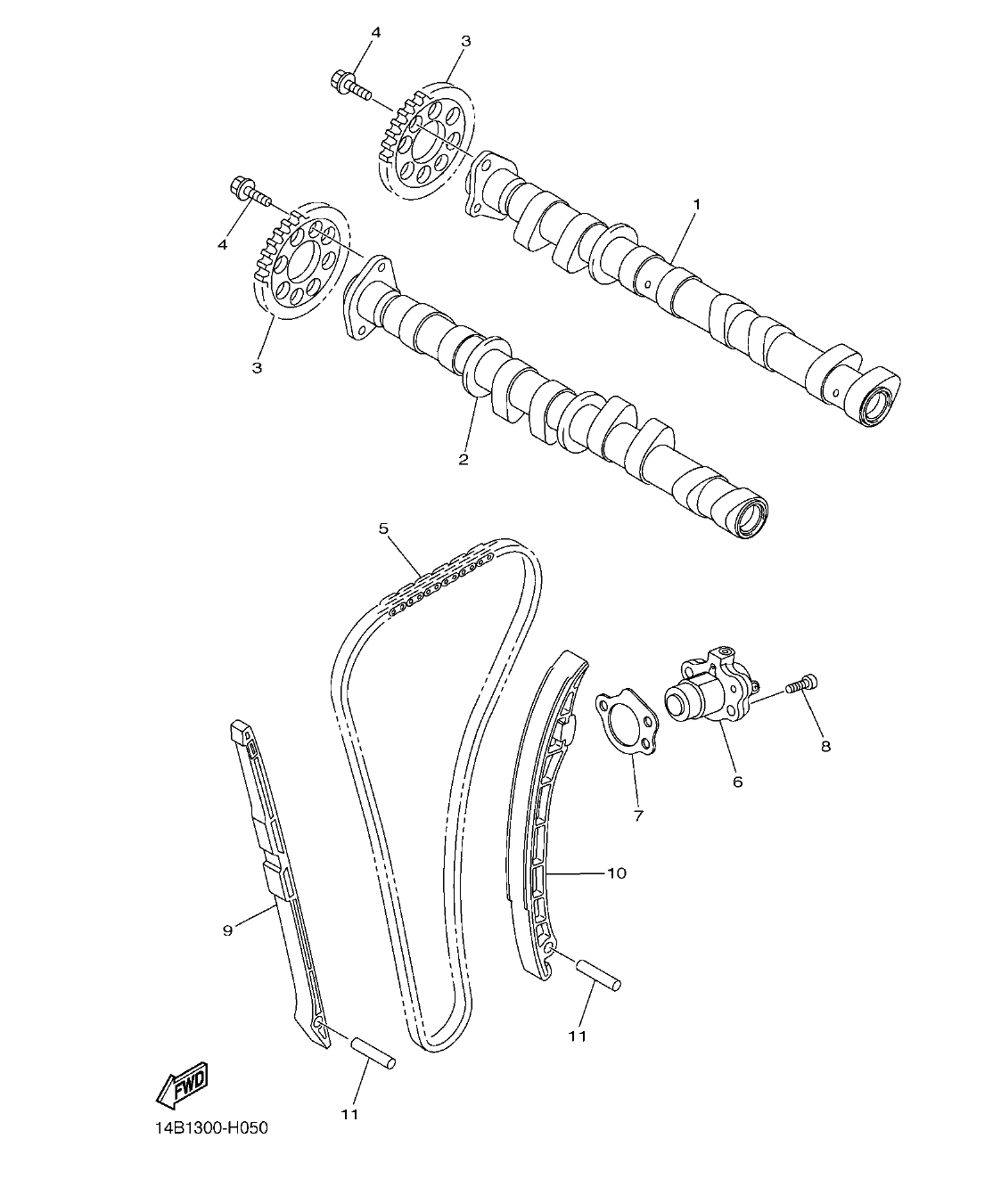

Section 5: CAMSHAFT & CHAIN (v2)
Model code: 1KBB
Parts list
Section 5
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
14B-12170-01
CAMSHAFT ASSY 1
|
1 | |
| 2 |
14B-12180-01
CAMSHAFT ASSY 2
|
1 | |
| 3 |
14B-12176-00
SPROCKET, CAM CHAIN
|
2 | |
| 4 |
90105-07006
BOLT, FLANGE
|
4 | |
| 5 |
94591-60126
CHAIN
|
1 | |
| 6 |
1KB-12210-00
TENSIONER ASSY, CAM CHAIN
|
1 | |
| 7 |
14B-12213-00
GASKET, TENSIONER CASE
|
1 | |
| 8 |
91312-06025
BOLT
|
2 | |
| 9 |
1KB-12251-00
DAMPER, CHAIN 1
|
1 | |
| 10 |
14B-12252-00
DAMPER, CHAIN 2
|
1 | |
| 11 |
93607-44002
PIN, DOWEL
|
2 |
