YZFR1B

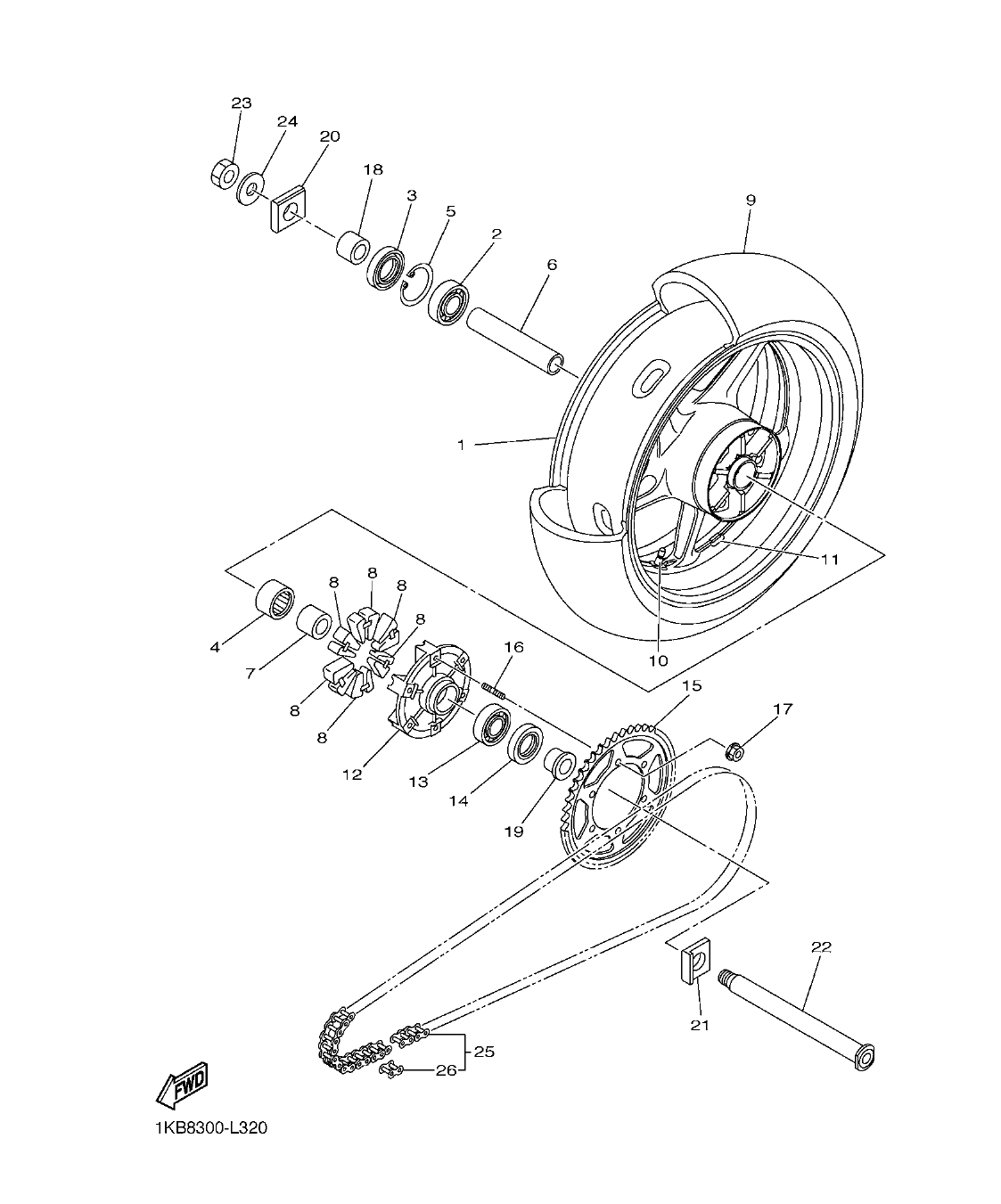

Section 32: REAR WHEEL (v2)
Model code: 1KBB
Parts list
Section 32
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5VY-25338-00-98
CAST WHEEL, REAR
LGB FOR SMX
|
1 | |
| 1 |
5VY-25338-00-5X
CAST WHEEL, REAR
LGB/RW FOR DPBMC
|
1 | |
| 2 |
93306-20531
BEARING
|
1 | |
| 3 |
93106-40013
OIL SEAL
|
1 | |
| 4 |
93317-43580
BEARING
|
1 | |
| 5 |
93420-61M07
CIRCLIP
|
1 | |
| 6 |
5PW-25317-00
SPACER, BEARING
|
1 | |
| 7 |
4XV-25383-00
COLLAR, WHEEL
|
1 | |
| 8 |
2C0-25364-00
DAMPER
|
6 | |
| 9 |
94119-17072
TIRE(190/55 ZR17 M/C 75W)
DUNLOP
|
1 | |
| 10 |
93900-00030
VALVE, RIM (TR412)
TAIHEIYO
|
1 | |
| 11 |
5MT-25398-00
BALANCER, WHEEL (10G)
UN
|
1 | |
| 11 |
5MT-25398-10
BALANCER, WHEEL (20G)
UN
|
1 | |
| 11 |
5MT-25398-20
BALANCER, WHEEL (30G)
UN
|
1 | |
| 12 |
5JJ-25366-00
CLUTCH, HUB
|
1 | |
| 13 |
93306-20531
BEARING
|
1 | |
| 14 |
93106-40013
OIL SEAL
|
1 | |
| 15 |
14B-25447-20
SPROCKET, DRIVEN (47T)
|
1 |
266.67 AED
Check price & stock on WhatsApp
|
| 16 |
90116-10048
BOLT, STUD
|
6 | |
| 17 |
90185-10011
NUT, SELF-LOCKING
|
6 | |
| 18 |
90387-28016
COLLAR
|
1 | |
| 19 |
90387-28019
COLLAR
|
1 | |
| 20 |
5VY-25388-00
PULLER, CHAIN 1
|
1 | |
| 21 |
5VY-25389-01
PULLER, CHAIN 2
|
1 | |
| 22 |
4C8-25381-00
AXLE, WHEEL
|
1 | |
| 23 |
90185-24007
NUT, SELF-LOCKING
|
1 | |
| 24 |
90201-25020
WASHER, PLATE
|
1 | |
| 25 |
94582-30120
CHAIN (DID 50VAZ-120LL)
|
1 | |
| 26 |
94682-30031
.JOINT, CHAIN (DID 50VAZ-ZJ)
|
1 |
