YZFR1B

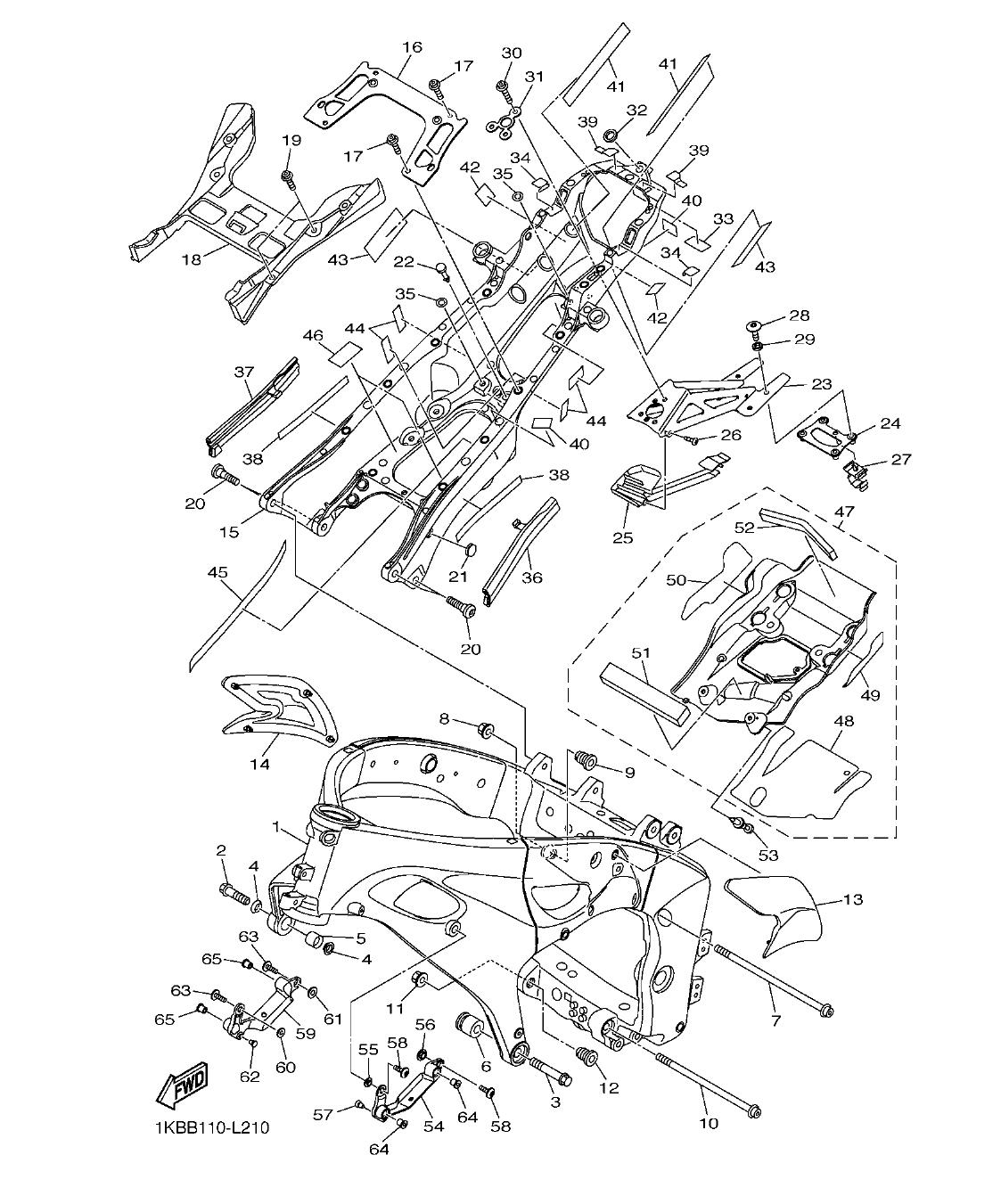

Section 21: FRAME (v2)
Model code: 1KBB
Parts list
Section 21
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 2 |
90105-12062
BOLT, FLANGE
|
1 | |
| 3 |
95812-12080
BOLT, FLANGE
|
1 | |
| 4 |
14B-21414-00
BOSS, ENGINE MOUNT
|
2 | |
| 5 |
14B-21424-00
BOSS, ENGINE MOUNT
|
1 |
68.53 AED
Check price & stock on WhatsApp
|
| 6 |
14B-2141R-00
BOSS
|
1 | |
| 7 |
90110-10024
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 8 |
90179-10028
NUT
|
1 | |
| 9 |
14B-21495-00
BOLT, ENGINE ADJUSTING
|
1 | |
| 10 |
90110-10023
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 11 |
90179-10028
NUT
|
1 | |
| 12 |
14B-21495-00
BOLT, ENGINE ADJUSTING
|
1 | |
| 13 |
14B-24121-00
SEAT, KNEE GRIP 1
|
1 | |
| 14 |
14B-24122-00
SEAT, KNEE GRIP 2
|
1 | |
| 15 |
14B-21190-00
REAR FRAME COMP.
|
1 | |
| 16 |
14B-21131-00
BRACKET
|
1 | |
| 17 |
90110-06163
BOLT, HEXAGON SOCKET HEAD
|
4 |
2.98 AED
Check price & stock on WhatsApp
|
| 18 |
1KB-Y212E-00
REINF., FRAME RR. ASSY
|
1 |
402.98 AED
Check price & stock on WhatsApp
|
| 19 |
90110-06163
BOLT, HEXAGON SOCKET HEAD
|
4 |
2.98 AED
Check price & stock on WhatsApp
|
| 20 |
1KB-211C5-00
SCREW 1
|
4 | |
| 21 |
90338-15004
PLUG
|
1 | |
| 22 |
90269-04025
RIVET
|
1 | |
| 23 |
14B-21640-10
REAR STAY COMP.
|
1 | |
| 24 |
14B-21682-00
STAY, PLATE
|
1 | |
| 25 |
14B-2163A-00
COVER, REAR FENDER 1
|
1 | |
| 26 |
97702-50016
SCREW, TAPPING
|
1 | |
| 27 |
90464-14228
CLAMP
|
1 | |
| 28 |
90111-06129
BOLT,HEX. SOCKET BUTTON
|
4 | |
| 29 |
90387-061Y1
COLLAR
|
4 | |
| 30 |
90110-06156
BOLT, HEXAGON SOCKET HEAD
|
3 | |
| 31 |
14B-21615-00
WASHER, SPECIAL 1
|
1 | |
| 32 |
13S-21746-00
DAMPER
|
1 | |
| 33 |
14B-22873-00
SEAL 1
|
1 | |
| 34 |
14B-22874-00
SEAL 2
|
2 | |
| 35 |
13S-2173M-00
SEAL 3
|
2 | |
| 36 |
1KB-22876-00
SEAL 4
|
1 | |
| 37 |
1KB-22877-00
SEAL, 5
|
1 | |
| 38 |
13S-21567-00
TAPE, 2
|
2 | |
| 39 |
14B-22879-00
SEAL, 7
|
2 | |
| 40 |
14B-28425-00
DAMPER 3
|
2 | |
| 41 |
3C5-2414H-00
DAMPER, PLATE 1
|
2 | |
| 42 |
14B-28227-00
DAMPER 2
|
2 | |
| 43 |
2S2-2214F-70
DAMPER 1
|
2 | |
| 44 |
14B-28237-00
DAMPER 3
|
4 | |
| 45 |
90520-03010
DAMPER, PLATE
|
1 | |
| 46 |
14B-28435-00
DAMPER 4
|
2 | |
| 47 |
14B-2110N-20
COVER ASSY 2
|
1 | |
| 48 |
14B-2112B-00
.SEAT 1
|
1 | |
| 49 |
14B-2113C-00
.SHEET,2
|
1 | |
| 50 |
14B-2113D-00
.SHEET, 3
|
1 | |
| 51 |
90520-15001
.DAMPER, PLATE
|
1 | |
| 52 |
90520-15004
.DAMPER, PLATE
|
1 | |
| 53 |
90269-06016
RIVET
|
2 | |
| 54 |
14B-2836F-00
BRACKET 3
|
1 | |
| 55 |
90387-06217
COLLAR
|
1 | |
| 56 |
90560-08251
SPACER
|
1 | |
| 57 |
90338-06018
PLUG
|
1 | |
| 58 |
90111-06145
BOLT,HEX. SOCKET BUTTON
|
2 | |
| 59 |
14B-2836G-00
BRACKET 4
|
1 | |
| 60 |
90387-06217
COLLAR
|
1 | |
| 61 |
90560-08251
SPACER
|
1 | |
| 62 |
90338-06018
PLUG
|
1 | |
| 63 |
90111-06145
BOLT,HEX. SOCKET BUTTON
|
2 | |
| 64 |
90179-05013
NUT
|
2 | |
| 65 |
90179-05013
NUT
|
2 |
