YZFR1B

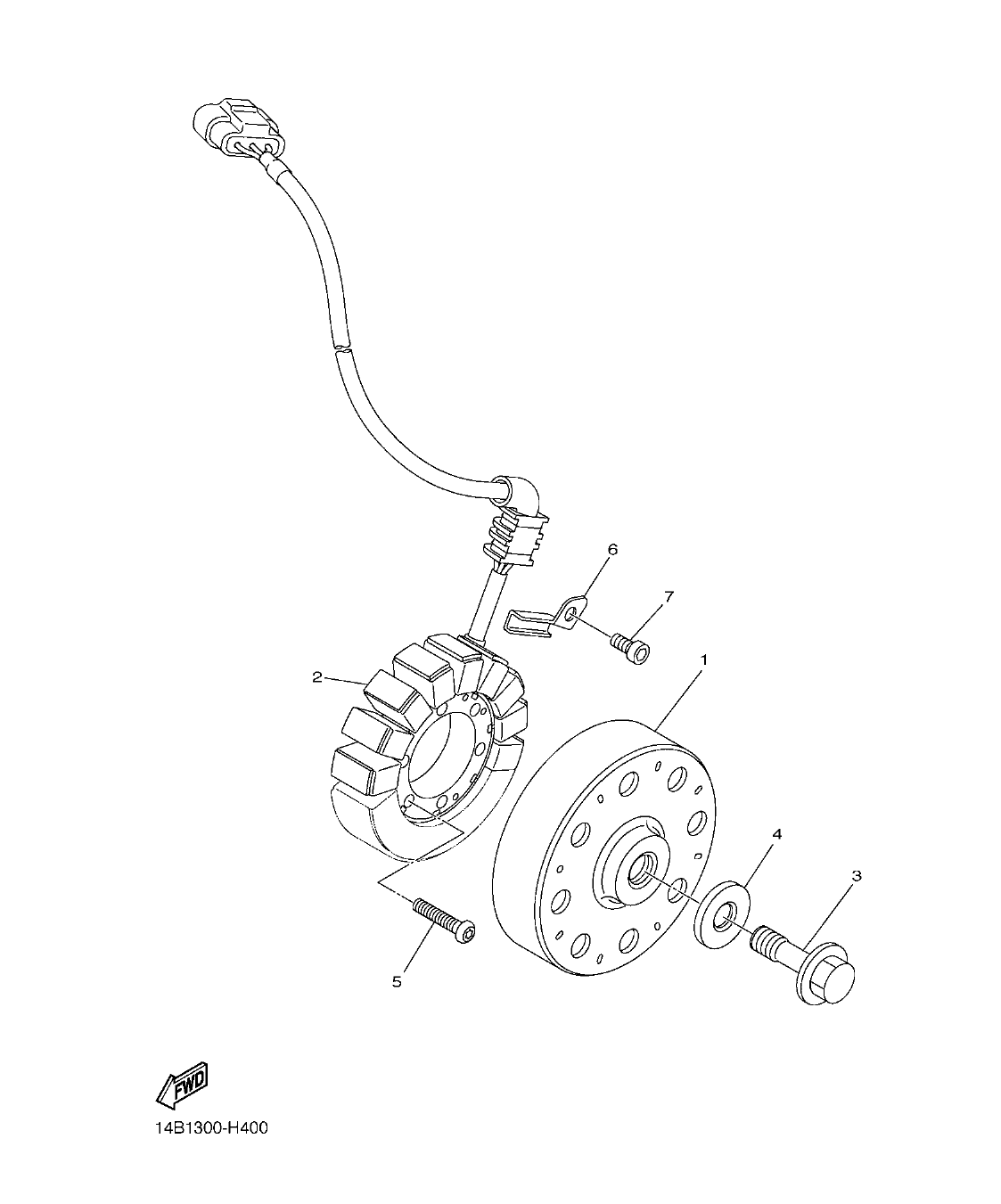

Section 40: GENERATOR (v2)
Model code: 1KBB
Parts list
Section 40
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
14B-81450-00
ROTOR ASSY
|
1 | |
| 2 |
14B-81410-00
STATOR ASSY
|
1 | |
| 3 |
90105-126A8
BOLT, FLANGE
|
1 | |
| 4 |
90201-12008
WASHER, PLATE
|
1 | |
| 5 |
90149-06128
SCREW
|
3 | |
| 6 |
14B-15484-00
CLAMP 2
|
1 | |
| 7 |
90110-06182
BOLT, HEXAGON SOCKET HEAD
|
1 |
