YZFR1B
Section 16: STARTER (v2)
Model code: 1KBB

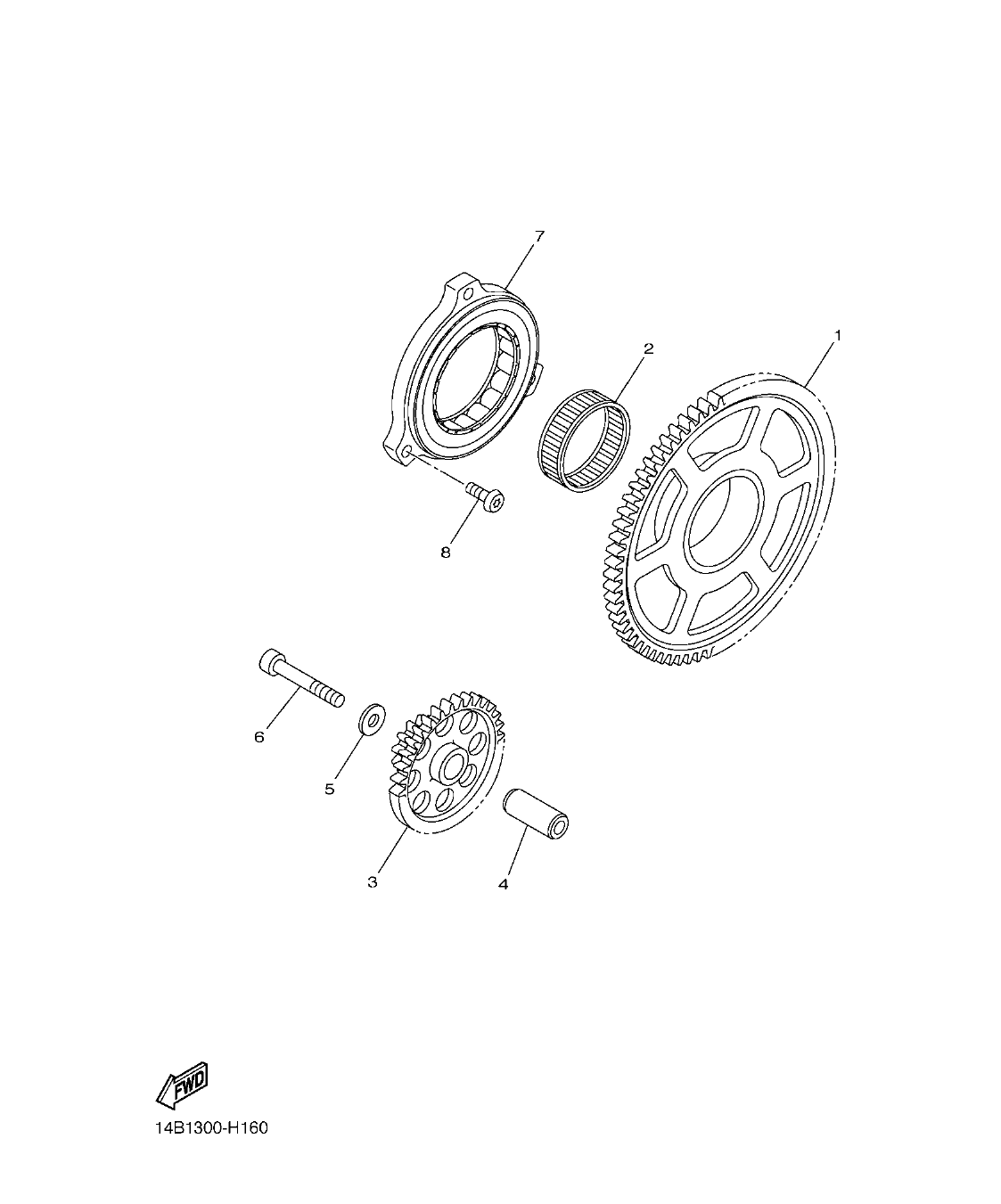

Parts list
Section 16
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
14B-15515-00
GEAR 3
|
1 | |
| 2 |
93310-24160
BEARING
|
1 | |
| 3 |
14B-15517-00
GEAR, IDLER 2
|
1 | |
| 4 |
14B-15521-00
SHAFT 1
|
1 | |
| 5 |
90201-06589
WASHER, PLATE
|
1 | |
| 6 |
90110-06223
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 7 |
14B-15570-00
STARTER CLUTCH ASSY
|
1 | |
| 8 |
90149-06158
SCREW
|
3 |
