YZFR1B

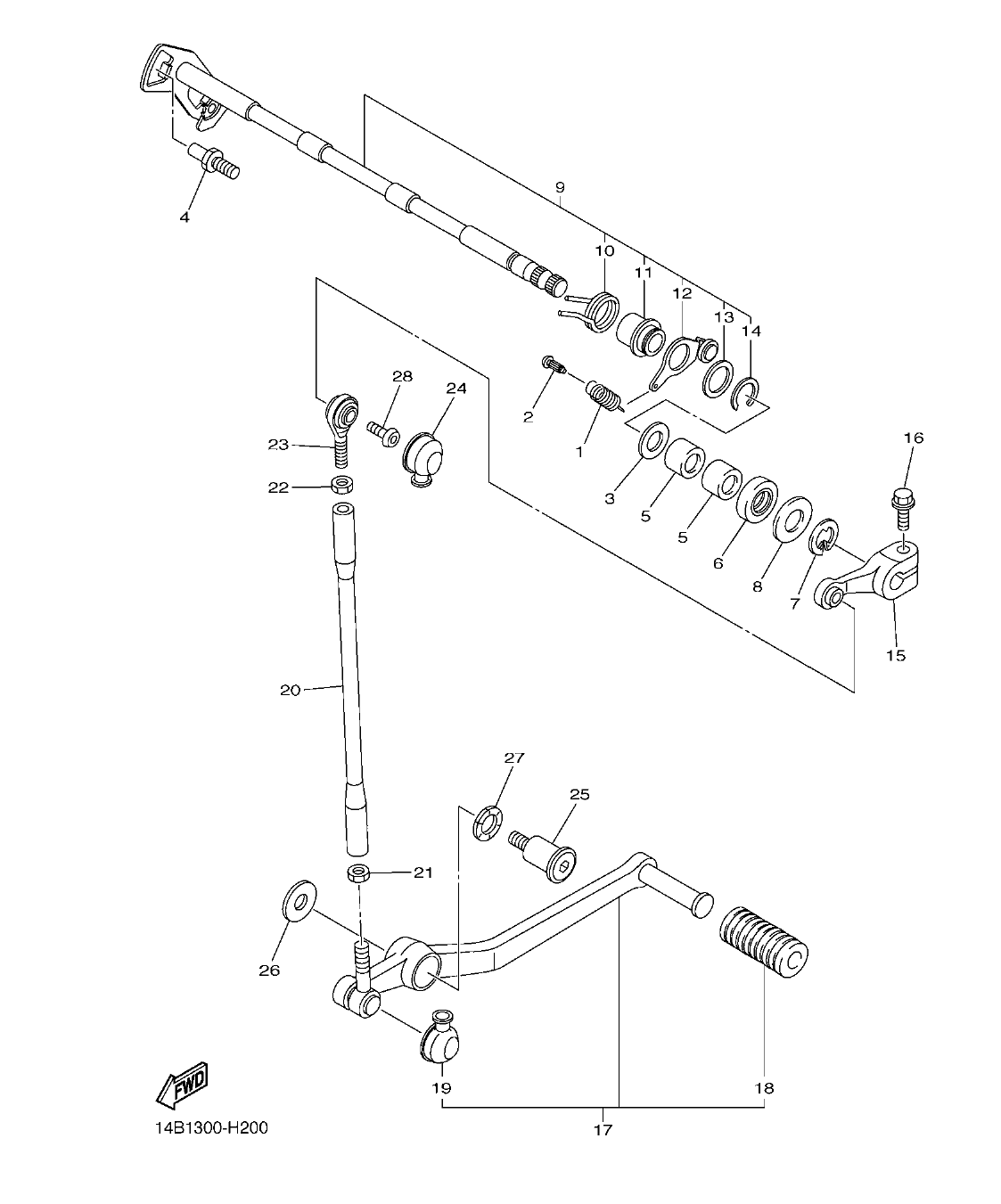

Section 20: SHIFT SHAFT (v2)
Model code: 1KBB
Parts list
Section 20
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
90506-18021
SPRING, TENSION
|
1 | |
| 2 |
132-16346-00
HOOK, SPRING
|
1 | |
| 3 |
90201-127E1
WASHER, PLATE
|
1 | |
| 4 |
1D7-18127-00
STOPPER, SCREW
|
1 | |
| 5 |
93317-11295
BEARING
|
2 | |
| 6 |
93102-12106
OIL SEAL (SD 12-22-5 HS)
|
1 | |
| 7 |
99002-10600
CLIP
|
1 | |
| 8 |
90201-12575
WASHER, PLATE
|
1 | |
| 9 |
14B-18101-00
SHIFT SHAFT ASSY
|
1 | |
| 10 |
90508-32020
.SPRING, TORSION
|
1 | |
| 11 |
2C0-18175-00
.SPACER
|
1 | |
| 12 |
14B-18140-00
.STOPPER LEVER ASSY
|
1 | |
| 13 |
90201-177G4
.WASHER, PLATE
|
1 | |
| 14 |
99009-17400
.CIRCLIP
|
1 | |
| 15 |
5JJ-18112-20
ARM, SHIFT
|
1 | |
| 16 |
95022-06020
BOLT, FLANGE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 17 |
14B-18110-00
SHIFT PEDAL ASSY
|
1 | |
| 18 |
5EB-18113-00
.COVER, SHIFT PEDAL
|
1 |
16.39 AED
Check price & stock on WhatsApp
|
| 19 |
4XV-18154-00
.COVER, DUST
|
1 | |
| 20 |
5LV-18115-10
ROD, SHIFT
|
1 | |
| 21 |
90170-06228
NUT(COUNTER CLOCKWISE)
|
1 | |
| 22 |
95304-06700
NUT
|
1 | |
| 23 |
5LV-18116-00
JOINT, ROD 1
|
1 | |
| 24 |
4XV-18154-00
COVER, DUST
|
1 | |
| 25 |
4C8-27434-00
BOLT
|
1 | |
| 26 |
90201-08103
WASHER, PLATE
|
1 | |
| 27 |
90206-14086
WASHER, WAVE
|
1 | |
| 28 |
90111-06019
BOLT,HEX. SOCKET BUTTON
|
1 |
