YZFR1B

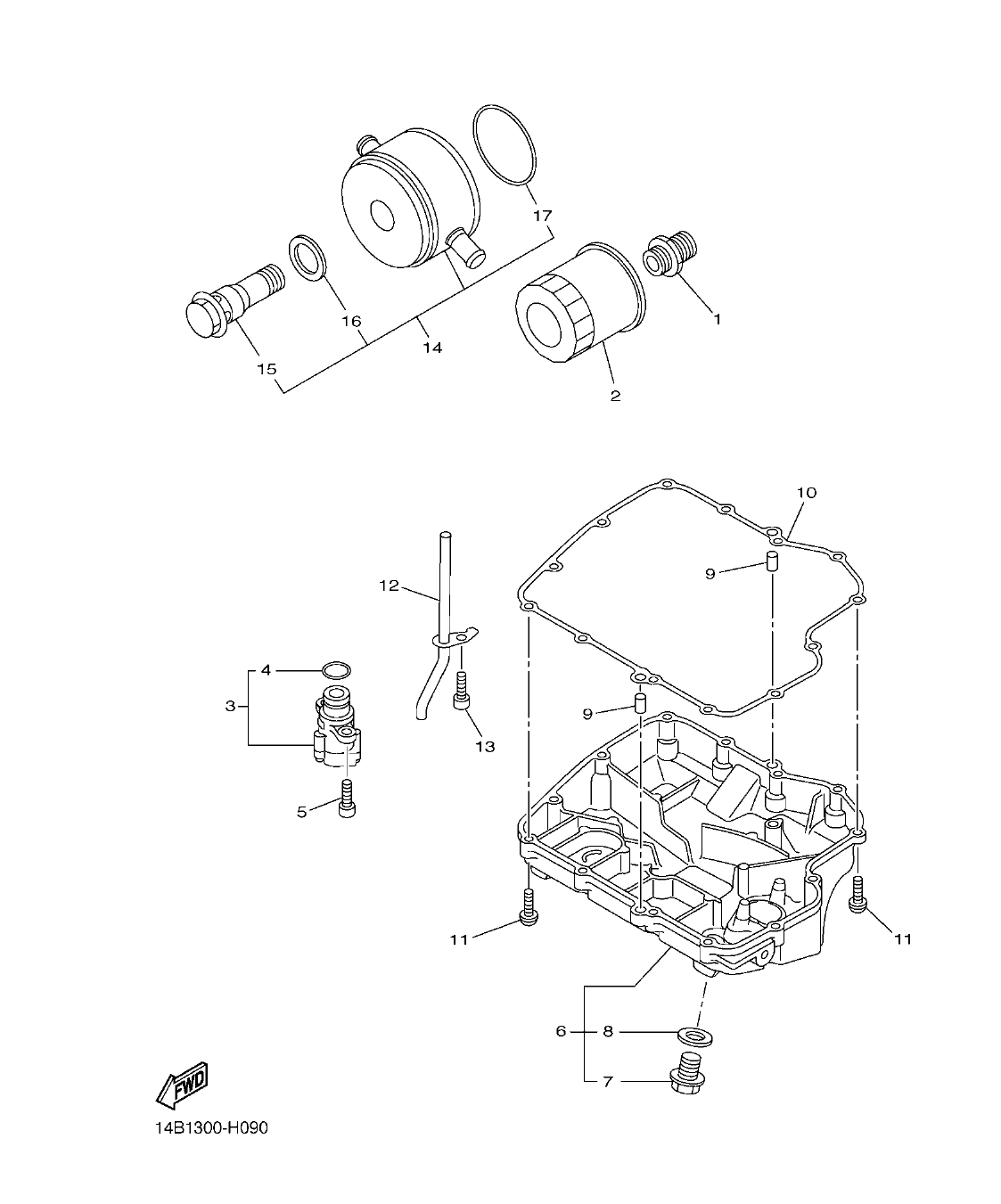

Section 9: OIL CLEANER (v2)
Model code: 1KBB
Parts list
Section 9
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
90401-20008
BOLT, UNION
|
1 | |
| 2 |
5GH-13440-20
ELEMENT ASSY, OIL CLEANER
|
1 | |
| 3 |
14B-13490-00
RELIEF VALVE ASSY
|
1 | |
| 4 |
93210-15566
.O-RING
|
1 | |
| 5 |
90110-06169
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 6 |
1KB-13400-00
STRAINER COVER ASSY
|
1 | |
| 7 |
90340-14132
.PLUG, STRAIGHT SCREW
|
1 | |
| 8 |
214-11198-01
.GASKET
|
1 | |
| 9 |
99530-08012
PIN, DOWEL
|
2 | |
| 10 |
14B-13414-00
GASKET, STRAINER COVER
|
1 | |
| 11 |
90149-06079
SCREW
|
13 | |
| 12 |
14B-13161-00
PIPE, DELIVERY 1
|
1 | |
| 13 |
90110-06182
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 14 |
14B-13470-00
OIL COOLER ASSY
|
1 | |
| 15 |
5FL-12822-00
.BOLT, UNION
|
1 | |
| 16 |
5EB-13475-00
.GASKET
|
1 |
33.85 AED
Check price & stock on WhatsApp
|
| 17 |
14B-13473-00
.O-RING
|
1 |
