YZFR1B

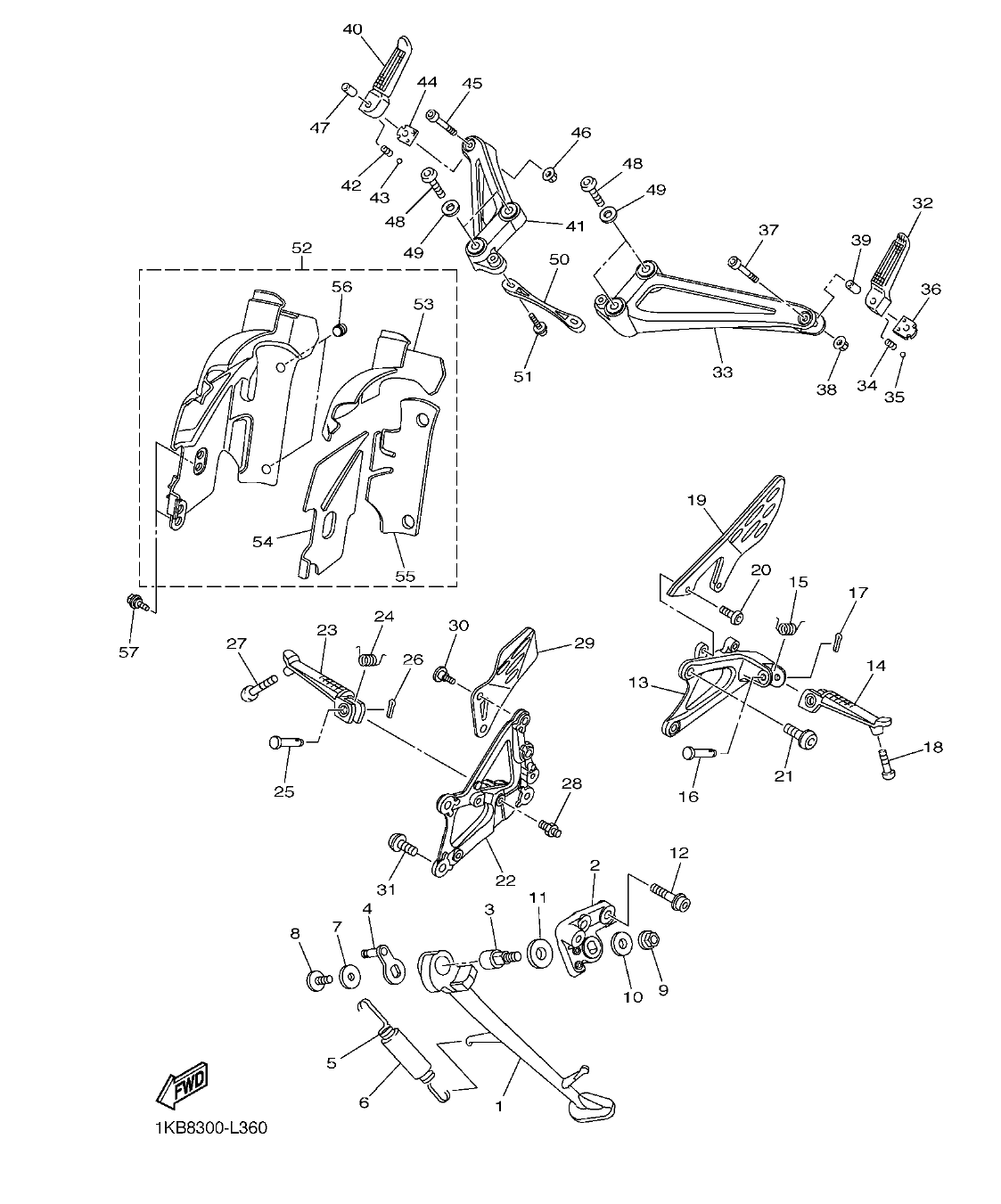

Section 36: STAND & FOOTREST (v2)
Model code: 1KBB
Parts list
Section 36
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
14B-27311-00
STAND, SIDE
|
1 | |
| 2 |
14B-27321-00
BRACKET, SIDE STAND
|
1 | |
| 3 |
14B-27351-00
GUIDE, SIDE STAND
|
1 | |
| 4 |
14B-27352-00
HOOK, SIDE STAND
|
1 | |
| 5 |
90506-18008
SPRING, TENSION
|
1 | |
| 6 |
90445-19002
HOSE (L60)
|
1 | |
| 7 |
90201-081R9
WASHER, PLATE
|
1 | |
| 8 |
90111-08073
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 9 |
95602-10200
NUT, U FLANGE
|
1 | |
| 10 |
90201-10035
WASHER, PLATE
|
1 | |
| 11 |
90201-146F9
WASHER, PLATE
|
1 | |
| 12 |
90110-10025
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 13 |
14B-27442-10
BRACKET 2
|
1 | |
| 14 |
1KB-27451-00
FOOTREST
|
1 | |
| 15 |
90508-18134
SPRING, TORSION
|
1 | |
| 16 |
90240-08084
PIN, CLEVIS
|
1 | |
| 17 |
91401-25015
PIN, COTTER
|
1 | |
| 18 |
90109-08174
BOLT
|
1 | |
| 19 |
14B-27445-10
PLATE 1
|
1 | |
| 20 |
90111-06003
BOLT,HEX. SOCKET BUTTON
|
2 | |
| 21 |
90109-085G6
BOLT
|
2 | |
| 22 |
14B-27443-10
BRACKET 3
|
1 | |
| 23 |
1KB-27461-00
FOOTREST
|
1 | |
| 24 |
90508-18135
SPRING, TORSION
|
1 |
4.47 AED
Check price & stock on WhatsApp
|
| 25 |
90240-08084
PIN, CLEVIS
|
1 | |
| 26 |
91401-25015
PIN, COTTER
|
1 | |
| 27 |
90109-08174
BOLT
|
1 | |
| 28 |
4C8-27813-00
PIN, PEDAL CRANK
|
1 | |
| 29 |
14B-27446-10
PLATE 2
|
1 | |
| 30 |
90109-066F0
BOLT
|
2 | |
| 31 |
90109-085G6
BOLT
|
2 | |
| 32 |
5JJ-27431-10
FOOTREST, REAR 1
|
1 | |
| 33 |
14B-2741L-10
BRACKET 4
|
1 | |
| 34 |
90501-12743
SPRING, COMPRESSION
|
1 |
6.70 AED
Check price & stock on WhatsApp
|
| 35 |
93501-04011
BALL
|
1 | |
| 36 |
5JJ-27437-01
WASHER, SPECIAL
|
1 |
12.66 AED
Check price & stock on WhatsApp
|
| 37 |
91312-06035
BOLT
|
1 | |
| 38 |
95602-06200
NUT, SELF-LOCKING
|
1 | |
| 39 |
90387-06697
COLLAR
|
1 |
17.88 AED
Check price & stock on WhatsApp
|
| 40 |
5JJ-27441-10
FOOTREST, REAR 2
|
1 | |
| 41 |
14B-2742L-10
BRACKET 5
|
1 | |
| 42 |
90501-12743
SPRING, COMPRESSION
|
1 |
6.70 AED
Check price & stock on WhatsApp
|
| 43 |
93501-04011
BALL
|
1 | |
| 44 |
5JJ-27437-01
WASHER, SPECIAL
|
1 |
12.66 AED
Check price & stock on WhatsApp
|
| 45 |
91312-06035
BOLT
|
1 | |
| 46 |
95602-06200
NUT, SELF-LOCKING
|
1 | |
| 47 |
90387-06697
COLLAR
|
1 |
17.88 AED
Check price & stock on WhatsApp
|
| 48 |
90111-08066
BOLT,HEX. SOCKET BUTTON
|
4 | |
| 49 |
13S-27417-00
WASHER, FOOTREST
|
4 | |
| 50 |
14B-27469-00
REINFORCEMENT 1
|
1 | |
| 51 |
90109-06031
BOLT
|
2 | |
| 52 |
14B-27490-00
PROTECTOR ASSY
|
1 | |
| 53 |
14B-2749A-00
.SEAT 3
|
1 | |
| 54 |
14B-2749B-00
.SEAT 4
|
1 | |
| 55 |
14B-2749D-00
.SEAT 6
|
1 | |
| 56 |
2D1-14737-00
.DAMPER, MUFFLER
|
2 | |
| 57 |
90109-06264
BOLT
|
2 |
