YZF-R1

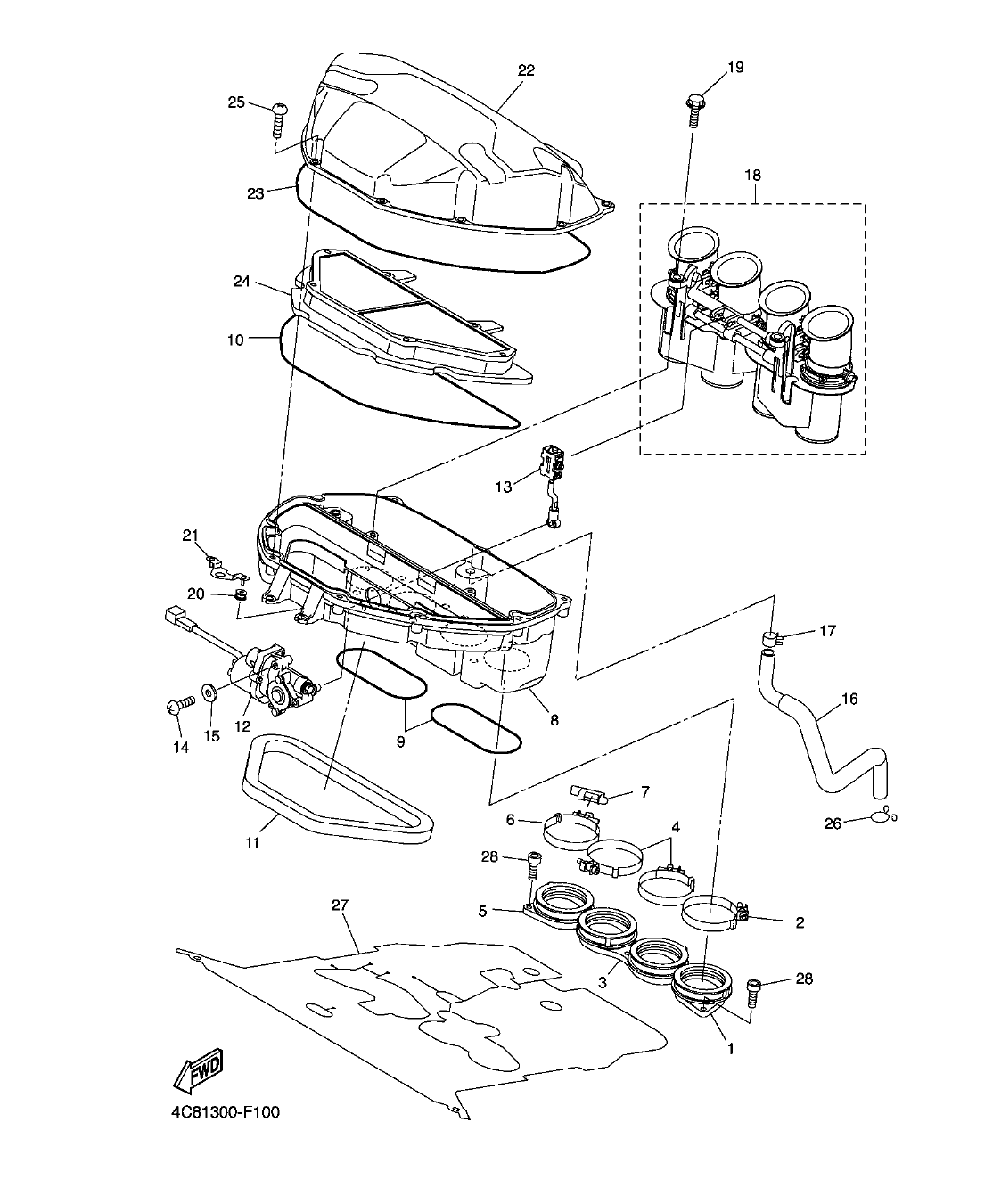

Section 10: INTAKE (v2)
Model code: 4C88
Parts list
Section 10
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-13595-00
JOINT
|
1 | |
| 2 |
90450-62002
HOSE CLAMP ASSY
|
1 | |
| 3 |
4C8-13596-00
JOINT, CARBURETOR 2
|
1 | |
| 4 |
90450-62002
HOSE CLAMP ASSY
|
2 | |
| 5 |
4C8-13598-00
JOINT, CARBURETOR 4
|
1 | |
| 6 |
90450-62002
HOSE CLAMP ASSY
|
1 | |
| 7 |
2C0-13881-00
COVER 1
|
1 | |
| 8 |
4C8-14411-00
CASE, AIR CLEANER 1
|
1 | |
| 9 |
4C8-14462-00
SEAL
|
2 | |
| 10 |
4C8-14457-00
SEAL
|
1 | |
| 11 |
4C8-14467-00
SEAL
|
1 | |
| 12 |
4C8-85850-00
GEARED MOTOR COMP.
|
1 | |
| 13 |
4C8-14490-00
SHAFT ASSY
|
1 | |
| 14 |
98502-05035
SCREW, PAN HEAD
|
3 | |
| 15 |
92902-05600
WASHER, PLATE
|
3 | |
| 16 |
4C8-15393-00
PIPE, BREATHER 2
|
1 | |
| 17 |
90467-140A5
CLIP
|
1 | |
| 18 |
4C8-1440B-00
JOINT ASSY
|
1 | |
| 19 |
90159-05035
SCREW, WITH WASHER
|
2 | |
| 20 |
90480-08264
GROMMET
|
2 | |
| 21 |
4C8-14498-00
STAY 1
|
1 | |
| 22 |
4C8-14421-00
CASE, AIR CLEANER 2
|
1 | |
| 23 |
4C8-14452-00
SEAL
|
1 | |
| 24 |
4C8-14451-00
ELEMENT, AIR CLEANER
|
1 | |
| 25 |
98902-05020
SCREW, BIND
|
9 | |
| 26 |
90467-14015
CLIP
|
1 | |
| 27 |
4C8-12682-00
PROTECTOR, HEAT
|
1 | |
| 28 |
91312-06016
BOLT
|
7 |
