YZF-R1
Section 16: STARTER (v2)
Model code: 4C88

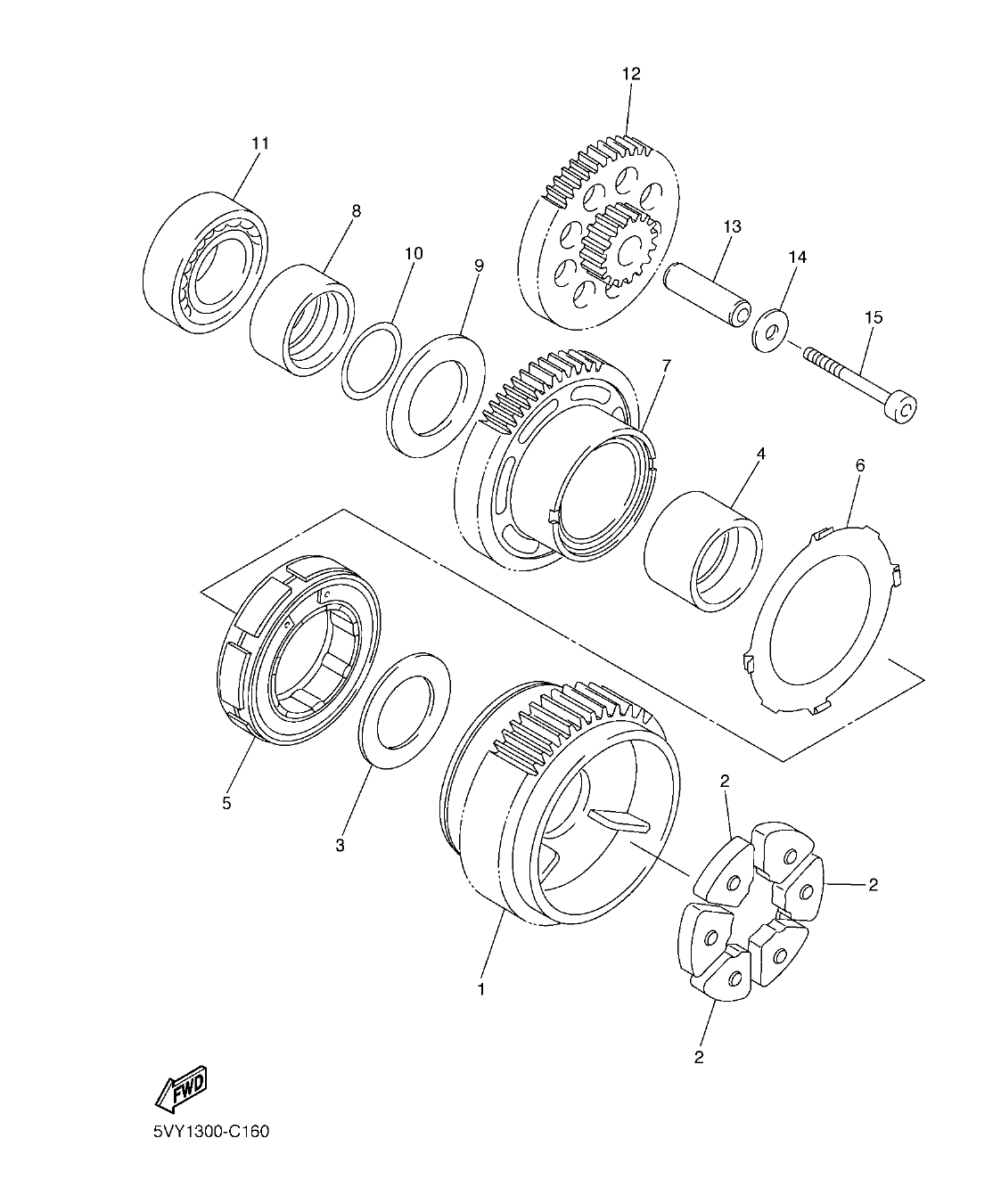

Parts list
Section 16
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
2D1-11537-00
GEAR, DRIVEN
|
1 | |
| 2 |
5VY-16155-00
ABSORBER 1
|
3 | |
| 3 |
90201-20016
WASHER, PLATE
|
1 | |
| 4 |
5VY-11478-00
COLLAR
|
1 | |
| 5 |
5VY-15570-00
STARTER CLUTCH ASSY
|
1 | |
| 6 |
5VY-15586-00
PLATE, STARTER CLUTCH ASSY
|
1 | |
| 7 |
5VY-15515-00
GEAR 3
|
1 | |
| 8 |
5VY-11445-00
SPACER
|
1 | |
| 9 |
90201-20017
WASHER, PLATE
|
1 | |
| 10 |
93210-18397
O-RING
|
1 | |
| 11 |
93306-20230
BEARING
|
1 | |
| 12 |
5VY-15517-00
GEAR, IDLER 2
|
1 | |
| 13 |
5VY-15521-00
SHAFT 1
|
1 | |
| 14 |
90201-06589
WASHER, PLATE
|
1 | |
| 15 |
90110-06176
BOLT, HEXAGON SOCKET HEAD
|
1 |
