YZF-R1

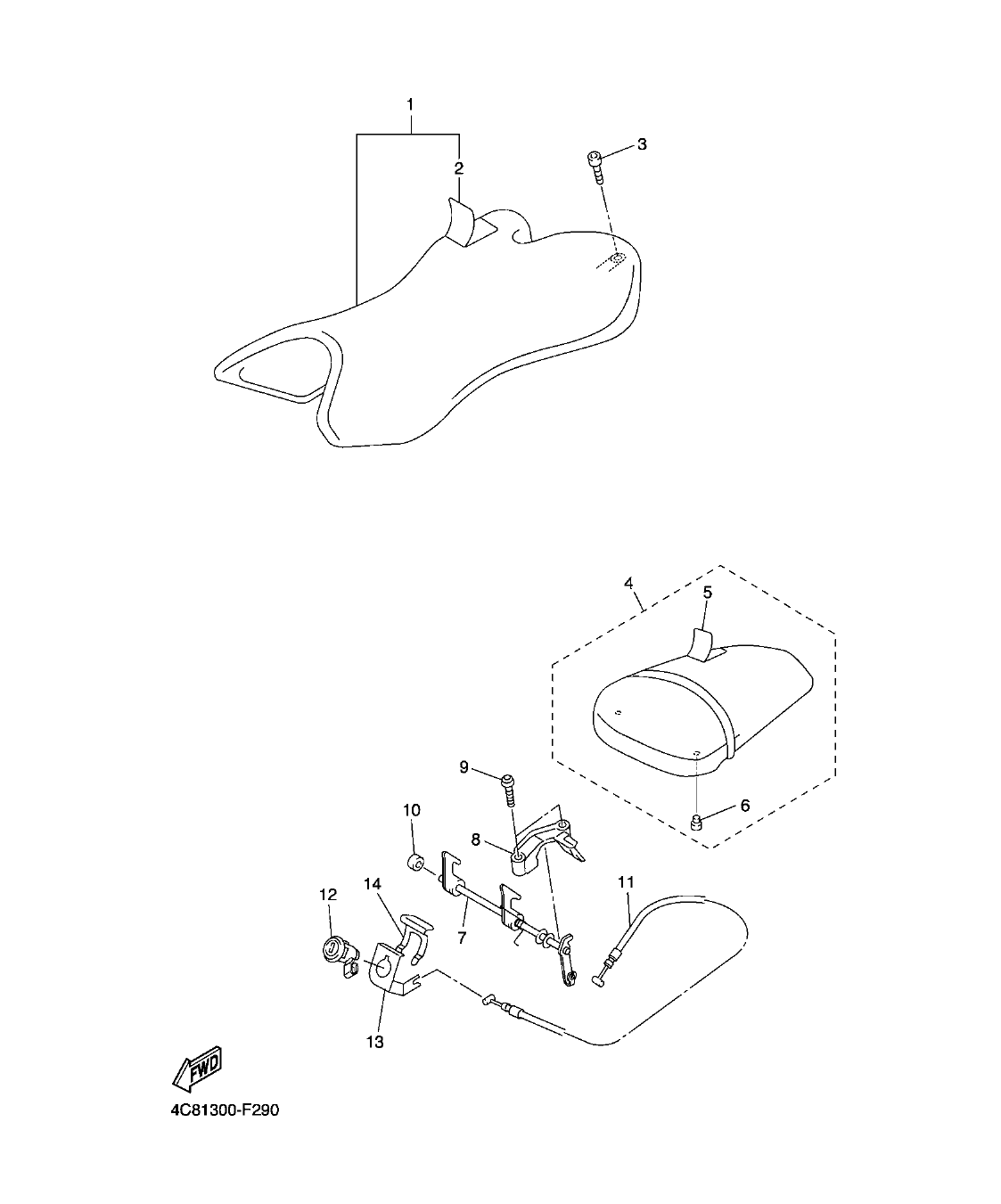

Section 29: SEAT (v2)
Model code: 4C88
Parts list
Section 29
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-24710-10
SINGLE SEAT ASSY
UR FOR BWC1
|
1 | |
| 1 |
4C8-24710-00
SINGLE SEAT ASSY
UR FOR DPBMC,DNMG
|
1 | |
| 2 |
4C8-24711-00
.COVER, SINGLE SEAT
UR FOR DPBMC,DNMG
|
1 | |
| 2 |
4C8-24711-10
.COVER, SINGLE SEAT
UR FOR BWC1
|
1 | |
| 3 |
90110-06258
BOLT, HEXAGON SOCKET HEAD
|
2 |
3.72 AED
Check price & stock on WhatsApp
|
| 4 |
4C8-24750-00
TANDEM SEAT ASSY
UR FOR DPBMC,DNMG
|
1 | |
| 4 |
4C8-24750-10
TANDEM SEAT ASSY
UR FOR BWC1
|
1 | |
| 5 |
4C8-24751-00
.COVER, TANDEM SEAT
UR FOR DPBMC,DNMG
|
1 | |
| 5 |
4C8-24751-10
.COVER, TANDEM SEAT
UR FOR BWC1
|
1 | |
| 6 |
5SL-24723-00
.DAMPER, SEAT
|
2 | |
| 7 |
5VY-24780-01
SEAT LOCK ASSY
|
1 | |
| 8 |
5VY-24792-00
PLATE
|
1 | |
| 9 |
92017-06025
BOLT, BUTTON HEAD
|
2 | |
| 10 |
5VY-24729-00
SPACER 2
|
1 | |
| 11 |
5VY-2478E-00
CABLE, SEAT LOCK
|
1 | |
| 12 |
5VY-W2470-00
ROTOR SET
|
1 | |
| 13 |
5VY-2117K-01
STAY, LOCK
|
1 | |
| 14 |
5VY-2176V-00
SPRING, LOCK 2
|
1 |
