YZF-R1

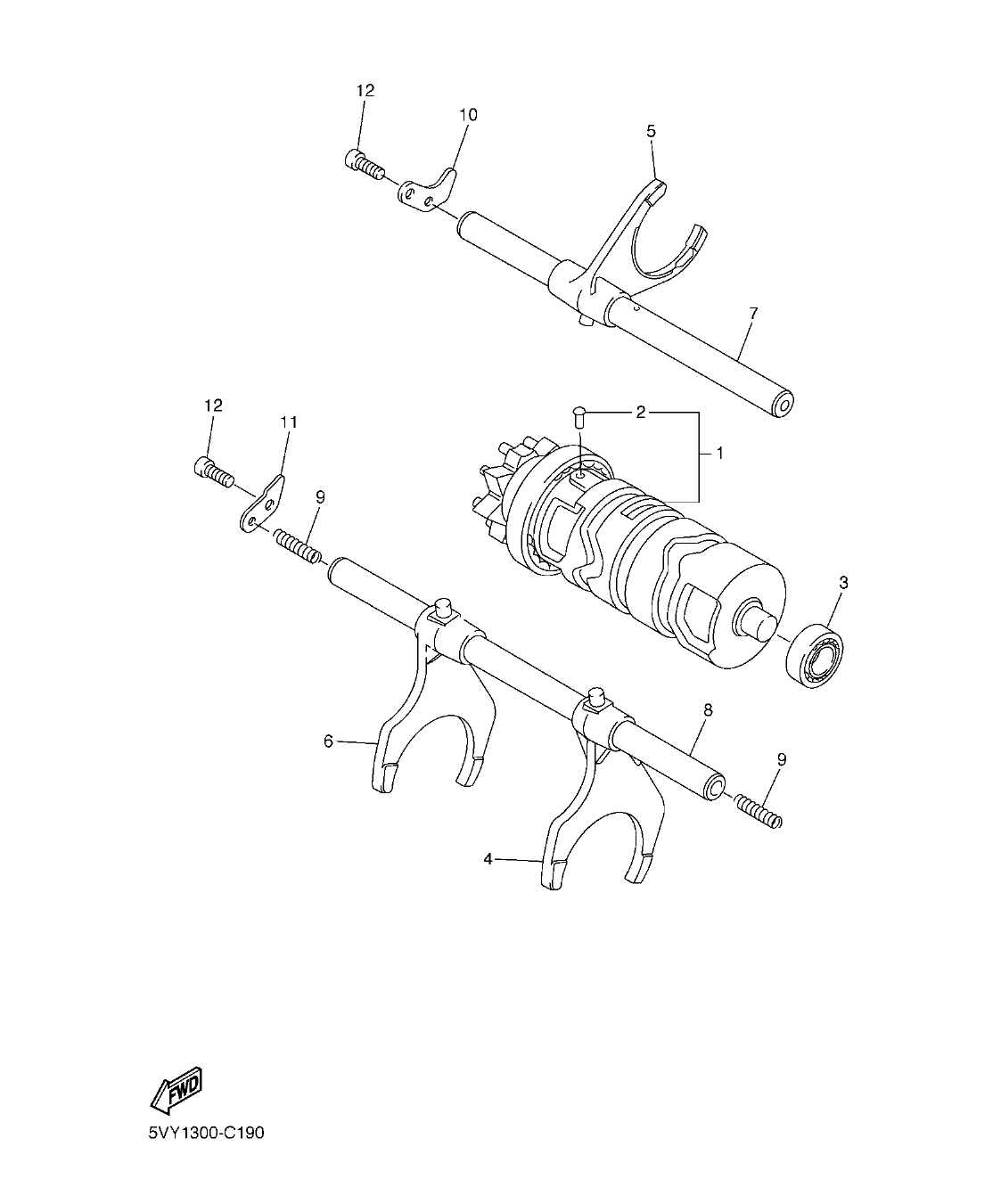

Section 19: SHIFT CAM & FORK (v2)
Model code: 4C88
Parts list
Section 19
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5VY-18540-00
SHIFT CAM ASSY
|
1 | |
| 2 |
136-18542-00
.POINT, NEUTRAL
|
1 | |
| 3 |
93306-00106
BEARING
|
1 | |
| 4 |
5VY-18511-01
FORK, SHIFT 1
|
1 | |
| 5 |
2D1-18512-00
FORK, SHIFT 2
|
1 | |
| 6 |
5VY-18513-01
FORK, SHIFT 3
|
1 | |
| 7 |
5VY-18531-00
BAR, SHIFT FORK GUIDE 1
|
1 | |
| 8 |
5VY-18535-00
BAR, SHIFT FORK GUIDE 2
|
1 | |
| 9 |
90501-064L1
SPRING, COMPRESSION
|
2 | |
| 10 |
5VY-18536-00
STOPPER, SHIFT BAR
|
1 | |
| 11 |
5VY-18562-00
PLATE, STOPPER 2
|
1 | |
| 12 |
90110-06182
BOLT, HEXAGON SOCKET HEAD
|
2 |
