YZF-R1

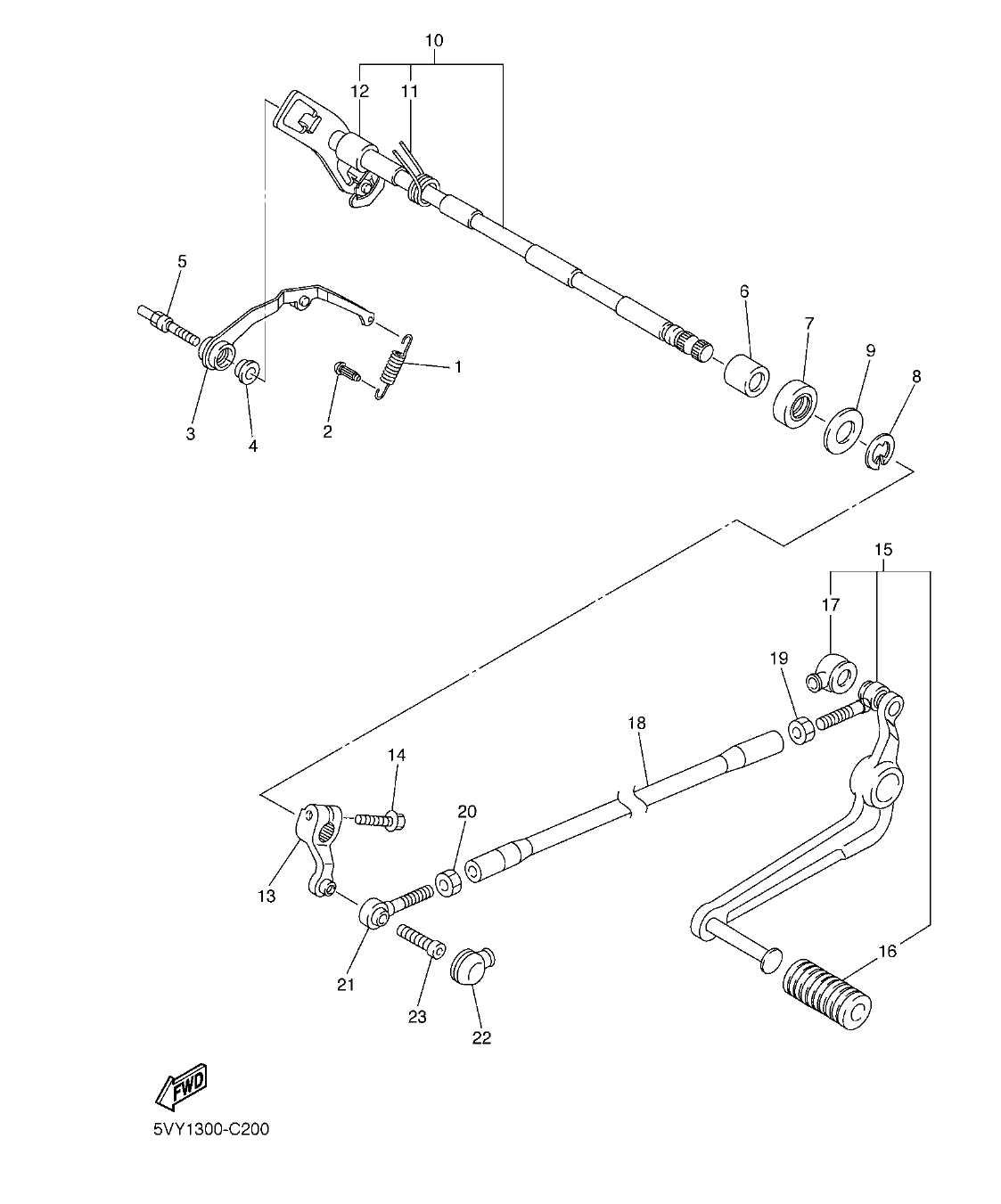

Section 20: SHIFT SHAFT (v2)
Model code: 4C88
Parts list
Section 20
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5VY-18144-00
HANGER, SPRING
|
1 | |
| 2 |
132-16346-00
HOOK, SPRING
|
1 | |
| 3 |
5VY-18140-00
STOPPER LEVER ASSY
|
1 | |
| 4 |
90387-0804S
COLLAR
|
1 | |
| 5 |
5VY-18127-10
STOPPER, SCREW
|
1 | |
| 6 |
93317-11295
BEARING
|
2 | |
| 7 |
93102-12106
OIL SEAL (SD 12-22-5 HS)
|
1 | |
| 8 |
99002-10600
CIRCLIP
|
1 | |
| 9 |
90201-12575
WASHER, PLATE
|
2 | |
| 10 |
4C8-18101-00
SHIFT SHAFT ASSY
|
1 | |
| 11 |
90508-32020
.SPRING, TORSION
|
1 | |
| 12 |
90387-1211D
.COLLAR
|
1 | |
| 13 |
5VY-18112-00
ARM, SHIFT
|
1 | |
| 14 |
95022-06020
BOLT, FLANGE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 15 |
5VY-18110-00
SHIFT PEDAL ASSY
|
1 | |
| 16 |
5EB-18113-00
.COVER, SHIFT PEDAL
|
1 |
16.39 AED
Check price & stock on WhatsApp
|
| 17 |
4XV-18154-00
.COVER, DUST
|
1 | |
| 18 |
5VY-18115-00
ROD, SHIFT
|
1 | |
| 19 |
90170-06228
NUT(COUNTER CLOCKWISE)
|
1 | |
| 20 |
95304-06700
NUT
|
1 | |
| 21 |
5LV-18116-00
JOINT, ROD 1
|
1 | |
| 22 |
4XV-18154-00
COVER, DUST
|
1 | |
| 23 |
90111-06019
BOLT,HEX. SOCKET BUTTON
|
1 |
