YZF-R1

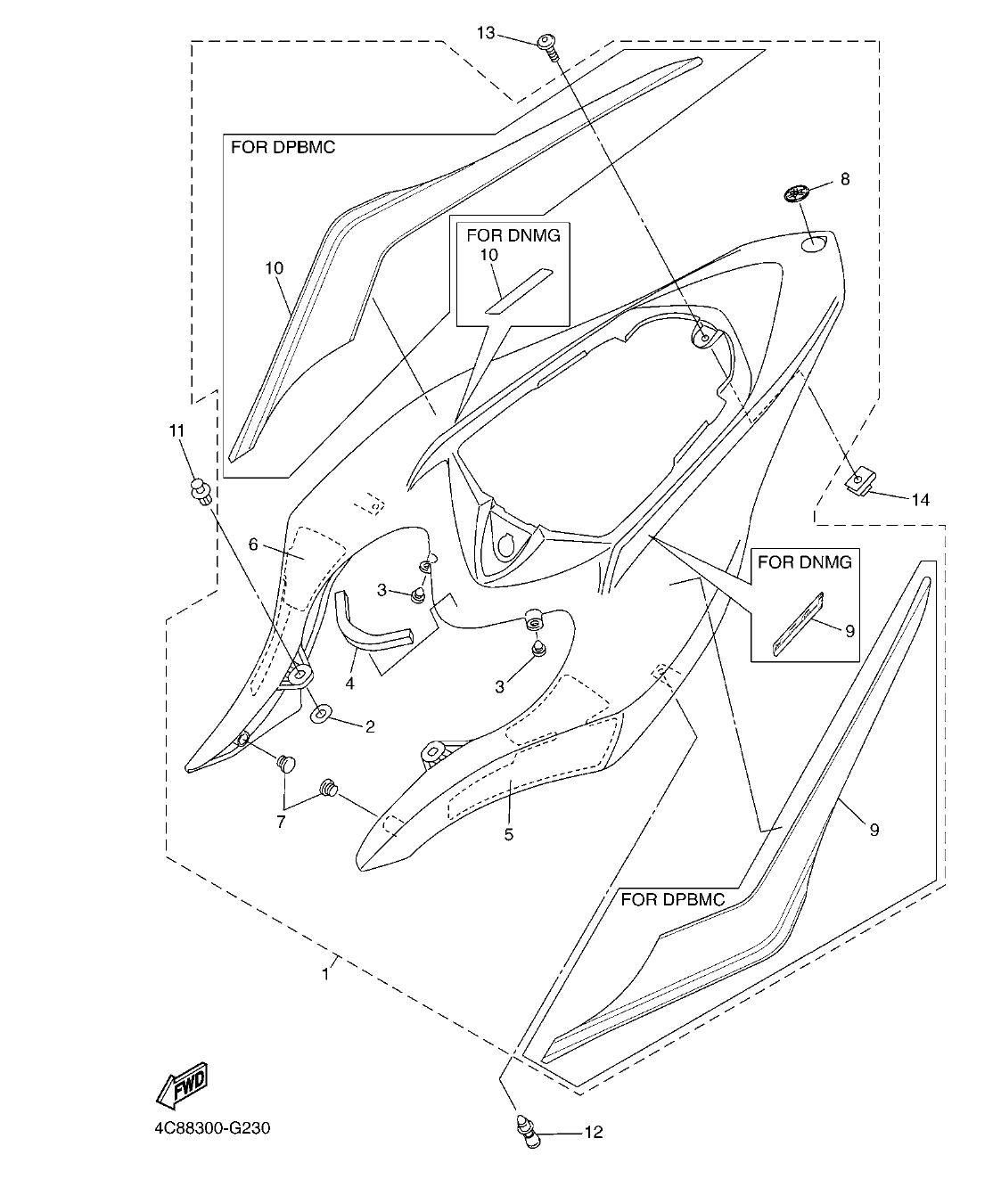

Section 23: SIDE COVER (v2)
Model code: 4C88
Parts list
Section 23
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4C8-Y2171-10-P0
COVER, SIDE 1
UR FOR DPBMC
|
1 | |
| 1 |
4C8-Y2171-20-P5
COVER, SIDE 1
UR FOR DNMG
|
1 | |
| 1 |
4C8-21710-00-P2
SIDE COVER ASSY 1
UR FOR BWC1
|
1 | |
| 2 |
5PW-2174X-00
.DAMPER
|
2 | |
| 3 |
90338-06018
.PLUG
|
2 | |
| 4 |
4C8-21747-00
.DAMPER
|
1 | |
| 5 |
4C8-2172P-00
.SEAT
|
1 | |
| 6 |
4C8-2173P-00
.SEAT
|
1 | |
| 7 |
90338-08236
.PLUG
|
2 | |
| 8 |
4KN-2836B-00
.TUNING FORK MARK
|
1 | |
| 9 |
4C8-21737-00
.EMBLEM
UR FOR DNMG
|
1 | |
| 9 |
4C8-2173E-10
.GRAPHIC 1
UR FOR DPBMC
|
1 | |
| 10 |
4C8-21737-00
.EMBLEM
UR FOR DNMG
|
1 | |
| 10 |
4C8-2173F-10
.GRAPHIC 2
UR FOR DPBMC
|
1 | |
| 11 |
90269-07076
RIVET
|
2 | |
| 12 |
90269-06011
RIVET
|
2 | |
| 13 |
90111-05007
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 14 |
90183-05076
NUT, SPRING
|
1 |
