YZF-R1

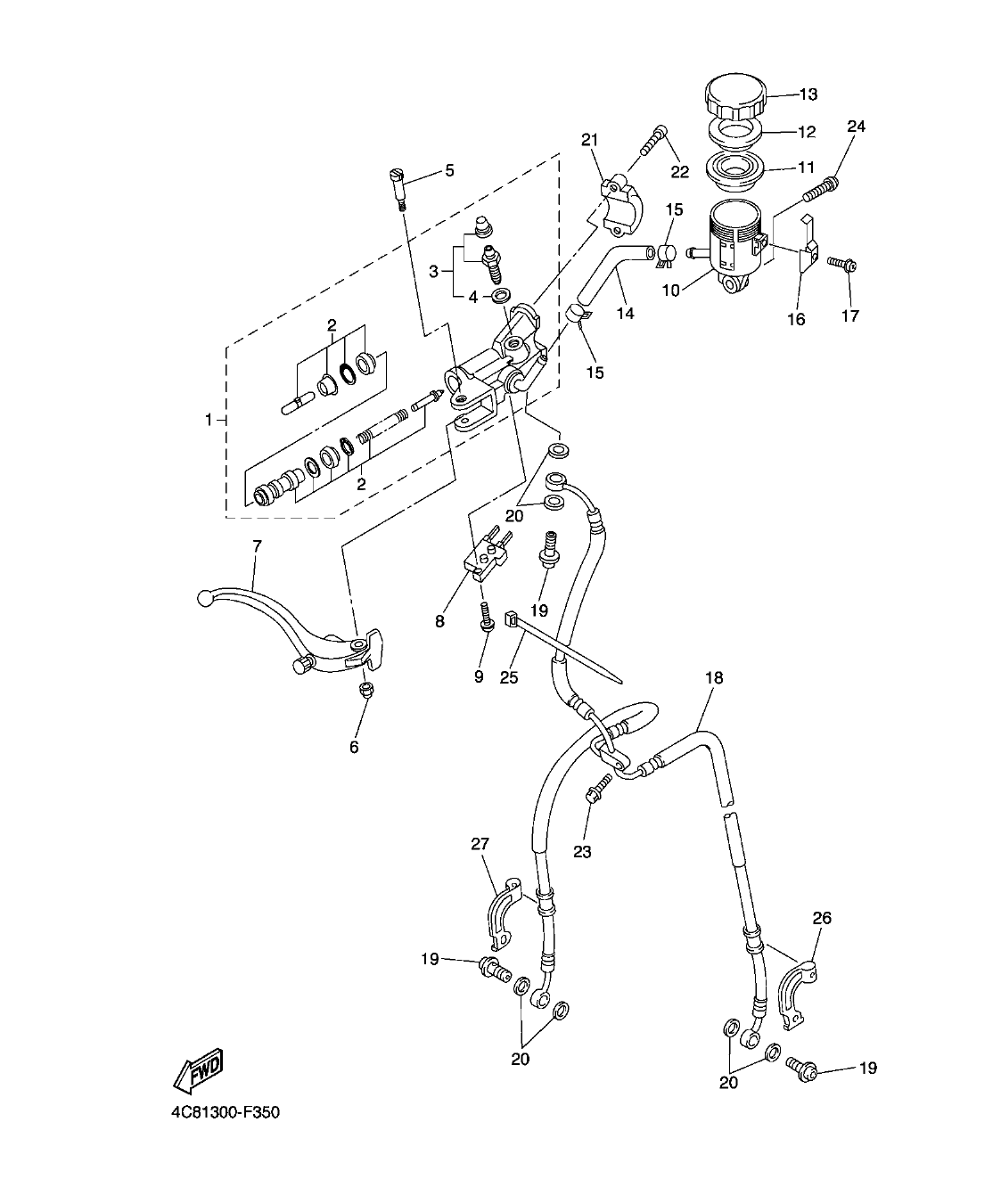

Section 35: FRONT MASTER CYLINDER (v2)
Model code: 4C88
Parts list
Section 35
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5SL-W2587-00
MASTER CYLINDER SUB ASSY
|
1 | |
| 2 |
5VY-W0041-00
.CYLINDER KIT, MASTER
|
1 | |
| 3 |
5VY-W0048-00
.BLEED SCREW KIT
|
1 | |
| 4 |
5VY-25975-00
..SEAL 1
|
1 | |
| 5 |
5VY-2589F-01
BOLT, LEVER
|
1 | |
| 6 |
5VS-2586F-00
NUT, COVER
|
1 | |
| 7 |
5SL-83922-10
LEVER 2
|
1 | |
| 8 |
4HM-83980-00
FRONT STOP SWITCH ASSY
|
1 | |
| 9 |
5VS-2585H-00
SCREW,SET
|
1 | |
| 10 |
5SL-25894-20
TANK, RESERVOIR
|
1 | |
| 11 |
5VY-25854-00
DIAPHRAGM, RESERVOIR
|
1 |
17.85 AED
Check price & stock on WhatsApp
|
| 12 |
5VY-25855-00
BUSH,DIAPHRAGM
|
1 | |
| 13 |
5VY-25852-00
CAP, RESERVOIR
|
1 | |
| 14 |
5VY-25895-10
HOSE, RESERVOIR
|
1 | |
| 15 |
90467-120A3
CLIP
|
2 | |
| 16 |
5VY-2589G-00
HOLDER
|
1 |
8.94 AED
Check price & stock on WhatsApp
|
| 17 |
5VY-2589H-00
SCREW
|
1 | |
| 18 |
4C8-25872-00
HOSE, BRAKE 1
|
1 | |
| 19 |
90401-10172
BOLT, UNION
|
3 | |
| 20 |
90430-10005
GASKET
|
6 |
2.86 AED
Check price & stock on WhatsApp
|
| 21 |
5VS-25867-00
BRACKET, MASTER CYLINDER
|
1 | |
| 22 |
5VS-26332-00
BOLT
|
2 | |
| 23 |
90105-06041
BOLT, FLANGE
|
1 | |
| 24 |
90111-05026
BOLT,HEX. SOCKET BUTTON
|
1 | |
| 25 |
3MA-82591-00
BAND
|
2 | |
| 26 |
5VY-25875-00
HOLDER, BRAKE HOSE 1
|
1 | |
| 27 |
5VY-25876-00
HOLDER, BRAKE HOSE 2
|
1 |
