bf8am
Section E-9: CAMSHAFT/VALVE (v2)

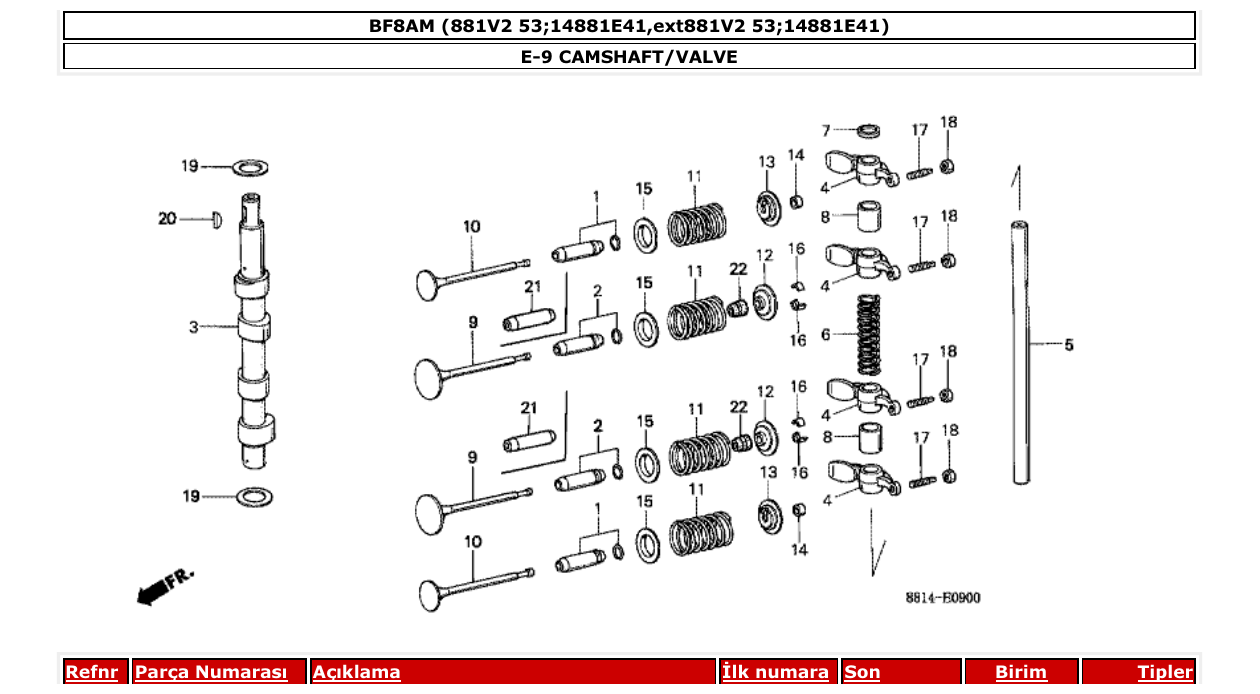

Diagram for section E-9: CAMSHAFT/VALVE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
12021921000
GUIDE, VALVE
|
2 | Ask on WhatsApp |
| 1 |
12205881305
GUIDE, EX. VALVE (OS)
|
2 | Ask on WhatsApp |
| 2 |
12023921000
GUIDE, IN. VALVE
|
2 | Ask on WhatsApp |
| 3 |
14100881840
CAMSHAFT COMP.
|
1 | Ask on WhatsApp |
| 4 |
14431881000
ARM, VALVE ROCKER
|
4 | Ask on WhatsApp |
| 5 |
14451881000
SHAFT, VALVE ROCKER ARM
|
1 | Ask on WhatsApp |
| 6 |
14481881000
SPRING, VALVE ROCKER ARM
|
1 | Ask on WhatsApp |
| 7 |
14482881000
COLLAR A, VALVE ROCKER ARM
|
1 | Ask on WhatsApp |
| 8 |
14483881000
COLLAR B, VALVE ROCKER ARM
|
2 | Ask on WhatsApp |
| 9 |
14711881000
VALVE, IN.
|
2 | Ask on WhatsApp |
| 9 |
14711881C40
VALVE, IN.
|
2 | Ask on WhatsApp |
| 10 |
14721881000
VALVE, EX.
|
2 | Ask on WhatsApp |
| 11 |
14753921010
SPRING, VALVE
|
4 | Ask on WhatsApp |
| 12 |
14771881000
RETAINER, VALVE SPRING
|
2 | Ask on WhatsApp |
| 13 |
14771935810
RETAINER, VALVE SPRING
|
2 | Ask on WhatsApp |
| 14 |
14772881000
ROTATOR, VALVE
|
2 | Ask on WhatsApp |
| 15 |
14775921000
SEAT, VALVE SPRING
|
4 | Ask on WhatsApp |
| 16 |
14781001004
COTTER, VALVE
|
4 | Ask on WhatsApp |
| 16 |
14781001010
COTTER, VALVE
|
4 | Ask on WhatsApp |
| 16 |
14781235000
COTTER, VALVE
|
4 | Ask on WhatsApp |
| 17 |
90012333000
SCREW, TAPPET ADJUSTING
|
4 | Ask on WhatsApp |
| 18 |
90206001000
NUT, TAPPET ADJUSTING
|
4 | Ask on WhatsApp |
| 19 |
90453235000
WASHER, THRUST, 16MM
|
2 | Ask on WhatsApp |
| 20 |
90741921000
KEY, CAM PULLEY, 12X16X3
|
1 | Ask on WhatsApp |
| 21 |
12204881305
GUIDE, IN. VALVE (OS)
|
2 | Ask on WhatsApp |
| 22 |
12209422005
SEAL, VALVE STEM
|
2 | Ask on WhatsApp |
