Section E-19: FLYWHEEL/IGNITION COIL (v2)

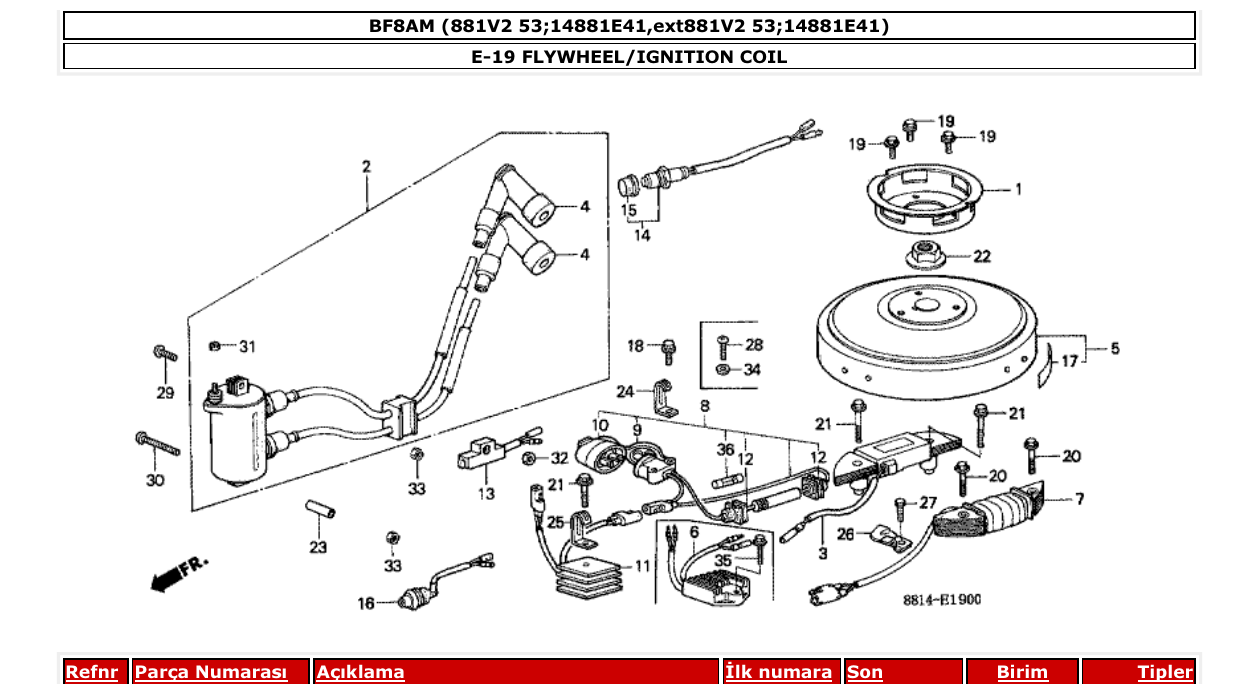

Diagram for section E-19: FLYWHEEL/IGNITION COIL.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
28570881003
PULLEY COMP., STARTER
|
1 | Ask on WhatsApp |
| 1 |
28571881000
PULLEY, STARTER
|
1 | Ask on WhatsApp |
| 2 |
30500881732
COIL ASSY., C.D.I. IGNITION
|
1 | Ask on WhatsApp |
| 3 |
30540881732
COIL ASSY., EXCITER
|
1 | Ask on WhatsApp |
| 4 |
30700881010
CAP ASSY., NOISE SUPPRESSOR
|
2 | Ask on WhatsApp |
| 5 |
31100881000ZA
FLYWHEEL COMP. *R8 *
|
1 | Ask on WhatsApp |
| 5 |
31100881010ZC
FLYWHEEL COMP. *TBLACK *
|
1 | Ask on WhatsApp |
| 6 |
31620881A02
RECTIFIER ASSY., REGULATOR
|
1 | Ask on WhatsApp |
| 7 |
31630881A01
COIL ASSY., CHARGE (DC12V/55W)
|
1 | Ask on WhatsApp |
| 8 |
31650881A01
RECEPTACLE ASSY., CHARGE
|
1 | Ask on WhatsApp |
| 9 |
31651881014
CONSENT
|
1 | Ask on WhatsApp |
| 9 |
31651881A01
CONSENT
|
1 | Ask on WhatsApp |
| 10 |
31652881014
PLUG, CONSENT
|
1 | Ask on WhatsApp |
| 12 |
32653HA8680
GROMMET, FUSE HOLDER
|
2 | Ask on WhatsApp |
| 13 |
35100881003
SWITCH ASSY., NEUTRAL
|
1 | Ask on WhatsApp |
| 16 |
37210ZV4003
LAMP ASSY., INDICATOR
|
1 | Ask on WhatsApp |
| 17 |
87541896000
MARK, FLYWHEEL CAUTION
|
1 | Ask on WhatsApp |
| 18 |
90014ZV1000
BOLT, FLANGE, 5X22
|
2 | Ask on WhatsApp |
| 19 |
90016920000
BOLT, FLANGE, 6X12
|
3 | Ask on WhatsApp |
| 20 |
90123881000
BOLT, FLANGE, 6X28
|
2 | Ask on WhatsApp |
| 21 |
90124881000
BOLT, FLANGE, 6X35
|
2 | Ask on WhatsApp |
| 22 |
90201881000
NUT, SPECIAL, 14MM
|
1 | Ask on WhatsApp |
| 23 |
90742881000
COLLAR, DISTANCE
|
1 | Ask on WhatsApp |
| 24 |
91401ZV4000
CLIP, TUBE
|
1 | Ask on WhatsApp |
| 25 |
91403881000
CLIP B, CORD
|
1 | Ask on WhatsApp |
| 26 |
91404881000
CLIP, WIRE
|
1 | Ask on WhatsApp |
| 27 |
93500060120B
SCREW, PAN, 6X12
|
1 | Ask on WhatsApp |
| 29 |
93500060280B
SCREW, PAN, 6X28
|
1 | Ask on WhatsApp |
| 30 |
93500060500B
SCREW, PAN, 6X50
|
1 | Ask on WhatsApp |
| 31 |
94001053300S
NUT, HEX., 5MM
|
1 | Ask on WhatsApp |
| 32 |
94001054900S
NUT, HEX., 5MM
|
1 | Ask on WhatsApp |
| 33 |
94001060200S
NUT, HEX., 6MM
|
2 | Ask on WhatsApp |
| 35 |
957010602502
BOLT, FLANGE, 6X25
|
1 | Ask on WhatsApp |
| 36 |
9820010500
FUSE A (5A)
|
1 | Ask on WhatsApp |
