Section E-4: INLET MANIFOLD/C.D.I. UNIT (v2)

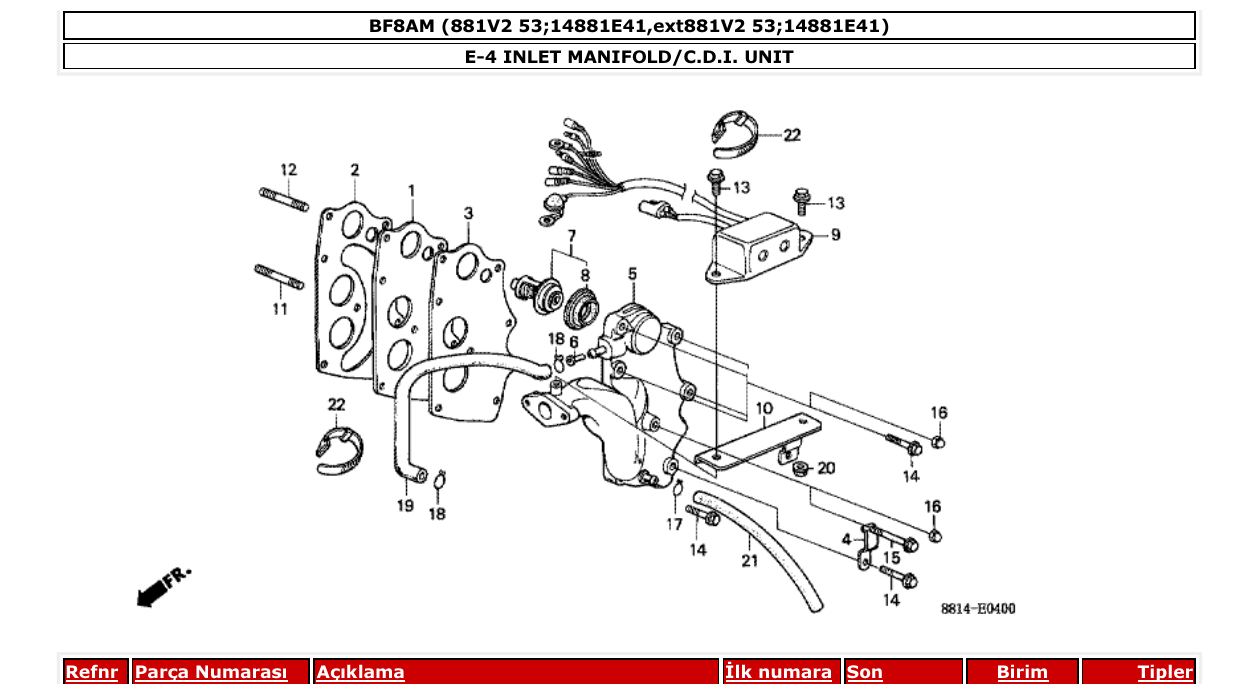

Diagram for section E-4: INLET MANIFOLD/C.D.I. UNIT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
12515881000
PLATE, EX. CHAMBER
|
1 | Ask on WhatsApp |
| 2 |
12516881850
GASKET, EX. CHAMBER
|
1 | Ask on WhatsApp |
| 3 |
12517881850
PACKING, EX. CHAMBER
|
1 | Ask on WhatsApp |
| 4 |
91403881000
CLIP B, CORD
|
1 | Ask on WhatsApp |
| 5 |
17100881740ZA
MANIFOLD COMP., INTAKE *NH8 *
|
1 | Ask on WhatsApp |
| 7 |
19300881761
THERMOSTAT ASSY.
|
1 | Ask on WhatsApp |
| 8 |
19302921003
RUBBER, THERMOSTAT
|
1 | Ask on WhatsApp |
| 9 |
30580881A01
C.D.I. UNIT
|
1 | Ask on WhatsApp |
| 10 |
30586881010
STAY, C.D.I. UNIT
|
1 | Ask on WhatsApp |
| 11 |
90005881741
BOLT, STUD, 6X48
|
1 | Ask on WhatsApp |
| 12 |
90007881741
BOLT, STUD, 6X36
|
6 | Ask on WhatsApp |
| 13 |
90016920000
BOLT, FLANGE, 6X12
|
2 | Ask on WhatsApp |
| 16 |
90202ZV0000
NUT, CAP, 6MM
|
7 | Ask on WhatsApp |
| 17 |
90602921000
CLIP, TUBE (B8)
|
1 | Ask on WhatsApp |
| 18 |
90604881000
CLIP, TUBE (B12)
|
2 | Ask on WhatsApp |
| 19 |
90807881000
TUBE, BYPASS
|
1 | Ask on WhatsApp |
| 20 |
94001060200S
NUT, HEX., 6MM
|
1 | Ask on WhatsApp |
| 21 |
950055025030
TUBE, 5X250 (95005-50001-30M)
|
1 | Ask on WhatsApp |
| 22 |
9501462100
BAND B1, WIRE
|
2 | Ask on WhatsApp |
