bf8am
Section F-4: WATER PUMP/VERTICAL SHAFT (v2)

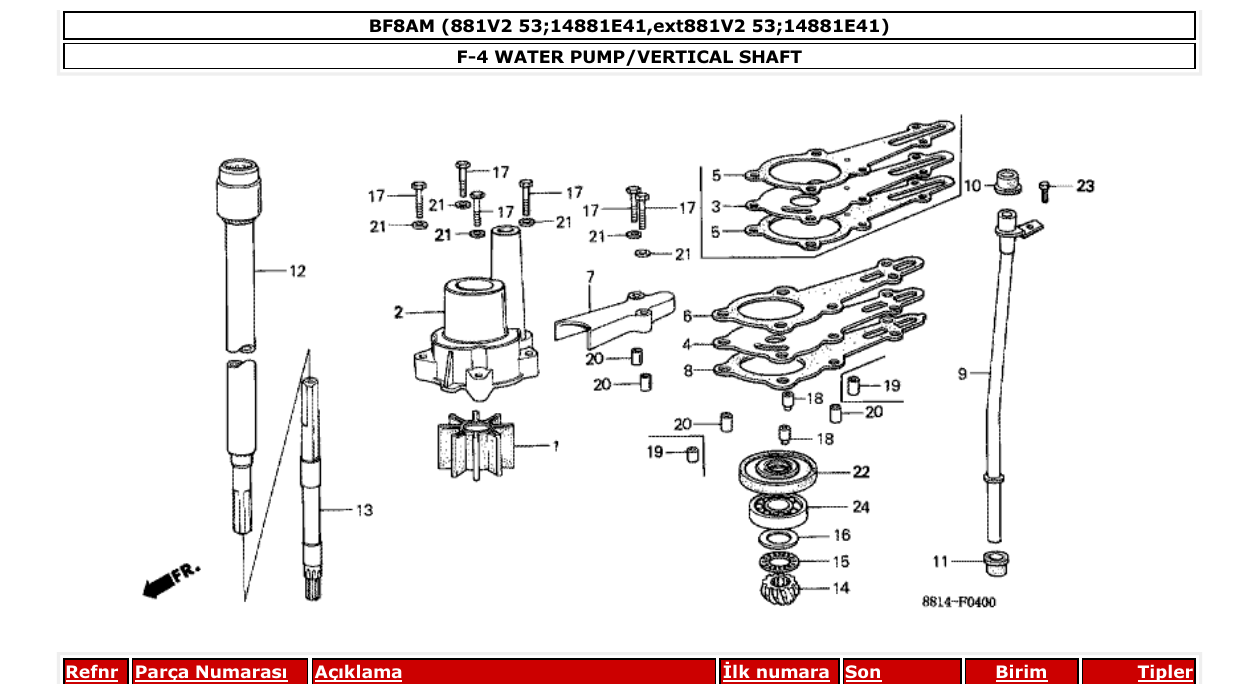

Diagram for section F-4: WATER PUMP/VERTICAL SHAFT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
19210881A01
IMPELLER, PUMP
|
1 | Ask on WhatsApp |
| 1 |
19210881A02
IMPELLER, PUMP
|
1 | Ask on WhatsApp |
| 2 |
19220881840
HOUSING COMP., IMPELLER
|
1 | Ask on WhatsApp |
| 4 |
19231881840
COVER, IMPELLER
|
1 | Ask on WhatsApp |
| 6 |
19232881850
GASKET A, IMPELLER
|
1 | Ask on WhatsApp |
| 7 |
19233881000
HOLDER, IMPELLER COVER
|
1 | Ask on WhatsApp |
| 8 |
19234881850
GASKET B, IMPELLER
|
1 | Ask on WhatsApp |
| 9 |
19251881702
TUBE COMP., WATER (L)
|
1 | Ask on WhatsApp |
| 10 |
19252881000
RING, WATER TUBE SEAL
|
1 | Ask on WhatsApp |
| 11 |
19252921020
RING, SEAL
|
1 | Ask on WhatsApp |
| 12 |
41110881941
SHAFT COMP., VERTICAL (L)
|
1 | Ask on WhatsApp |
| 13 |
41121881020
SHAFT, PINION
|
1 | Ask on WhatsApp |
| 13 |
41121881030
SHAFT, PINION
|
1 | Ask on WhatsApp |
| 14 |
41131881000
PINION, BEVEL
|
1 | Ask on WhatsApp |
| 15 |
41132935003
BEARING, THRUST, 15MM
|
1 | Ask on WhatsApp |
| 16 |
41135935003
WASHER A, THRUST BEARING (2.00MM)
|
1 | Ask on WhatsApp |
| 16 |
41136935003
WASHER B, THRUST BEARING (2.05MM)
|
1 | Ask on WhatsApp |
| 16 |
41137935003
WASHER C, THRUST BEARING (2.10MM)
|
1 | Ask on WhatsApp |
| 17 |
90108881000
BOLT, HEX., 6X28
|
6 | Ask on WhatsApp |
| 18 |
90111881840
COLLAR B, DISTANCE
|
2 | Ask on WhatsApp |
| 20 |
90112881840
COLLAR A, DISTANCE
|
4 | Ask on WhatsApp |
| 21 |
90504921010
WASHER, PLAIN, 6MM
|
6 | Ask on WhatsApp |
| 22 |
91252935004
WATER SEAL, 15MM (NOK)
|
1 | Ask on WhatsApp |
| 23 |
92000060124J
BOLT, HEX., 6X12
|
1 | Ask on WhatsApp |
| 24 |
961006302000
BEARING, RADIAL BALL,
|
1 | Ask on WhatsApp |
