Section F-6: FUEL TANK/SUB TANK (1) (v2)

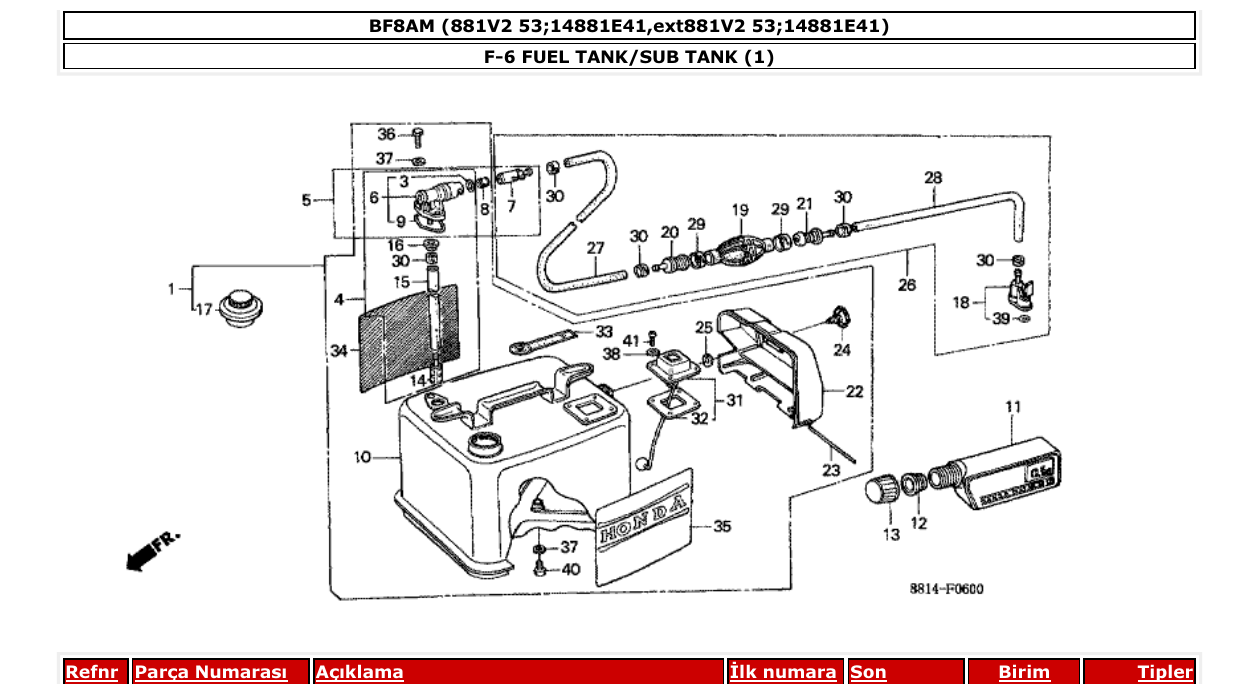

bf8am – section F-6 FUEL TANK/SUB TANK (1) parts diagram

Diagram for section F-6: FUEL TANK/SUB TANK (1).

Parts list for bf8am section F-6 FUEL TANK/SUB TANK (1)
Ref Part No. Qty Buy
3
16075935006
O-RING
 1 Ask on WhatsApp
4
16900881010
JOINT COMP. A, FUEL
 1 Ask on WhatsApp
6
16951935006
JOINT A, FUEL CONSENT
 1 Ask on WhatsApp
7
16952935016
JOINT B, FUEL CONSENT
 1 Ask on WhatsApp
8
16953935000
ABSORBER, FUEL
 1 Ask on WhatsApp
9
16962865010
RING, COCK SEAL
 1 Ask on WhatsApp
10
17500881C00ZA
TANK COMP., FUEL *R8 *
 1 Ask on WhatsApp
14
17583881000
FILTER, FUEL
 1 Ask on WhatsApp
15
17611935000
TUBE, INNER
 1 Ask on WhatsApp
16
17612881000
SEAL, INNER
 1 Ask on WhatsApp
17
17620881053
CAP COMP., FUEL FILLER
 1 Ask on WhatsApp
18
17650921003ZB
CONNECTOR COMP., FUEL *NH1 *
 1 Ask on WhatsApp
19
17661921000
BULB, PRIMER
 1 Ask on WhatsApp
20
17670921000
VALVE COMP., IN.
 1 Ask on WhatsApp
21
17680921000
VALVE COMP., OUTLET
 1 Ask on WhatsApp
26
17700881000ZC
TUBE COMP., FUEL *NH282MU *
 1 Ask on WhatsApp
27
17701881000
TUBE, FUEL LONG
 1 Ask on WhatsApp
28
17702921000
TUBE, FUEL SHORT
 1 Ask on WhatsApp
29
17703921000
BAND, TUBE CLIP, 20MM
 2 Ask on WhatsApp
30
17704921000
BAND, TUBE CLIP, 11MM
 5 Ask on WhatsApp
31
17800ZV1611
METER ASSY., FUEL
 1 Ask on WhatsApp
32
17803GC3003
PACKING, FUEL METER
 1 Ask on WhatsApp
33
87571881670
MARK, TANK CAUTION (ENGLISH/FRENCH)
 1 Ask on WhatsApp
33
87571881671
MARK, TANK CAUTION (ENGLISH/FRENCH)
 1 Ask on WhatsApp
34
87573881670
MARK, TANK (ENGLISH)
 1 Ask on WhatsApp
35
87574881670
MARK, TANK (FRENCH)
 1 Ask on WhatsApp
36
90120881000
BOLT, FLANGE, 6X16
 2 Ask on WhatsApp
37
90445700000
PACKING, FIBER, 6MM
 2 Ask on WhatsApp
38
90540881000
PACKING, FIBER, 5MM
 4 Ask on WhatsApp
39
91353921310
O-RING, 5.5MM
 1 Ask on WhatsApp
41
93500050104J
SCREW, PAN, 5X10
 4 Ask on WhatsApp
