Section F-11-1: SWIVEL CASE/SWIVEL SHAFT (2) (v2)

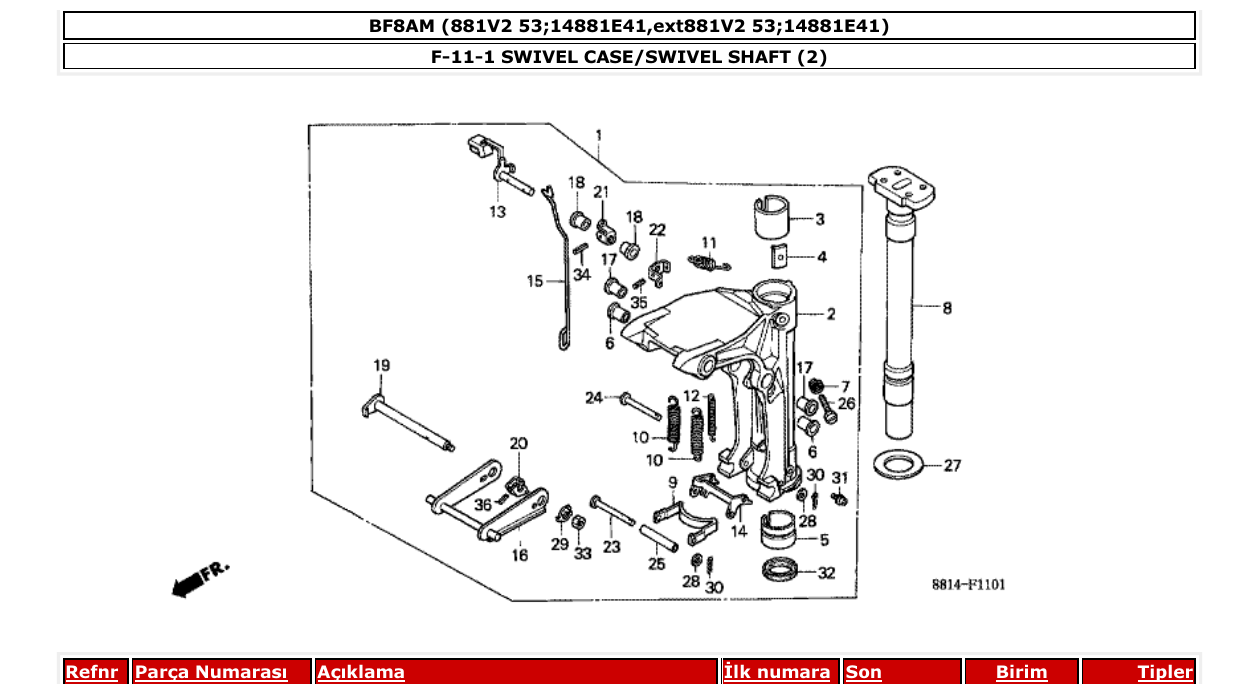

Diagram for section F-11-1: SWIVEL CASE/SWIVEL SHAFT (2).
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
50200881841ZB
CASE ASSY., SWIVEL *NH282MU *
|
1 | Ask on WhatsApp |
| 1 |
50200881842ZB
CASE ASSY., SWIVEL *NH282MU *
|
1 | Ask on WhatsApp |
| 1 |
50200881843ZB
CASE ASSY., SWIVEL *NH282MU *
|
1 | Ask on WhatsApp |
| 2 |
50201881841ZB
CASE, SWIVEL *NH282MU *
|
1 | Ask on WhatsApp |
| 2 |
50201881842ZB
CASE, SWIVEL *NH282MU *
|
1 | Ask on WhatsApp |
| 3 |
50211881000
LINER, SWIVEL CASE
|
1 | Ask on WhatsApp |
| 3 |
50211881010
LINER, SWIVEL CASE
|
1 | Ask on WhatsApp |
| 4 |
50212881000
BLOCK, FRICTION
|
1 | Ask on WhatsApp |
| 5 |
50213881000
BUSH, SWIVEL SHAFT
|
1 | Ask on WhatsApp |
| 6 |
50214ZV4003
BUSH, SWIVEL CASE
|
2 | Ask on WhatsApp |
| 7 |
50233881000
SPRING, FRICTION ADJUSTING
|
1 | Ask on WhatsApp |
| 8 |
50417881840ZB
SHAFT, SWIVEL *NH282MU *
|
1 | Ask on WhatsApp |
| 9 |
50512ZV4000
HOOK, REVERSE LOCK
|
1 | Ask on WhatsApp |
| 10 |
50514ZV4000
SPRING, REVERSE LOCK
|
2 | Ask on WhatsApp |
| 11 |
50515ZV4300
SPRING, TILT LEVER
|
1 | Ask on WhatsApp |
| 12 |
50516ZV4300
SPRING, TILT LINK
|
1 | Ask on WhatsApp |
| 13 |
50517ZV4000
LEVER, TILT
|
1 | Ask on WhatsApp |
| 13 |
50517ZV4010
LEVER, TILT
|
1 | Ask on WhatsApp |
| 14 |
50518ZV4000
ARM, REVERSE LOCK
|
1 | Ask on WhatsApp |
| 15 |
50519ZV4300
ROD, RELEASE SWIVEL CASE
|
1 | Ask on WhatsApp |
| 16 |
50520ZV4000
ARM COMP., TILT
|
1 | Ask on WhatsApp |
| 17 |
50521ZV1000
BUSH, TILT LEVER
|
2 | Ask on WhatsApp |
| 18 |
50522ZV4000
BUSH, TILT LEVER
|
2 | Ask on WhatsApp |
| 19 |
50525ZV4000
SHAFT COMP., TILT
|
1 | Ask on WhatsApp |
| 20 |
50526ZV4000
BRACKET, TILT SHAFT
|
1 | Ask on WhatsApp |
| 21 |
50527ZV4000
BRACKET, RELEASE ROD
|
1 | Ask on WhatsApp |
| 21 |
50527ZV4010
BRACKET, RELEASE ROD
|
1 | Ask on WhatsApp |
| 22 |
50528ZV4000
BRACKET, TILT LEVER
|
1 | Ask on WhatsApp |
| 22 |
50528ZV4010
BRACKET, TILT LEVER
|
1 | Ask on WhatsApp |
| 23 |
50531ZV4000
SHAFT, REVERSE LOCK (A)
|
1 | Ask on WhatsApp |
| 24 |
50532ZV4000
SHAFT, REVERSE LOCK (B)
|
1 | Ask on WhatsApp |
| 25 |
50533ZV4000
COLLAR, REVERSE LOCK
|
1 | Ask on WhatsApp |
| 26 |
90109ZV4000
BOLT, SPECIAL, 8X20
|
1 | Ask on WhatsApp |
| 27 |
90454881000
WASHER, THRUST
|
1 | Ask on WhatsApp |
| 28 |
90504921010
WASHER, PLAIN, 6MM
|
2 | Ask on WhatsApp |
| 29 |
90505ZV4000
WASHER, LOCK
|
1 | Ask on WhatsApp |
| 30 |
90756881000
PIN, SPLIT
|
2 | Ask on WhatsApp |
