Section F-2: SHIFT SHAFT/CARRYING HANDLE/COVER LOCK LEVER (v2)

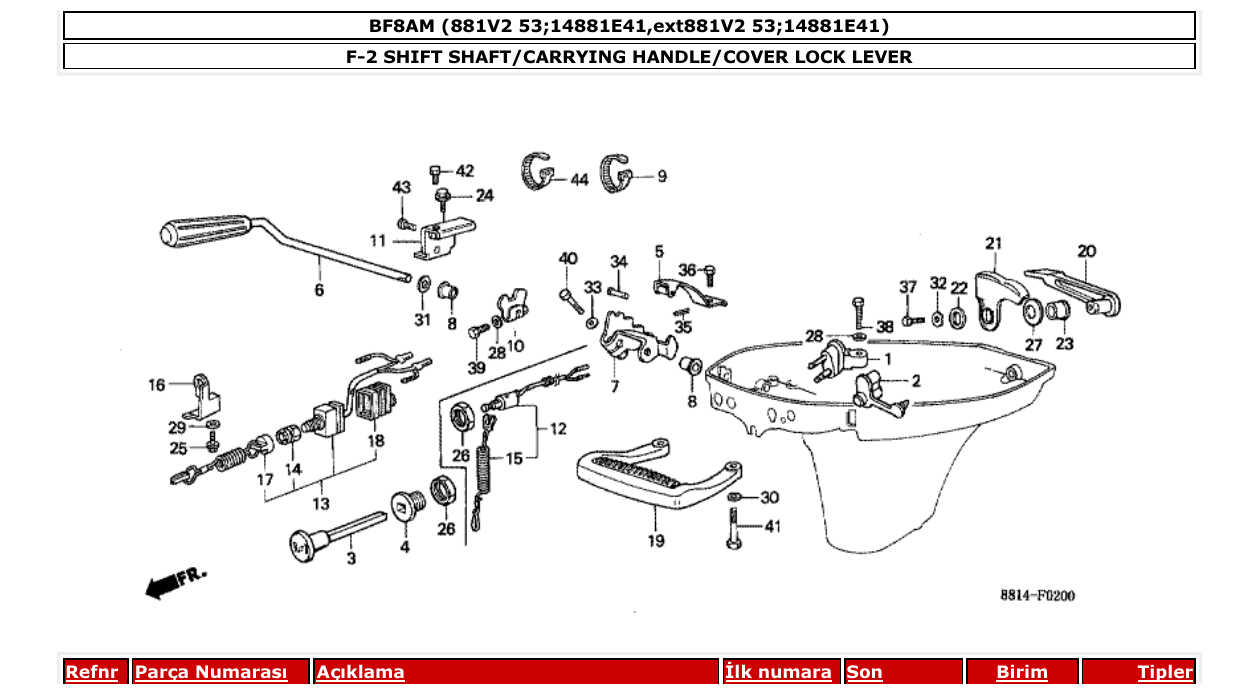

Diagram for section F-2: SHIFT SHAFT/CARRYING HANDLE/COVER LOCK LEVER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
17710881840ZB
CONNECTOR, FUEL *NH282MU *
|
1 | Ask on WhatsApp |
| 2 |
17711881000
CAP, FUEL JOINT
|
1 | Ask on WhatsApp |
| 3 |
17951921030
KNOB, CHOKE
|
1 | Ask on WhatsApp |
| 4 |
17953921010
GUIDE, CHOKE KNOB
|
1 | Ask on WhatsApp |
| 5 |
24210921000
SPRING, CLICK
|
1 | Ask on WhatsApp |
| 6 |
24610881010
SHAFT COMP., SHIFT
|
1 | Ask on WhatsApp |
| 7 |
24612881030
ARM, GEARSHIFT
|
1 | Ask on WhatsApp |
| 8 |
24621921010
BUSH, SHAFT
|
2 | Ask on WhatsApp |
| 9 |
32901952770
TIE, CABLE (2.4X92) (NATURAL)
|
1 | Ask on WhatsApp |
| 10 |
35110881000
PLATE, SWITCH SHIELD
|
1 | Ask on WhatsApp |
| 11 |
35120881000
PLATE COMP., SWITCH SETTING
|
1 | Ask on WhatsApp |
| 12 |
36180881A01
SWITCH ASSY., EMERGENCY STOP
|
1 | Ask on WhatsApp |
| 12 |
36180881A02
SWITCH ASSY., EMERGENCY STOP
|
1 | Ask on WhatsApp |
| 15 |
36182ZV4650
CORD COMP., EMERGENCY
|
1 | Ask on WhatsApp |
| 19 |
50281881841ZB
HANDLE, CARRYING *NH282MU *
|
1 | Ask on WhatsApp |
| 20 |
63201881841ZB
LEVER, COVER LOCK *NH282MU *
|
1 | Ask on WhatsApp |
| 21 |
63202881000
HOOK, COVER LOCK
|
1 | Ask on WhatsApp |
| 22 |
63203935000
WASHER, COVER LOCK
|
1 | Ask on WhatsApp |
| 23 |
63205920000
BUSH, COVER LOCK
|
1 | Ask on WhatsApp |
| 24 |
90016920000
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
| 26 |
90302921000
NUT, HEX., 16MM
|
1 | Ask on WhatsApp |
| 27 |
90455881000
SPRING, LEVER
|
1 | Ask on WhatsApp |
| 28 |
90504921010
WASHER, PLAIN, 6MM
|
2 | Ask on WhatsApp |
| 30 |
90507ZV4000
WASHER, PLAIN, 8MM
|
2 | Ask on WhatsApp |
| 31 |
90511921000
WASHER, PLAIN, 10MM
|
1 | Ask on WhatsApp |
| 32 |
90512921010
WASHER, 6MM
|
1 | Ask on WhatsApp |
| 33 |
90518921000
WASHER, PLAIN, 8MM
|
1 | Ask on WhatsApp |
| 34 |
90754921010
PIN, 5X17
|
1 | Ask on WhatsApp |
| 35 |
90756921000
PIN, SPLIT, 1.6MM
|
1 | Ask on WhatsApp |
| 36 |
92000060120B
BOLT, HEX., 6X12
|
1 | Ask on WhatsApp |
| 37 |
92000060160B
BOLT, HEX., 6X16
|
1 | Ask on WhatsApp |
| 38 |
92000060204J
BOLT, HEX., 6X20
|
1 | Ask on WhatsApp |
| 39 |
92000060284J
BOLT, HEX., 6X28
|
1 | Ask on WhatsApp |
| 40 |
92000080284J
BOLT, HEX., 8X28
|
1 | Ask on WhatsApp |
| 41 |
90115881000
BOLT, HEX., 8X32
|
2 | Ask on WhatsApp |
| 43 |
93500050204J
SCREW, PAN, 5X20
|
1 | Ask on WhatsApp |
