bf8am
Section E-7: CRANKSHAFT/PISTON (v2)

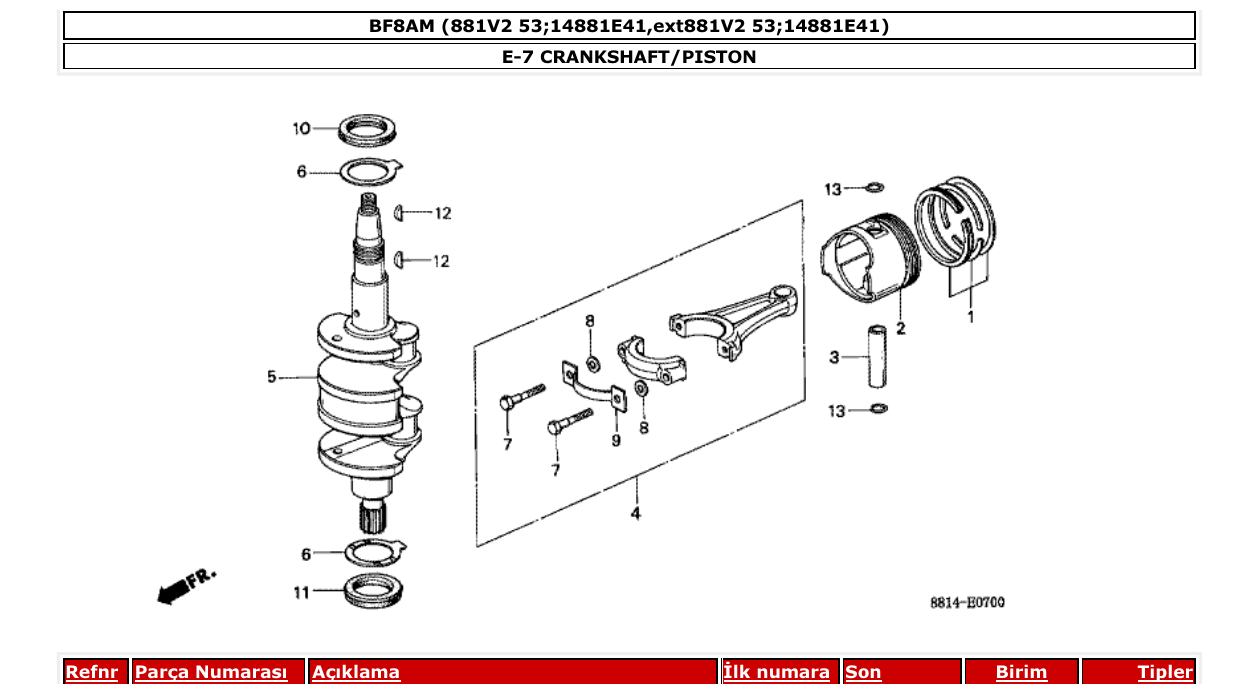

Diagram for section E-7: CRANKSHAFT/PISTON.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
13010881000
RING SET, PISTON (STD.) (2SET)
|
1 | Ask on WhatsApp |
| 2 |
13101881000
PISTON
|
2 | Ask on WhatsApp |
| 3 |
13111881000
PIN, PISTON
|
2 | Ask on WhatsApp |
| 4 |
13200881000
ROD ASSY., CONNECTING
|
2 | Ask on WhatsApp |
| 5 |
13311881000
CRANKSHAFT
|
1 | Ask on WhatsApp |
| 6 |
13316881000
BEARING, CRANKSHAFT THRUST
|
2 | Ask on WhatsApp |
| 7 |
90011881000
BOLT, CONNECTING ROD
|
4 | Ask on WhatsApp |
| 8 |
90402921000
WASHER, 6MM
|
4 | Ask on WhatsApp |
| 9 |
90452881000
WASHER, LOCK
|
2 | Ask on WhatsApp |
| 10 |
91201881003
OIL SEAL A, 30X42X7
|
1 | Ask on WhatsApp |
| 11 |
91202881003
OIL SEAL B, 30X42X7
|
1 | Ask on WhatsApp |
| 12 |
9440116150
KEY, WOODRUFF, 16X15
|
2 | Ask on WhatsApp |
| 13 |
9460114000
CLIP, PISTON PIN, 14MM
|
4 | Ask on WhatsApp |
