bf8am
Section F-3: GEAR CASE/EXTENSION CASE/SHIFT ROD (v2)

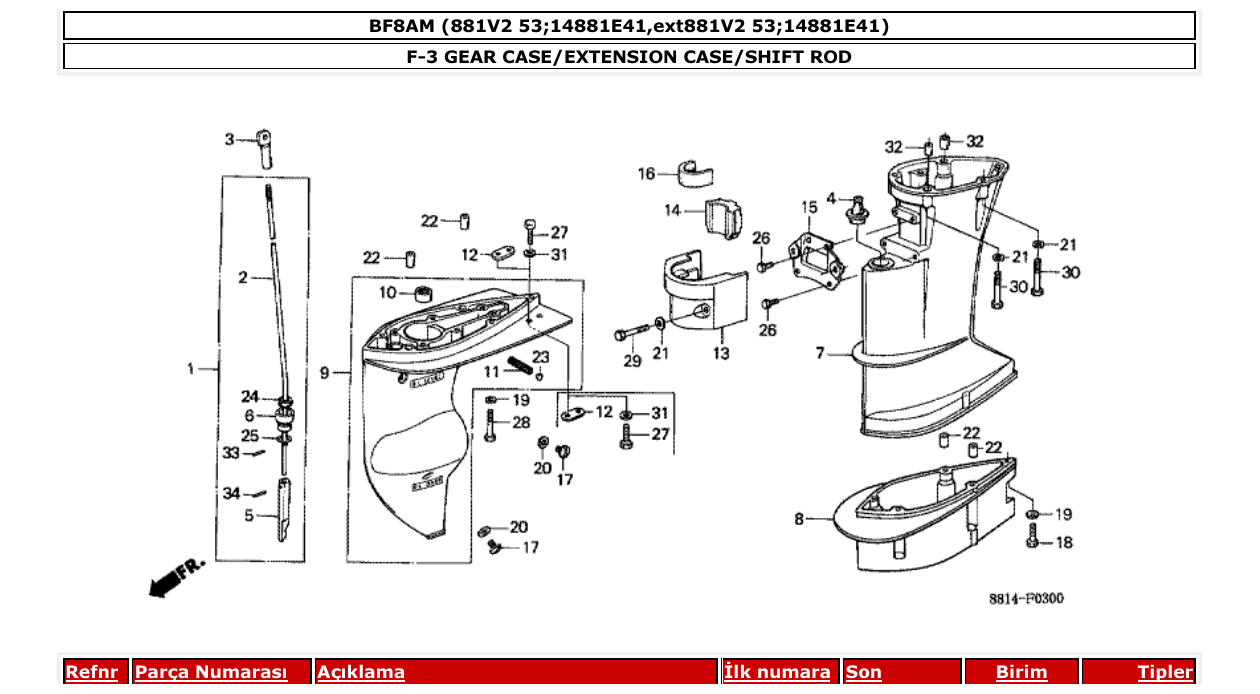

Diagram for section F-3: GEAR CASE/EXTENSION CASE/SHIFT ROD.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
24310881701
ROD COMP., GEARSHIFT (L)
|
1 | Ask on WhatsApp |
| 2 |
24311881700
ROD, GEARSHIFT (L)
|
1 | Ask on WhatsApp |
| 3 |
24312881000
JOINT, GEARSHIFT ROD
|
1 | Ask on WhatsApp |
| 4 |
24313921003
GROMMET, ROD (ARAI)
|
1 | Ask on WhatsApp |
| 5 |
24341ZV4300
ROD, PUSH
|
1 | Ask on WhatsApp |
| 6 |
24343881300
HOLDER, SEAL
|
1 | Ask on WhatsApp |
| 7 |
40201881942ZB
CASE, EXTENSION (L/UL) *NH282MU *
|
1 | Ask on WhatsApp |
| 9 |
41100881A00ZB
CASE COMP., GEAR *NH282MU *
|
1 | Ask on WhatsApp |
| 10 |
41103935003
BEARING, NEEDLE, 15X21X16
|
1 | Ask on WhatsApp |
| 11 |
41104921320
SCREEN, WATER
|
1 | Ask on WhatsApp |
| 12 |
41106ZV4650
METAL, ANODE
|
1 | Ask on WhatsApp |
| 13 |
50121881842ZB
HOUSING, LOWER MOUNTING *NH282MU *
|
1 | Ask on WhatsApp |
| 14 |
50151881000
RUBBER A, LOWER MOUNTING
|
1 | Ask on WhatsApp |
| 15 |
50152881000
PLATE COMP., LOWER MOUNTING
|
1 | Ask on WhatsApp |
| 16 |
50153881000
RUBBER B, LOWER MOUNTING
|
1 | Ask on WhatsApp |
| 17 |
90105ZV4650
BOLT, OIL CHECK, 8X8
|
2 | Ask on WhatsApp |
| 19 |
90506ZV4000
WASHER, PLAIN, 6MM
|
5 | Ask on WhatsApp |
| 20 |
90507921000
WASHER, NYLON, 8MM
|
2 | Ask on WhatsApp |
| 21 |
90507ZV4000
WASHER, PLAIN, 8MM
|
6 | Ask on WhatsApp |
| 22 |
9430108100
DOWEL PIN, 8X10
|
2 | Ask on WhatsApp |
| 23 |
90855921300
PLUG, SEALING, 10MM
|
1 | Ask on WhatsApp |
| 24 |
91253921003
WATER SEAL, 6MM
|
1 | Ask on WhatsApp |
| 25 |
91303377000
O-RING, 13.8X2.5
|
1 | Ask on WhatsApp |
| 26 |
90105881000
BOLT, HEX., 6X12
|
4 | Ask on WhatsApp |
| 27 |
90101ZV1000
BOLT, HEX., 6X18
|
2 | Ask on WhatsApp |
| 28 |
90120ZV4000
BOLT, HEX., 6X40
|
5 | Ask on WhatsApp |
| 29 |
90116881000
BOLT, HEX., 8X40
|
2 | Ask on WhatsApp |
| 30 |
90123ZV4000
BOLT, HEX., 8X50
|
4 | Ask on WhatsApp |
| 31 |
90506ZV4000
WASHER, PLAIN, 6MM
|
2 | Ask on WhatsApp |
| 32 |
90703HC4000
DOWEL PIN, 10X14
|
2 | Ask on WhatsApp |
| 33 |
9430525122
PIN, SPRING, 2.5X12
|
1 | Ask on WhatsApp |
| 34 |
9622025118
ROLLER, 2.5X11.8
|
1 | Ask on WhatsApp |
