F100BET
Section 19: BRACKET 1 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

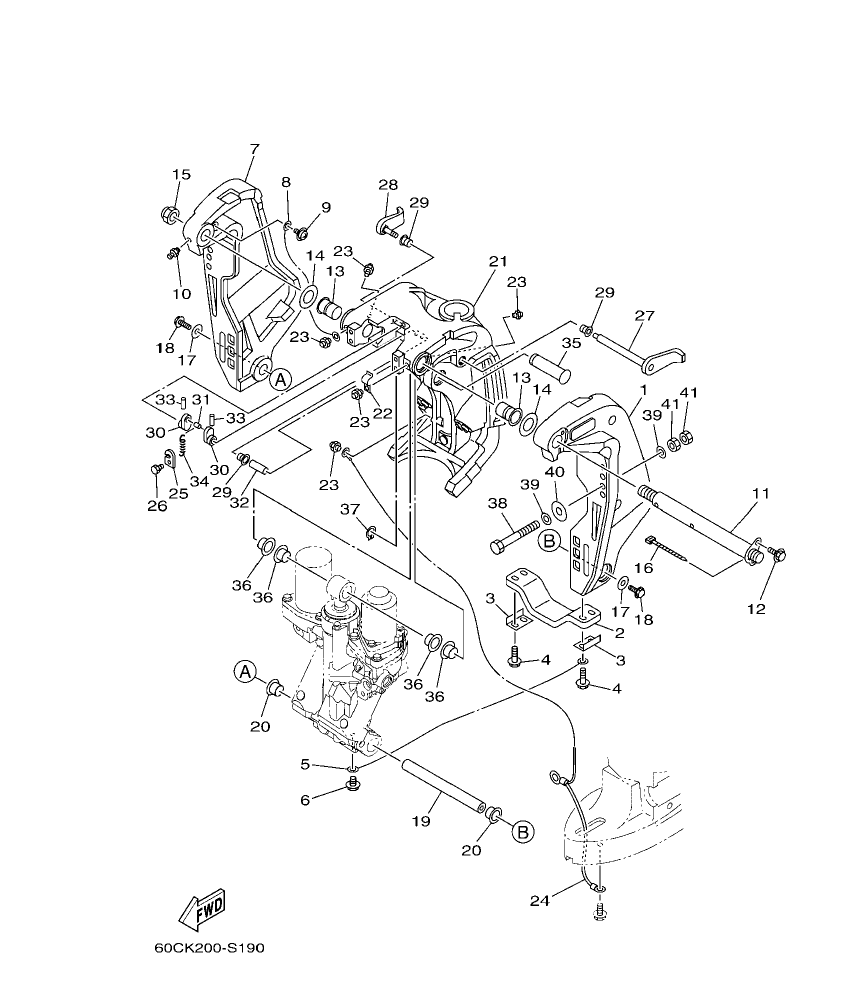

Diagram for section 19: BRACKET 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
68V–43111–01–8D
BRACKET, CLAMP 1
|
1 | Ask on WhatsApp |
| 2 |
6G5–45251–02
ANODE
|
1 | Ask on WhatsApp |
| 3 |
6G5–44526–00
PLATE
|
2 | Ask on WhatsApp |
| 4 |
97595–06530
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 5 |
6E5–82148–00
WIRE, LEAD 4
|
1 | Ask on WhatsApp |
| 6 |
97595–06510
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
| 7 |
68V–43112–01–8D
BRACKET, CLAMP 2
|
1 | Ask on WhatsApp |
| 8 |
6E5–82148–00
WIRE, LEAD 4
|
1 | Ask on WhatsApp |
| 9 |
97985–06212
SCREW, WITH WASHER
|
1 | Ask on WhatsApp |
| 10 |
93700–06M03
NIPPLE, GREASE
|
1 | Ask on WhatsApp |
| 11 |
64E–43131–01
BOLT, CLAMP BRACKET
|
1 | Ask on WhatsApp |
| 12 |
97595–08520
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
| 13 |
90386–25M31
BUSH
|
2 | Ask on WhatsApp |
| 14 |
90201–26M59
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 15 |
90185–22M11
NUT, SELF-LOCKING
|
1 | Ask on WhatsApp |
| 16 |
90465–11M10
CLAMP
|
1 | Ask on WhatsApp |
| 17 |
90201–10060
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 18 |
90119–10054
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 19 |
6BC–43818–00
PIN, LOWER SHOCK MOUNT
|
1 | Ask on WhatsApp |
| 20 |
90386–22M98
BUSH
|
2 | Ask on WhatsApp |
| 21 |
64E–43311–10–8D
BRACKET, SWIVEL 1
|
1 | Ask on WhatsApp |
| 22 |
90465–08M63
CLAMP
|
1 | Ask on WhatsApp |
| 23 |
93700–06M03
NIPPLE, GREASE
|
5 | Ask on WhatsApp |
| 24 |
66K–82149–00
WIRE, LEAD 3
|
1 | Ask on WhatsApp |
| 25 |
66T–43144–00
HOOK, SPRING
|
1 | Ask on WhatsApp |
| 26 |
97095–06010
|
1 | Ask on WhatsApp |
| 27 |
6G5–43181–02
|
1 | Ask on WhatsApp |
| 28 |
6G5–43185–02
|
1 | Ask on WhatsApp |
| 29 |
90386–10M16
|
3 | Ask on WhatsApp |
| 30 |
6G5–43148–00
|
2 | Ask on WhatsApp |
| 31 |
90249–06M19
|
1 | Ask on WhatsApp |
| 32 |
90387–10M05
|
1 | Ask on WhatsApp |
| 33 |
91690–30020
|
2 | Ask on WhatsApp |
| 34 |
90506–14M24
|
1 | Ask on WhatsApp |
| 35 |
64E–43126–00
|
1 | Ask on WhatsApp |
| 36 |
90386–22M98
|
4 | Ask on WhatsApp |
| 37 |
93410–22M11
|
1 | Ask on WhatsApp |
| 38 |
90101–12M05
|
4 | Ask on WhatsApp |
| 39 |
90201–13M01
|
8 | Ask on WhatsApp |
| 40 |
90201–12426
|
4 | Ask on WhatsApp |
| 41 |
95380–12600
|
8 | Ask on WhatsApp |
| 64 |
64E–43311–20–8D
BRACKET, SWIVEL 1
|
1 | Ask on WhatsApp |
| 68 |
68V–82149–30
WIRE, LEAD 3
|
1 | Ask on WhatsApp |
