F100BET – section 29 REMOTE CONTROL ASSY parts diagram

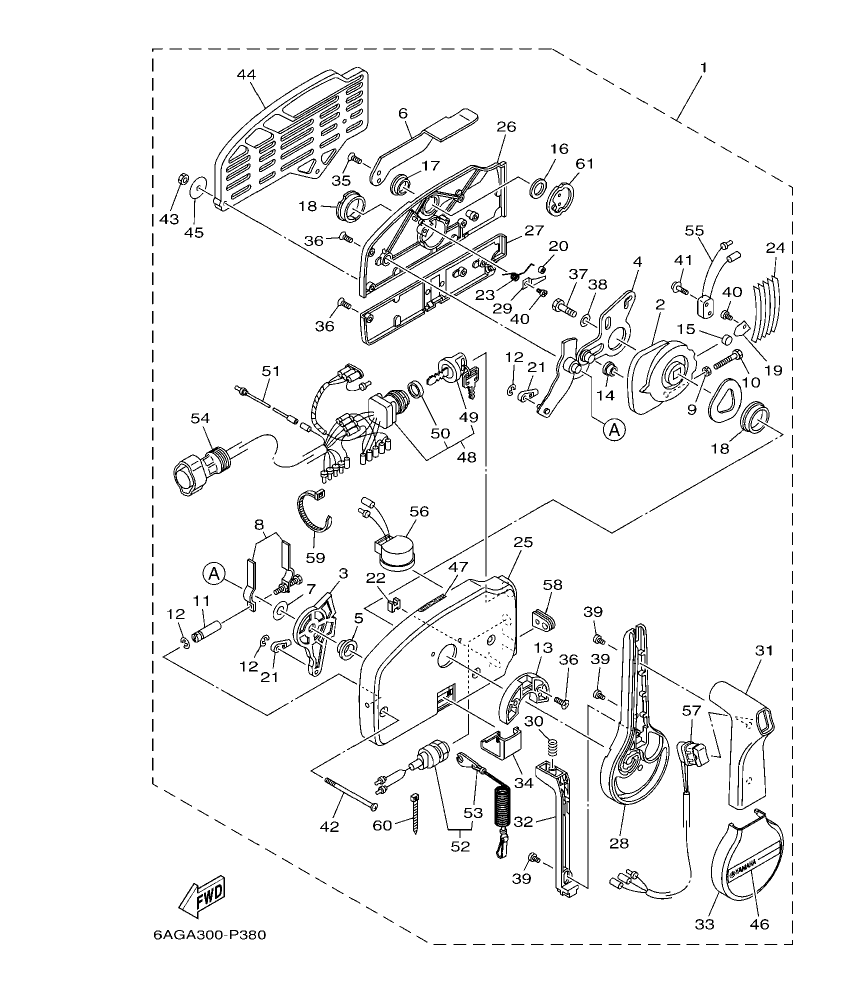

Diagram for section 29: REMOTE CONTROL ASSY.

Ref Part No. Qty Buy
1
703–48205–B2
REMOTE CONTROL ASSY (10P, PTT)
 1 Ask on WhatsApp
2
703–48232–00
.GEAR
 1 Ask on WhatsApp
3
703–48271–00
.ARM, SHIFT
 1 Ask on WhatsApp
4
703–48261–01
.ARM, THROTTLE
 1 Ask on WhatsApp
5
703–48235–00
.BUSHING
 1 Ask on WhatsApp
6
703–48152–10
.KNOB, FREE ACCEL.
 1 Ask on WhatsApp
7
703–48268–00
.SPACER
 1 Ask on WhatsApp
8
703–48264–00
.FRICTION, THROTTLE
 1 Ask on WhatsApp
9
95380–05600
.NUT
 1 Ask on WhatsApp
10
97380–05025
.BOLT
 1 Ask on WhatsApp
11
703–48265–10
.SHAFT, FRICTION
 1 Ask on WhatsApp
12
93430–06024
.CIRCLIP
 3 Ask on WhatsApp
13
703–48245–00
.PLATE, LOCK
 1 Ask on WhatsApp
14
703–48252–00
.ROLLER, CAM
 1 Ask on WhatsApp
15
701–48248–00
.ROLLER, FREE ACCEL.
 1 Ask on WhatsApp
16
703–48198–00
.WASHER, WAVE
 1 Ask on WhatsApp
17
703–48243–00
.BUSHING
 1 Ask on WhatsApp
18
703–48236–00
.BUSHING 1
 2 Ask on WhatsApp
19
703–48189–00
.RETAINER
 1 Ask on WhatsApp
20
703–48234–00
.ROLLER, DETENT
 1 Ask on WhatsApp
21
703–48345–01
.CABLE END, REMOTE CONTROL 2
 2 Ask on WhatsApp
22
703–48358–00
.ANCHOR, CABLE
 1 Ask on WhatsApp
23
703–48244–00
.SPRING, FREE ACCEL.
 1 Ask on WhatsApp
24
703–48238–00
.SPRING, DETENT
 5 Ask on WhatsApp
25
703–48211–10
.HOUSING,1
 1 Ask on WhatsApp
26
703–48212–10
.BACK PLATE 1
 1 Ask on WhatsApp
27
703–48213–10
.BACK PLATE 2
 1 Ask on WhatsApp
28
703–48221–10
.LEVER, CONTROL
 1 Ask on WhatsApp
29
703–48246–00
.SPACER
 1 Ask on WhatsApp
30
703–48227–00
.SPRING, NEUTRAL LOCK
 1 Ask on WhatsApp
31
703–48222–20
.GRIP, CONTROL LEVER
 1 Ask on WhatsApp
32
703–48223–10
.LOCK, NEUTRAL
 1 Ask on WhatsApp
33
703–48225–10
.COVER
 1 Ask on WhatsApp
34
703–48219–10
.COVER, LEAD
 1 Ask on WhatsApp
35
703–48281–00
.SCREW
 2 Ask on WhatsApp
36
703–44189–20
.SCREW
 7 Ask on WhatsApp
37
97380–08030
.BOLT
 1 Ask on WhatsApp
38
92990–08600
.WASHER, PLATE
 1 Ask on WhatsApp
39
703–48128–10
.SCREW 2
 3 Ask on WhatsApp
40
98580–04006
.SCREW, PAN HEAD
 2 Ask on WhatsApp
41
703–48129–00
.SCREW 3
 2 Ask on WhatsApp
42
703–44189–30
.SCREW
 3 Ask on WhatsApp
43
95380–06600
.NUT, HEXAGON
 3 Ask on WhatsApp
44
703–48293–10
.SPACER, REMOTE CONTROL
 1 Ask on WhatsApp
45
701–48287–00
.WASHER
 3 Ask on WhatsApp
46
703–48215–10
.GRAPHIC
 1 Ask on WhatsApp
47
6X3–44191–00
.INDICATOR, SHIFT
 1 Ask on WhatsApp
48
703–82510–13
.MAIN SWITCH ASSY
 1 Ask on WhatsApp
49
676–82577–01
..CAP, KEY
 1 Ask on WhatsApp
50
703–82532–00
..CAP
 1 Ask on WhatsApp
51
703–82531–00
.WIRE, LEAD (L70)
 1 Ask on WhatsApp
52
688–82575–02
.ENGINE STOP SWITCH ASSY
 1 Ask on WhatsApp
53
682–82556–00
..LANYARD, STOP SWITCH
 1 Ask on WhatsApp
54
688–8258A–20
.EXTENSION, WIRE HARNESS (4.9M)
 1 Ask on WhatsApp
55
703–82540–00
.NEUTRAL SWITCH ASSY
 1 Ask on WhatsApp
56
703–83383–11
.BUZZER
 1 Ask on WhatsApp
57
703–82563–31
.TRIM & TILT SWITCH ASSY
 1 Ask on WhatsApp
58
703–48284–00
.GROMMET
 1 Ask on WhatsApp
59
703–82591–00
.BAND
 1 Ask on WhatsApp
60
703–82592–00
.BAND
 1 Ask on WhatsApp
61
703–48153–00
.SHAFT, FREE ACCEL.
 1 Ask on WhatsApp
