F100BET

Section 30: METER (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 TOP COWLING BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY CYLINDER & CRANKCASE 1 METER OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 REPAIR KIT 3 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE CARBURETOR 1 CARBURETOR 2

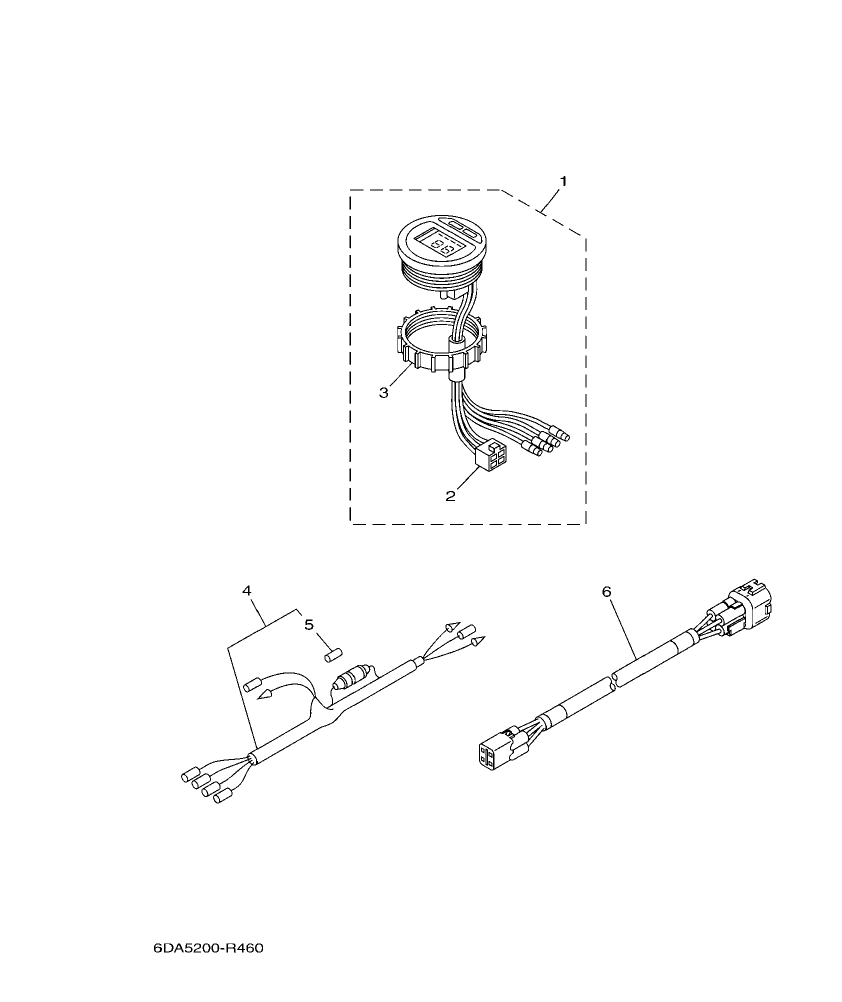

F100BET – section 30 METER parts diagram

Diagram for section 30: METER.

Ref Part No. Qty Buy
1
6Y5–8350T–E0
TACHOMETER ASSY
 1 Ask on WhatsApp
2
9E450–04533
.CONNECTOR
 1 Ask on WhatsApp
3
6Y8–84383–00
.NUT, RING
 1 Ask on WhatsApp
4
6Y5–83553–00
WIRE, LEAD (L=2.5M)
 1 Ask on WhatsApp
5
1E6–82151–00
.FUSE (10A)
 1 Ask on WhatsApp
6
6Y5–83653–20
WIRE, LEAD (L=7.0M)
 1 Ask on WhatsApp
6
6Y5–83653–30
WIRE, LEAD (L=8.0M)
 1 Ask on WhatsApp
