F100BET
Section 23: UPPER CASING (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

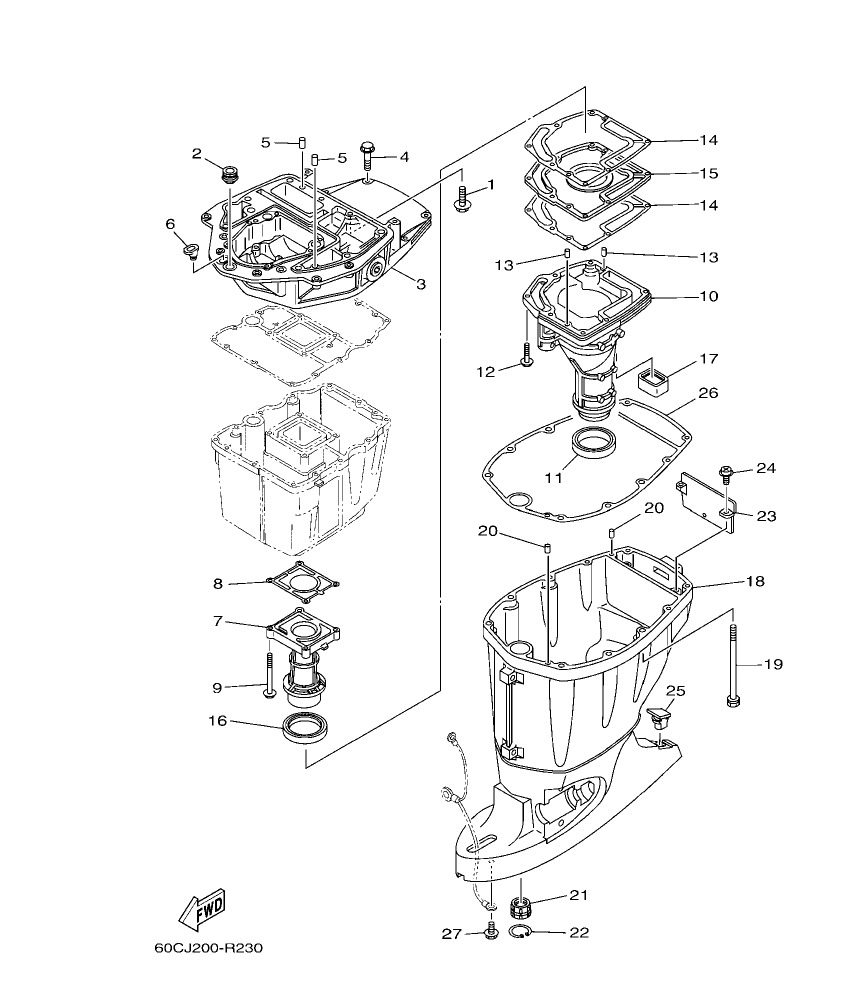

Diagram for section 23: UPPER CASING.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
90119–08M58
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 2 |
67F–42724–00
GROMMET
|
1 | Ask on WhatsApp |
| 3 |
67F–41137–02–CA
GUIDE, EXHAUST
|
1 | Ask on WhatsApp |
| 4 |
97575–08540
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 5 |
93608–16M16
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 6 |
6G1–42727–00
GROMMET
|
1 | Ask on WhatsApp |
| 7 |
60C–41131–01–9S
MANIFOLD, EXT. 1
|
1 | Ask on WhatsApp |
| 8 |
67F–41133–A1
GASKET, EXHAUST MANIFOLD 1
|
1 | Ask on WhatsApp |
| 9 |
97575–06570
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 10 |
60C–14711–10–9S
MUFFLER 1
|
1 | Ask on WhatsApp |
| 11 |
68V–45123–00
GASKET, MUFFLER
|
1 | Ask on WhatsApp |
| 12 |
97575–06530
BOLT, WITH WASHER
|
7 | Ask on WhatsApp |
| 13 |
93606–19M23
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 14 |
67F–41134–A0
GASKET, EXHAUST MANIFOLD
|
2 | Ask on WhatsApp |
| 15 |
67F–45181–00–CA
PLATE
|
1 | Ask on WhatsApp |
| 16 |
67F–41138–00
SEAL, EXT. 1
|
1 | Ask on WhatsApp |
| 17 |
67F–45127–00
SEAL
|
1 | Ask on WhatsApp |
| 18 |
68V–45111–11–8D
CASING, UPPER
|
1 | Ask on WhatsApp |
| 19 |
90119–10M08
BOLT, WITH WASHER
|
6 | Ask on WhatsApp |
| 20 |
93608–16M16
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 21 |
6E5–45318–00
BUSHING, DRIVE SHAFT
|
1 | Ask on WhatsApp |
| 22 |
93420–36M01
CIRCLIP
|
1 | Ask on WhatsApp |
| 23 |
67F–45151–00
COVER, UPPER CASING
|
1 | Ask on WhatsApp |
| 24 |
97980–06216
SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 25 |
6C5–45155–00
CAP
|
1 | Ask on WhatsApp |
| 26 |
67F–45113–00
GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 27 |
95895–06010
BOLT, FLANGE
|
1 | Ask on WhatsApp |
| 60 |
60C–14711–30–9S
MUFFLER 1
|
1 | Ask on WhatsApp |
| 68 |
68V–45111–31–8D
CASING, UPPER
|
1 | Ask on WhatsApp |
