Section 5: CYLINDER & CRANKCASE 2 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

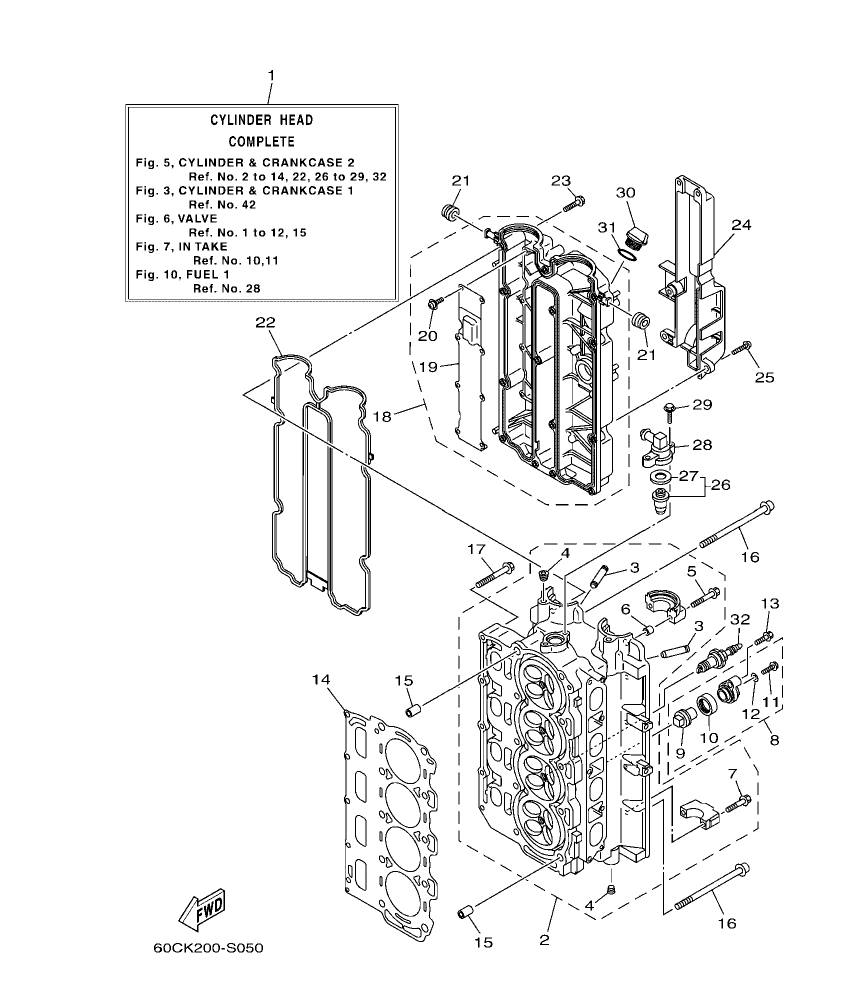

Diagram for section 5: CYLINDER & CRANKCASE 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
67F–W009A–25–9S
CYLINDER HEAD COMPLETE
|
1 | Ask on WhatsApp |
| 2 |
6D8–11110–20–9S
CYLINDER HEAD ASSY
|
1 | Ask on WhatsApp |
| 3 |
67F–11133–10
.GUIDE, VALVE 1
|
16 | Ask on WhatsApp |
| 4 |
90344–51019
.PLUG, TAPER SCREW
|
4 | Ask on WhatsApp |
| 5 |
90119–07235
.BOLT/WASHER-CAM CAPS
|
4 | Ask on WhatsApp |
| 6 |
91809–08006
.PIN, DOWEL
|
4 | Ask on WhatsApp |
| 7 |
90119–07234
.BOLT, WITH WASHER
|
16 | Ask on WhatsApp |
| 8 |
69J–11301–00
ANODE COVER ASSY
|
2 | Ask on WhatsApp |
| 9 |
67F–11325–01
.ANODE
|
1 | Ask on WhatsApp |
| 10 |
67F–11328–00
.GROMMET, ANODE
|
1 | Ask on WhatsApp |
| 11 |
90105–06M07
.BOLT, FLANGE
|
1 | Ask on WhatsApp |
| 12 |
90430–06M03
.GASKET
|
1 | Ask on WhatsApp |
| 13 |
97575–08540
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 14 |
67F–11181–03
GASKET, CYLINDER HEAD 1
|
1 | Ask on WhatsApp |
| 15 |
99530–14016
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 16 |
90155–10005
SCREW, FLAT FILLISTER
|
10 | Ask on WhatsApp |
| 17 |
90119–08M91
BOLT, WITH WASHER
|
5 | Ask on WhatsApp |
| 18 |
6D8–11191–01–9S
COVER, CYLINDER HEAD 1
|
1 | Ask on WhatsApp |
| 19 |
67F–11168–00
.COVER, BREATHER
|
1 | Ask on WhatsApp |
| 20 |
97607–04208
.SCREW, WITH WASHER
|
8 | Ask on WhatsApp |
| 21 |
90480–12072
GROMMET
|
2 | Ask on WhatsApp |
| 22 |
6D8–11356–01
SEAL, CYLINDER 2
|
1 | Ask on WhatsApp |
| 23 |
97595–06530
BOLT, WITH WASHER
|
14 | Ask on WhatsApp |
| 24 |
67F–11192–01
COVER, CYLINDER HEAD 2
|
1 | Ask on WhatsApp |
| 25 |
90119–06M79
BOLT, WITH WASHER
|
5 | Ask on WhatsApp |
| 26 |
67F–12411–01
THERMOSTAT
|
1 | Ask on WhatsApp |
| 27 |
67F–12412–00
.SEAL, THERMOSTAT
|
1 | Ask on WhatsApp |
| 28 |
68V–12413–00–9S
COVER, THERMOSTAT
|
1 | Ask on WhatsApp |
| 29 |
97595–06525
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 30 |
6G8–15363–00
PLUG, OIL
|
1 | Ask on WhatsApp |
| 31 |
93210–24M79
O-RING
|
1 | Ask on WhatsApp |
| 32 |
94702–00391
PLUG, SPARK (NGK LFR5A-11)
|
4 | Ask on WhatsApp |
