F100BET
Section 34: REPAIR KIT 2 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

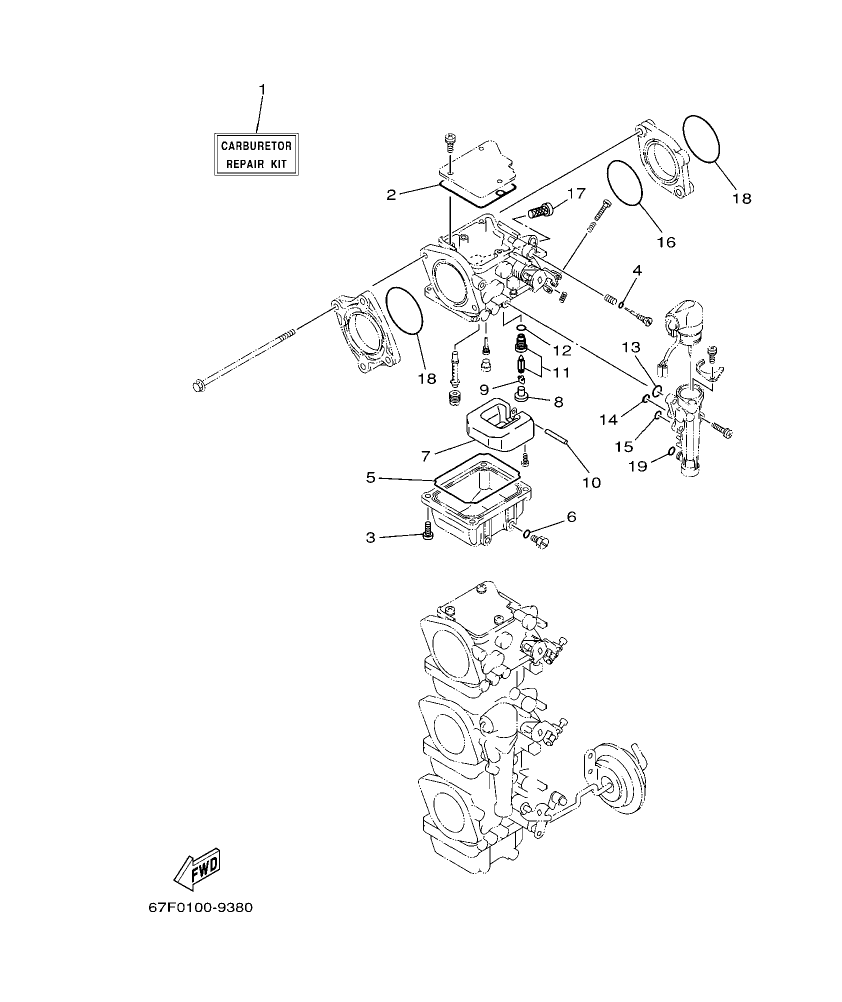

Diagram for section 34: REPAIR KIT 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
67F–W0093–02
CARBURETOR REPAIR KIT
|
1 | Ask on WhatsApp |
| 2 |
67F–14147–00
.GASKET
|
1 | Ask on WhatsApp |
| 3 |
97980–04114
.SCREW, WITH WASHER
|
4 | Ask on WhatsApp |
| 4 |
67F–14397–00
.O-RING
|
1 | Ask on WhatsApp |
| 5 |
67F–14984–00
.GASKET, FLOAT CHAMBER
|
1 | Ask on WhatsApp |
| 6 |
93210–04230
.O-RING
|
1 | Ask on WhatsApp |
| 7 |
6H4–14985–01
.FLOAT
|
1 | Ask on WhatsApp |
| 8 |
676–14186–00
.PIN, FLOAT
|
1 | Ask on WhatsApp |
| 9 |
67F–14159–00
.CLIP
|
1 | Ask on WhatsApp |
| 10 |
6H4–14548–00
.PIN, FLOAT ARM
|
1 | Ask on WhatsApp |
| 11 |
60C–14590–02
.NEEDLE VALVE ASSY
|
1 | Ask on WhatsApp |
| 12 |
93210–04228
.O-RING
|
1 | Ask on WhatsApp |
| 13 |
67F–14398–00
.O-RING
|
1 | Ask on WhatsApp |
| 14 |
67F–14398–10
.O-RING
|
1 | Ask on WhatsApp |
| 15 |
67F–14398–20
.O-RING
|
1 | Ask on WhatsApp |
| 16 |
67F–14239–00
.SEAL
|
1 | Ask on WhatsApp |
| 17 |
67F–14371–01
.ELEMENT, FILTER
|
1 | Ask on WhatsApp |
| 18 |
93210–40M10
.O-RING
|
2 | Ask on WhatsApp |
| 19 |
67F–14398–30
.O-RING
|
1 | Ask on WhatsApp |
