F100BET

Section 6: VALVE (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 TOP COWLING BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY CYLINDER & CRANKCASE 1 METER OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 REPAIR KIT 3 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE CARBURETOR 1 CARBURETOR 2

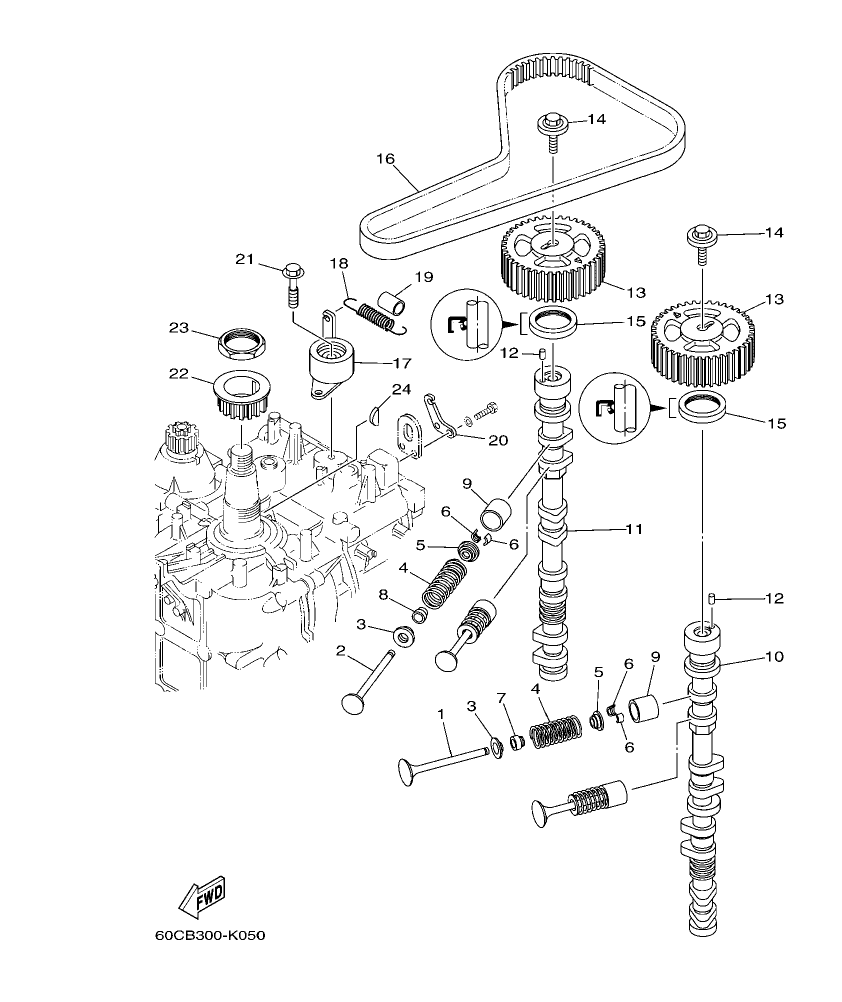

F100BET – section 6 VALVE parts diagram

Diagram for section 6: VALVE.

Ref Part No. Qty Buy
1
6D8–12111–00
VALVE, INTAKE
 8 Ask on WhatsApp
2
6D8–12121–10
VALVE, EXHAUST
 8 Ask on WhatsApp
3
6D8–12116–00
SEAT, VALVE SPRING
 16 Ask on WhatsApp
4
6D8–12113–00
SPRING, VALVE INNER
 16 Ask on WhatsApp
5
26H–12117–00
RETAINER, VALVE SPRING
 16 Ask on WhatsApp
6
4G0–12118–00
COTTER, VALVE
 32 Ask on WhatsApp
6
6D8–12153–10
LIFTER, VALVE (14)
 16 Ask on WhatsApp
6
6D8–12153–20
LIFTER, VALVE (16)
 16 Ask on WhatsApp
6
6D8–12153–30
LIFTER, VALVE (18)
 16 Ask on WhatsApp
6
6D8–12153–40
LIFTER, VALVE (20)
 16 Ask on WhatsApp
6
6D8–12153–50
LIFTER, VALVE (22)
 16 Ask on WhatsApp
6
6D8–12153–60
LIFTER, VALVE (24)
 16 Ask on WhatsApp
6
6D8–12153–70
LIFTER, VALVE (26)
 16 Ask on WhatsApp
6
6D8–12153–80
LIFTER, VALVE (28)
 16 Ask on WhatsApp
6
6D8–12153–90
LIFTER, VALVE (30)
 16 Ask on WhatsApp
6
6D8–12153–A0
LIFTER, VALVE (32)
 16 Ask on WhatsApp
6
6D8–12153–B0
LIFTER, VALVE (34)
 16 Ask on WhatsApp
6
6D8–12153–C0
LIFTER, VALVE (36)
 16 Ask on WhatsApp
6
6D8–12153–D0
LIFTER, VALVE (38)
 16 Ask on WhatsApp
6
6D8–12153–E0
LIFTER, VALVE (40)
 16 Ask on WhatsApp
6
6D8–12153–F0
LIFTER, VALVE (42)
 16 Ask on WhatsApp
6
6D8–12153–G0
LIFTER, VALVE (44)
 16 Ask on WhatsApp
6
6D8–12153–H0
LIFTER, VALVE (46)
 16 Ask on WhatsApp
6
6D8–12153–J0
LIFTER, VALVE (48)
 16 Ask on WhatsApp
6
6D8–12153–L0
LIFTER, VALVE (52)
 16 Ask on WhatsApp
6
6D8–12153–M0
LIFTER, VALVE (54)
 16 Ask on WhatsApp
6
6D8–12153–N0
LIFTER, VALVE (56)
 16 Ask on WhatsApp
6
6D8–12153–P0
LIFTER, VALVE (58)
 16 Ask on WhatsApp
6
6D8–12153–R0
LIFTER, VALVE (60)
 16 Ask on WhatsApp
6
6D8–12153–S0
LIFTER, VALVE (62)
 16 Ask on WhatsApp
6
6D8–12153–T0
LIFTER, VALVE (64)
 16 Ask on WhatsApp
6
6D8–12153–U0
LIFTER, VALVE (66)
 16 Ask on WhatsApp
6
6D8–12153–V0
LIFTER, VALVE (68)
 16 Ask on WhatsApp
7
K0A–A3721–00
SEAL, VALVE STEM
 8 Ask on WhatsApp
8
K0A–A3722–00
SEAL, VALVE STEM 2
 8 Ask on WhatsApp
9
6D8–12153–00
LIFTER, VALVE (12)
 16 Ask on WhatsApp
9
6D8–12153–K0
LIFTER, VALVE (50)
 16 Ask on WhatsApp
10
6D9–12171–00
CAMSHAFT 1
 1 Ask on WhatsApp
11
6D8–12181–00
CAMSHAFT 2
 1 Ask on WhatsApp
12
93605–10108
PIN, DOWEL
 2 Ask on WhatsApp
13
67F–11537–00
GEAR, DRIVEN
 2 Ask on WhatsApp
14
90119–10050
BOLT, WITH WASHER
 2 Ask on WhatsApp
15
93102–38008
OIL SEAL
 2 Ask on WhatsApp
16
67F–46241–00
BELT
 1 Ask on WhatsApp
17
67F–11590–00
TENSIONER ASSY
 1 Ask on WhatsApp
18
90506–16M39
SPRING, TENSION
 1 Ask on WhatsApp
19
90445–15M03
HOSE (L23)
 1 Ask on WhatsApp
20
67F–11595–00
PLATE,VALVE
 1 Ask on WhatsApp
21
90119–10M72
BOLT, WITH WASHER
 1 Ask on WhatsApp
22
6D8–11536–01
GEAR, DRIVE
 1 Ask on WhatsApp
23
90170–40008
NUT
 1 Ask on WhatsApp
24
90280–04008
KEY, WOODRUFF
 1 Ask on WhatsApp
