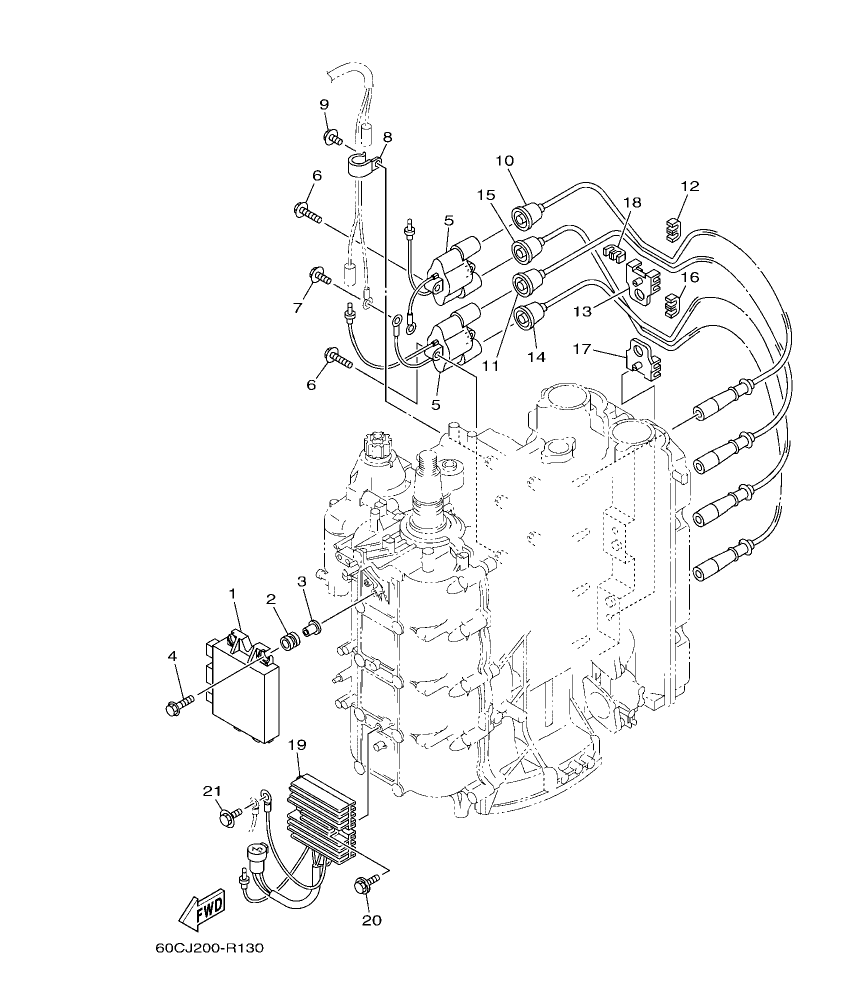

F100BET – section 13 ELECTRICAL 1 parts diagram

Diagram for section 13: ELECTRICAL 1.

Ref Part No. Qty Buy
1
67F–85540–03
C.D.I. UNIT ASSY
 1 Ask on WhatsApp
2
68V–82317–00
DAMPER, IGNITION COIL
 4 Ask on WhatsApp
3
90387–06119
COLLAR
 4 Ask on WhatsApp
4
90119–06M59
BOLT, WITH WASHER
 4 Ask on WhatsApp
5
67F–85570–00
IGNITION COIL ASSY
 2 Ask on WhatsApp
6
97595–06630
BOLT, WITH WASHER
 4 Ask on WhatsApp
7
97595–06620
BOLT, WITH WASHER
 1 Ask on WhatsApp
8
90465–06M86
CLAMP
 1 Ask on WhatsApp
9
97595–06512
BOLT, WITH WASHER
 1 Ask on WhatsApp
10
67F–82341–00
CORD, HIGH TENSION 1
 1 Ask on WhatsApp
11
67F–82342–00
CORD, HIGH TENSION 2
 1 Ask on WhatsApp
12
67F–82361–00
CLAMP, CORD
 1 Ask on WhatsApp
13
67F–82362–00
CLAMP, CORD 2
 1 Ask on WhatsApp
14
67F–82343–00
CORD, HIGH TENSION 3
 1 Ask on WhatsApp
15
67F–82344–00
CORD, HIGH TENSION 4
 1 Ask on WhatsApp
16
67F–82361–00
CLAMP, CORD
 1 Ask on WhatsApp
17
67F–82362–00
CLAMP, CORD 2
 1 Ask on WhatsApp
18
67F–82361–00
CLAMP, CORD
 1 Ask on WhatsApp
19
67F–81960–12
RECTIFIER & REGULATOR ASSY
 1 Ask on WhatsApp
20
97595–06625
BOLT, WITH WASHER
 2 Ask on WhatsApp
21
97595–06616
BOLT, WITH WASHER
 1 Ask on WhatsApp
