200GETO’03

Section 18: BRACKET 2 (v2)

Engine sections in this catalog
TOP COWLING FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CYLINDER. CRANKCASE 1 POWER TRIM & TILT ASSY 2 UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY METER SWITCH. PANEL REPAIR KIT 1 CRANKSHAFT. PISTON REPAIR KIT 2 CYLINDER. CRANKCASE 2 INTAKE CARBURETOR OIL PUMP OIL TANK FUEL 1

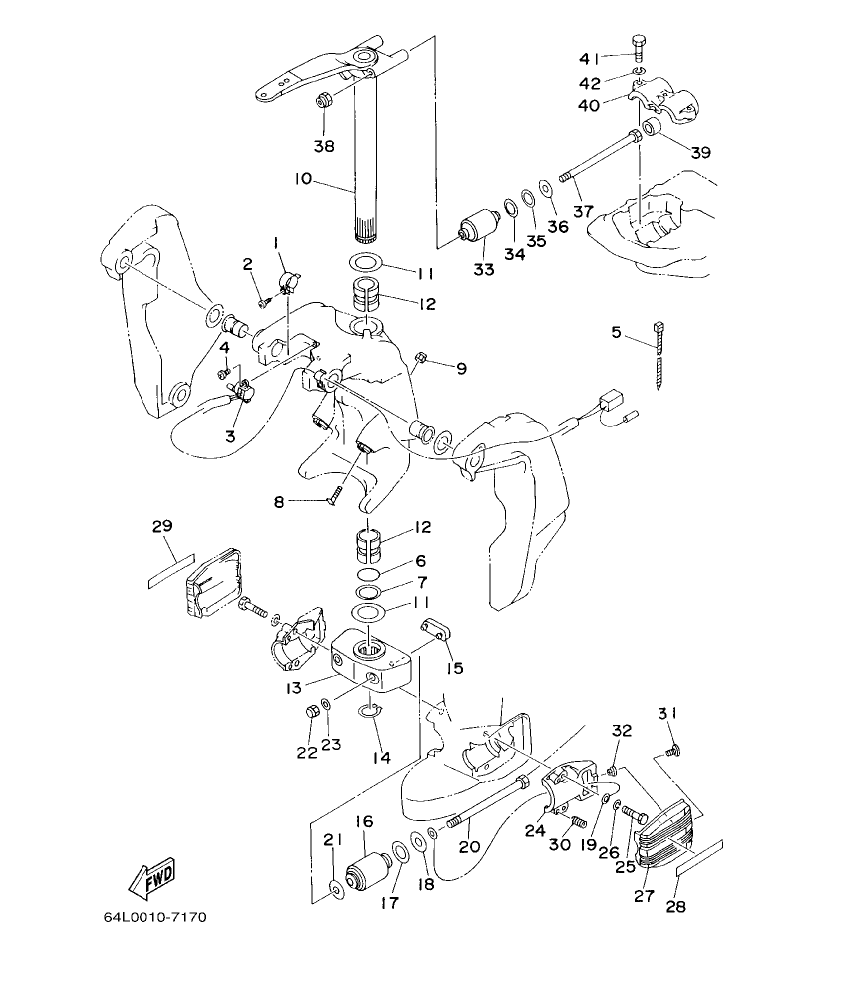

200GETO’03 – section 18 BRACKET 2 parts diagram

Diagram for section 18: BRACKET 2.

Ref Part No. Qty Buy
1
64E-43139-02
CAM, TRIM SENDER
 1 Ask on WhatsApp
2
97780-60525
SCREW, TAPPING
 1 Ask on WhatsApp
3
64E-83672-02
TRIM SENDER
 1 Ask on WhatsApp
4
97885-06016
SCREW, PAN HEAD
 2
Price: 2.98 AED
In stock (12 pcs)
5
90465-11M10
CLAMP
 3 Ask on WhatsApp
6
93210-37MH7
O-RING
 1 Ask on WhatsApp
7
90202-40M47
WASHER, PLATE
 1 Ask on WhatsApp
8
61A-43376-00
BOLT, THRUST RECEIVER
 2 Ask on WhatsApp
9
95780-10300
NUT, FLANGE
 2
Price: 22.35 AED
In stock (15 pcs)
10
6E5-42510-A1-8D
STEERING BRACKET ASSY
 1 Ask on WhatsApp
11
90201-38M60
WASHER, PLATE
 2 Ask on WhatsApp
12
90386-38M32
BUSH
 2 Ask on WhatsApp
13
6G5-44551-01-8D
HOUSING, LOWER MOUNT RUBBER
 1 Ask on WhatsApp
14
93410-37M04
CIRCLIP
 1 Ask on WhatsApp
15
6E5-44575-00
DAMPER, LOWER MOUNT RUBBER
 1 Ask on WhatsApp
16
6J9-44555-00-94
MOUNT DAMPER, LOWER SIDE
 2 Ask on WhatsApp
17
90202-32M19
WASHER, PLATE
 2 Ask on WhatsApp
18
90201-16M55
WASHER, PLATE
 2 Ask on WhatsApp
19
6E5-82149-00
WIRE, LEAD 3
 1 Ask on WhatsApp
20
90109-14M34
BOLT
 2 Ask on WhatsApp
21
90201-15M58
WASHER, PLATE
 2 Ask on WhatsApp
22
95380-14800
NUT
 2
Price: 22.35 AED
In stock (25 pcs)
23
92995-14600
WASHER
 2 Ask on WhatsApp
24
6E5-44552-01-94
HOUSING, LOWER MOUNT RUBBER
 2 Ask on WhatsApp
25
97095-10045
BOLT
 4
Price: 11.92 AED
In stock (8 pcs)
26
92995-10100
WASHER
 4 Ask on WhatsApp
27
6J9-44553-01-NA
COVER, LOWER MOUNT
 2 Ask on WhatsApp
