200GETO’03
Section 25: REMOTE CONTROL BOX (v2)
Engine sections in this catalog
TOP COWLING
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
CYLINDER. CRANKCASE 1
POWER TRIM & TILT ASSY 2
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
METER
SWITCH. PANEL
REPAIR KIT 1
CRANKSHAFT. PISTON
REPAIR KIT 2
CYLINDER. CRANKCASE 2
INTAKE
CARBURETOR
OIL PUMP
OIL TANK
FUEL 1

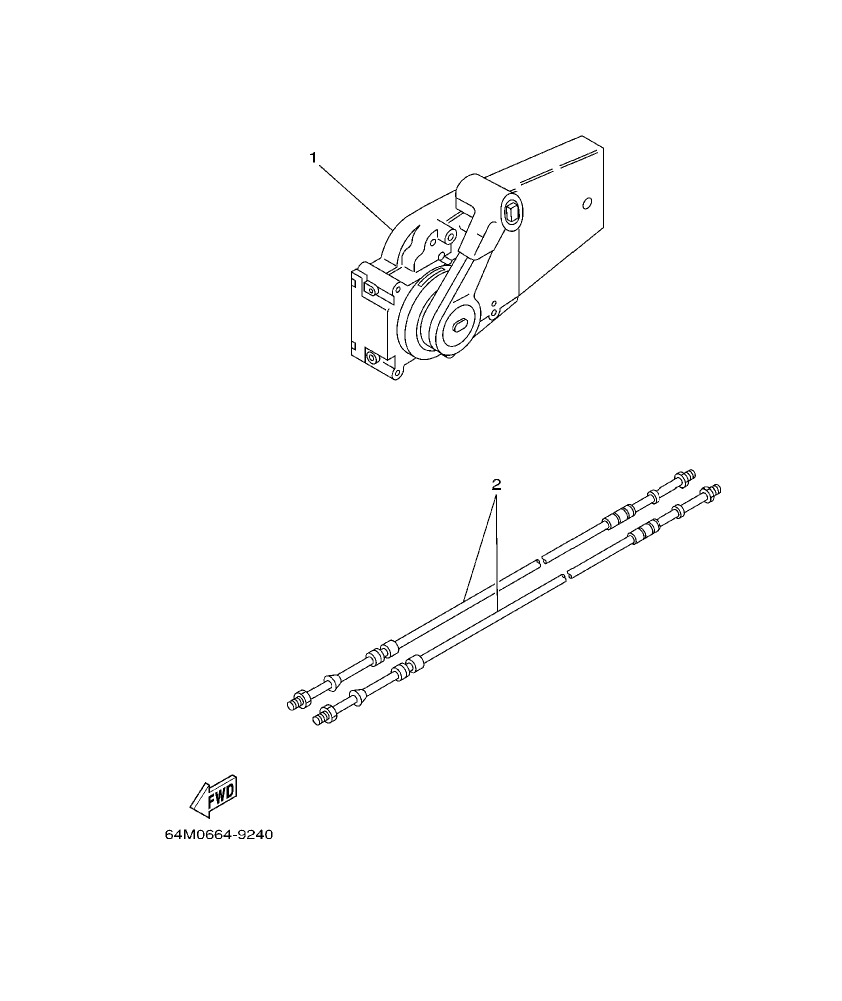

Diagram for section 25: REMOTE CONTROL BOX.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6X0-48205-12
REMOTE CONTROL ASSY
|
1 | Ask on WhatsApp |
| 2 |
701-48320-50
CABLE, REMOTE CONTROL L=15F
|
2 | Ask on WhatsApp |
| 4 |
701-48320-60
CABLE, REMOTE CONTROL L=16F
|
2 | Ask on WhatsApp |
| 5 |
701-48320-80
CABLE, REMOTE CONTROL L=17F
|
2 | Ask on WhatsApp |
| 6 |
701-48350-00
CABLE, REMOTE CONTROL L=21F
|
2 | Ask on WhatsApp |
| 7 |
701-48350-20
CABLE, REMOTE CONTROL L=23F
|
2 | Ask on WhatsApp |
