200GETO’03

Section 9: FUEL 1 (v2)

Engine sections in this catalog
TOP COWLING FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CYLINDER. CRANKCASE 1 POWER TRIM & TILT ASSY 2 UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY METER SWITCH. PANEL REPAIR KIT 1 CRANKSHAFT. PISTON REPAIR KIT 2 CYLINDER. CRANKCASE 2 INTAKE CARBURETOR OIL PUMP OIL TANK FUEL 1

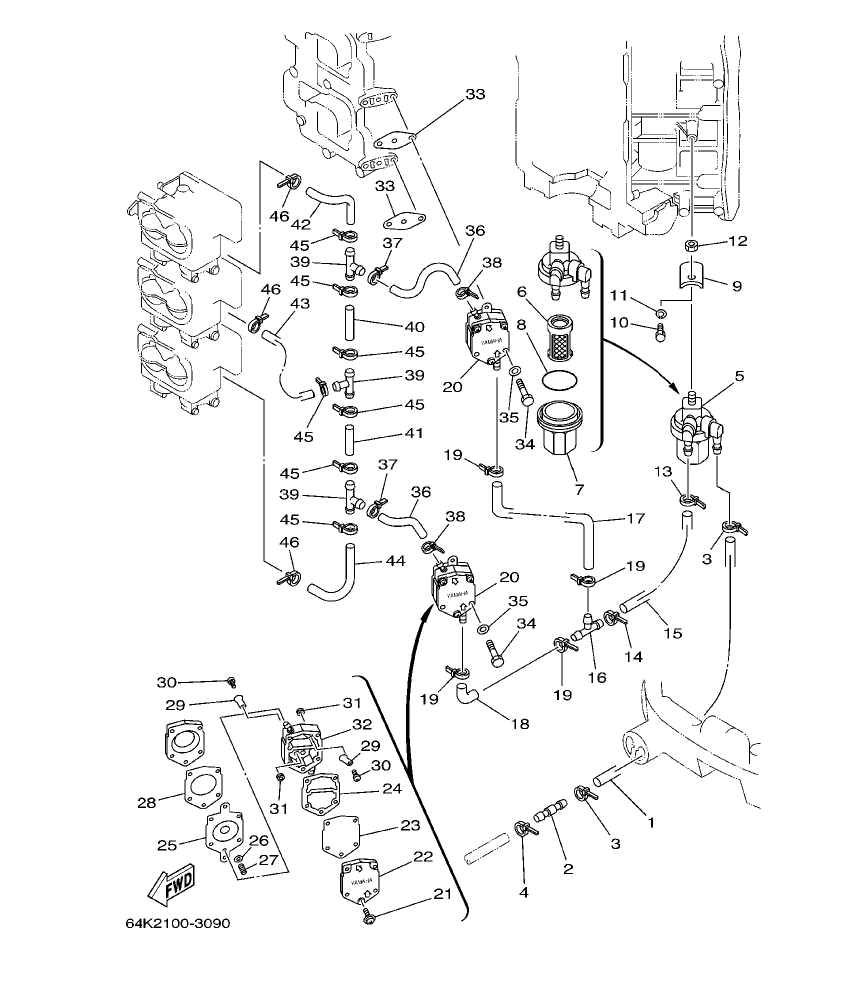

200GETO’03 – section 9 FUEL 1 parts diagram

Diagram for section 9: FUEL 1.

Ref Part No. Qty Buy
28
6E5-24434-02
.GASKET, BODY
 1 Ask on WhatsApp
29
6A0-24421-01
.VALVE, CHECK
 4 Ask on WhatsApp
30
6A0-14325-00
.SCREW, PAN HEAD
 4 Ask on WhatsApp
31
95380-03600
.NUT
 4 Ask on WhatsApp
32
6E5-24412-10
.BODY 1
 1 Ask on WhatsApp
33
650-24431-A0
GASKET, FUEL PUMP 1
 2 Ask on WhatsApp
34
97095-06050
BOLT
 4 Ask on WhatsApp
35
92995-06600
WASHER
 4 Ask on WhatsApp
36
6G5-24316-10
PIPE 6
 2 Ask on WhatsApp
37
90465-11M10
CLAMP
 2 Ask on WhatsApp
38
90465-11M10
CLAMP
 2 Ask on WhatsApp
39
6E5-24378-00
PIPE, JOINT 3
 3 Ask on WhatsApp
40
90445-13M03
HOSE (L50)
 1 Ask on WhatsApp
41
90445-13M02
HOSE (L40)
 1 Ask on WhatsApp
42
6K7-24317-00
PIPE 7
 1 Ask on WhatsApp
43
6K7-24318-00
PIPE, OVERFLOW
 1 Ask on WhatsApp
44
6K7-24319-00
PIPE, OIL
 1 Ask on WhatsApp
45
90465-11M10
CLAMP
 7 Ask on WhatsApp
46
90465-11M10
CLAMP
 3 Ask on WhatsApp
