200GETO’03

Section 21: UPPER CASING (v2)

Engine sections in this catalog
TOP COWLING FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CYLINDER. CRANKCASE 1 POWER TRIM & TILT ASSY 2 UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY METER SWITCH. PANEL REPAIR KIT 1 CRANKSHAFT. PISTON REPAIR KIT 2 CYLINDER. CRANKCASE 2 INTAKE CARBURETOR OIL PUMP OIL TANK FUEL 1

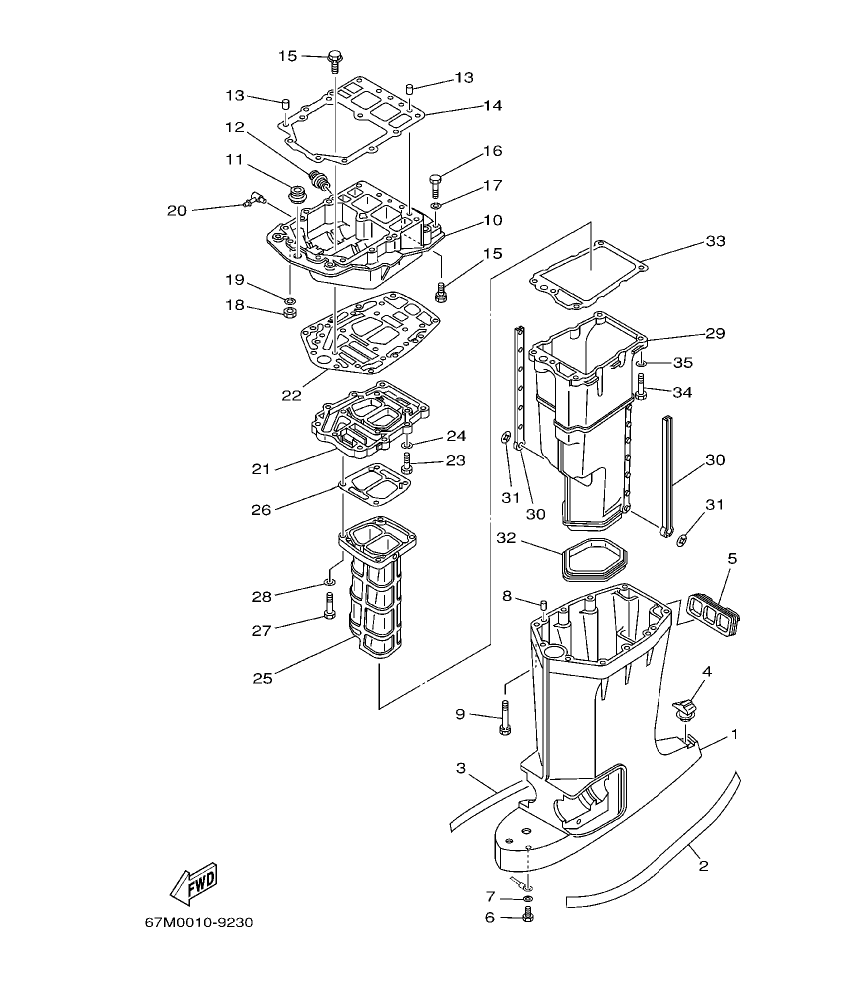

200GETO’03 – section 21 UPPER CASING parts diagram

Diagram for section 21: UPPER CASING.

Ref Part No. Qty Buy
1
6E5-45111-02-8D
CASING, UPPER
 1 Ask on WhatsApp
2
6N9-42791-40
MARK 1
 1 Ask on WhatsApp
3
6N9-42792-40
MARK
 1 Ask on WhatsApp
4
6E5-45155-00
CAP
 1 Ask on WhatsApp
5
6E5-42769-00
SEAL, RUBBER
 1 Ask on WhatsApp
6
97095-06010
BOLT
 1 Ask on WhatsApp
7
92995-06600
WASHER
 1 Ask on WhatsApp
8
93608-12M05
PIN, DOWEL
 2 Ask on WhatsApp
9
90119-08027
BOLT, WITH WASHER
 6 Ask on WhatsApp
10
6G5-41137-11-94
GUIDE, EXHAUST
 1 Ask on WhatsApp
11
6E5-42724-00
GROMMET
 1 Ask on WhatsApp
12
6G5-12581-00
JOINT, HOSE 1
 1 Ask on WhatsApp
13
93608-12M05
PIN, DOWEL
 2 Ask on WhatsApp
14
6G5-45113-A1
GASKET, UPPER CASING
 1 Ask on WhatsApp
15
90119-08M79
BOLT, WITH WASHER
 6 Ask on WhatsApp
16
97095-08045
BOLT
 2 Ask on WhatsApp
17
92995-08100
WASHER
 2 Ask on WhatsApp
18
95380-08700
NUT
 2 Ask on WhatsApp
19
92995-08100
WASHER
 2 Ask on WhatsApp
20
6H1-11372-00
NIPPLE, HOSE
 1 Ask on WhatsApp
21
6G5-41131-01-5B
MANIFOLD, EXT. 1
 1 Ask on WhatsApp
22
6G5-45114-A1
GASKET, UPPER CASING
 1 Ask on WhatsApp
23
97095-08030
BOLT
 4 Ask on WhatsApp
24
92995-08600
WASHER
 4 Ask on WhatsApp
25
64D-41132-00-5B
MANIFOLD, EXHAUST
 1 Ask on WhatsApp
26
6G5-41134-A1
GASKET, EXHAUST MANIFOLD
 1 Ask on WhatsApp
27
97095-08045
BOLT
 4 Ask on WhatsApp
