200GETO’03

Section 28: SWITCH. PANEL (v2)

Engine sections in this catalog
TOP COWLING FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CYLINDER. CRANKCASE 1 POWER TRIM & TILT ASSY 2 UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY METER SWITCH. PANEL REPAIR KIT 1 CRANKSHAFT. PISTON REPAIR KIT 2 CYLINDER. CRANKCASE 2 INTAKE CARBURETOR OIL PUMP OIL TANK FUEL 1

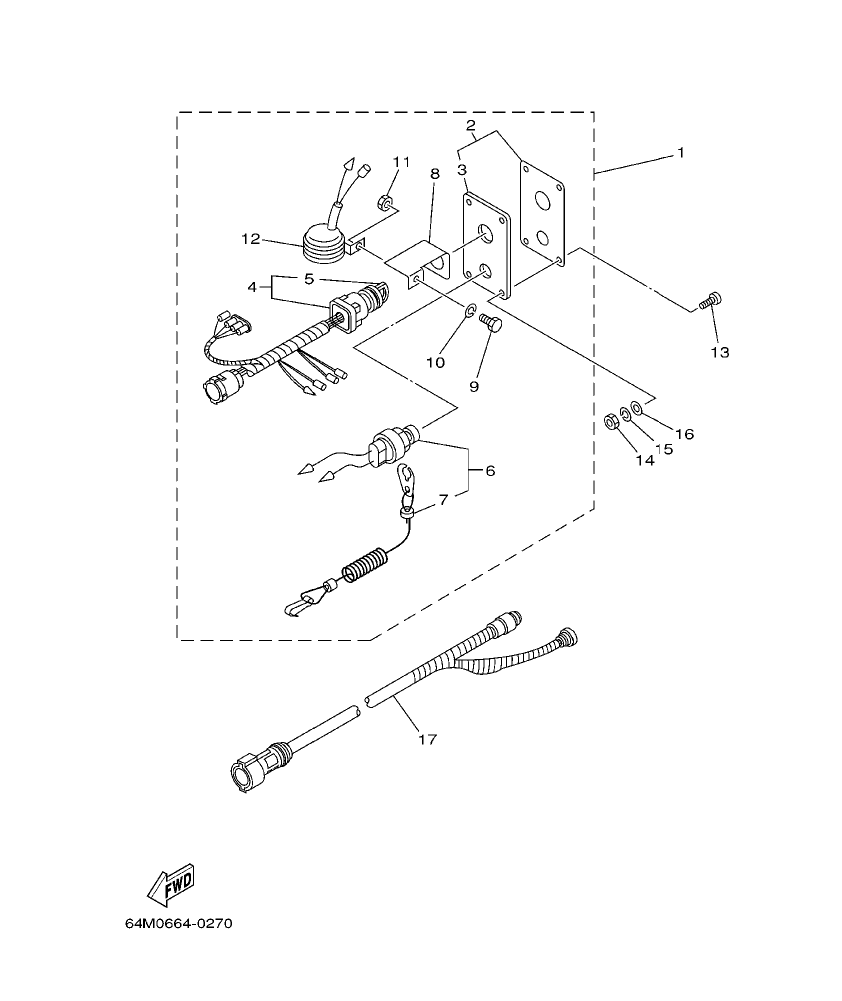

200GETO’03 – section 28 SWITCH. PANEL parts diagram

Diagram for section 28: SWITCH. PANEL.

Ref Part No. Qty Buy
1
704-82570-07
PANEL SWITCH ASSY
 1 Ask on WhatsApp
2
704-82571-01
.PANEL, SWITCH
 1 Ask on WhatsApp
3
6R5-82588-01
..PLATE
 1 Ask on WhatsApp
4
704-82510-07
.MAIN SWITCH ASSY
 1 Ask on WhatsApp
5
703-82577-00
..CAP, KEY
 1
Price: 14.15 AED
In stock (1 pcs)
6
688-82575-01
.ENGINE STOP SWITCH ASSY
 1 Ask on WhatsApp
7
682-82556-00
..STOPPER
 1
Price: 50.65 AED
In stock (70 pcs)
8
64D-82581-00
.STAY, CORD CLAMP
 1 Ask on WhatsApp
9
97303-05012
.BOLT
 1 Ask on WhatsApp
10
92903-05100
.WASHER, SPRING
 1 Ask on WhatsApp
11
95303-05700
.NUT
 1 Ask on WhatsApp
12
688-83383-11
.BUZZER
 1 Ask on WhatsApp
13
90149-05M05
SCREW
 4 Ask on WhatsApp
14
95380-05600
NUT
 4
Price: 3.72 AED
In stock (18 pcs)
15
92990-05100
WASHER, SPRING
 4
Price: 2.98 AED
In stock (3 pcs)
16
92990-05600
WASHER, PLATE
 4 Ask on WhatsApp
17
688-8258A-50
EXTENSION, WIRE HARNESS
 1 Ask on WhatsApp
