200GETO’03

Section 23: LOWER CASING. DRIVE 2 (v2)

Engine sections in this catalog
TOP COWLING FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CYLINDER. CRANKCASE 1 POWER TRIM & TILT ASSY 2 UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY METER SWITCH. PANEL REPAIR KIT 1 CRANKSHAFT. PISTON REPAIR KIT 2 CYLINDER. CRANKCASE 2 INTAKE CARBURETOR OIL PUMP OIL TANK FUEL 1

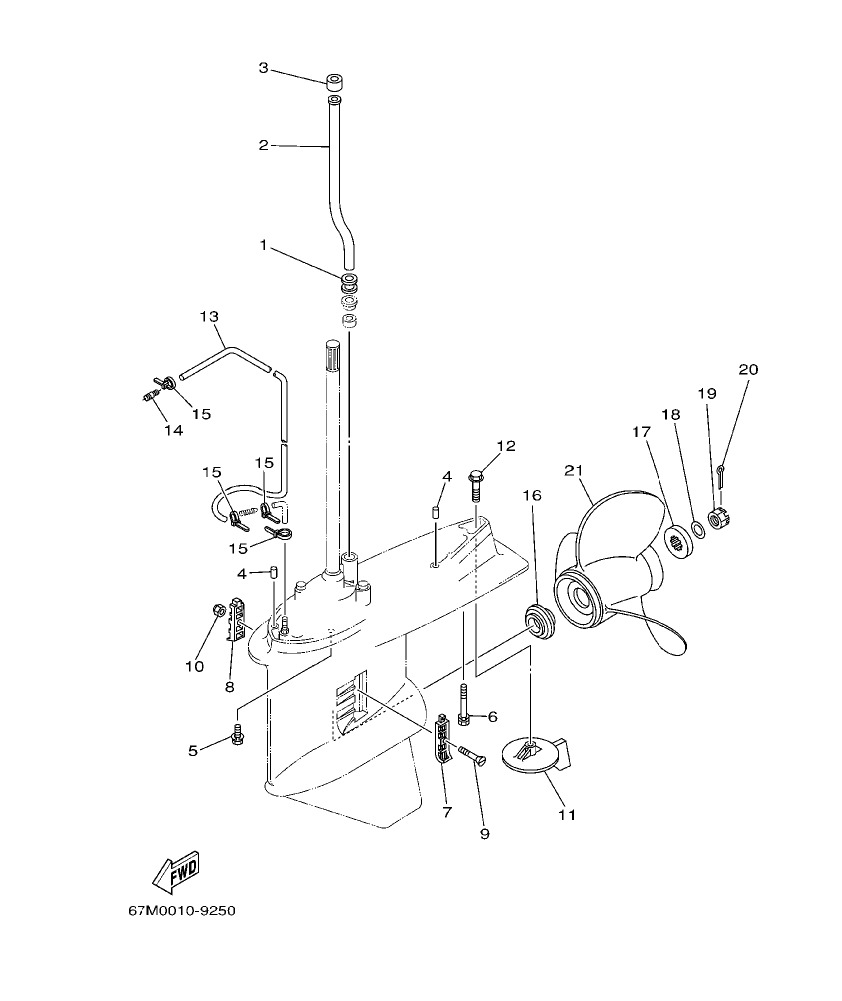

200GETO’03 – section 23 LOWER CASING. DRIVE 2 parts diagram

Diagram for section 23: LOWER CASING. DRIVE 2.

Ref Part No. Qty Buy
1
6E5-44366-00
DAMPER, WATER SEAL
 1 Ask on WhatsApp
2
6E5-44361-00
TUBE, WATER
 1 Ask on WhatsApp
3
6E5-44365-00
DAMPER, WATER SEAL
 1 Ask on WhatsApp
4
93608-12M05
PIN, DOWEL
 2 Ask on WhatsApp
5
90101-10M70
BOLT
 6 Ask on WhatsApp
6
90119-10M89
BOLT, WITH WASHER
 1 Ask on WhatsApp
7
6J9-45214-00
COVER, WATER INLET
 1 Ask on WhatsApp
8
6J9-45215-00
COVER, WATER INLET
 1 Ask on WhatsApp
9
90152-05M08
SCREW, COUNTERSUNK
 1 Ask on WhatsApp
10
90185-05002
NUT, SELF-LOCKING
 1 Ask on WhatsApp
11
6J9-45371-01
TAB-TRIM
 1 Ask on WhatsApp
12
90105-10M00
BOLT, FLANGE
 1 Ask on WhatsApp
13
90445-07M33
HOSE (L1080)
 1 Ask on WhatsApp
14
6E5-83558-00
END, NIPPLE
 1 Ask on WhatsApp
15
90465-11M10
CLAMP
 4 Ask on WhatsApp
16
6E5-45987-01
SPACER
 1 Ask on WhatsApp
17
688-45997-01
SPACER
 1
Price: 58.85 AED
In stock (221 pcs)
18
92990-18200
WASHER
 1
Price: 8.94 AED
In stock (10 pcs)
19
90171-18M04
NUT, CASTLE
 1 Ask on WhatsApp
20
91490-40030
PIN, COTTER
 1
Price: 4.47 AED
In stock (2 pcs)
21
6J9-45970-10
PROPELLER (3X14-1/2 X25 -M)
 1 Ask on WhatsApp
23
6J9-45972-10
PROPELLER (3X14-1/2 X23 -M)
 1 Ask on WhatsApp
24
6J9-45974-10
PROPELLER (3X14-1/2 X27 -M)
 1 Ask on WhatsApp
25
6J9-45976-10
PROPELLER (3X14-1/2 X21 -M)
 1 Ask on WhatsApp
