Section 8: OIL TANK (v2)

Engine sections in this catalog
TOP COWLING FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CYLINDER. CRANKCASE 1 POWER TRIM & TILT ASSY 2 UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY METER SWITCH. PANEL REPAIR KIT 1 CRANKSHAFT. PISTON REPAIR KIT 2 CYLINDER. CRANKCASE 2 INTAKE CARBURETOR OIL PUMP OIL TANK FUEL 1
200GETO’03 – section 8 OIL TANK parts diagram

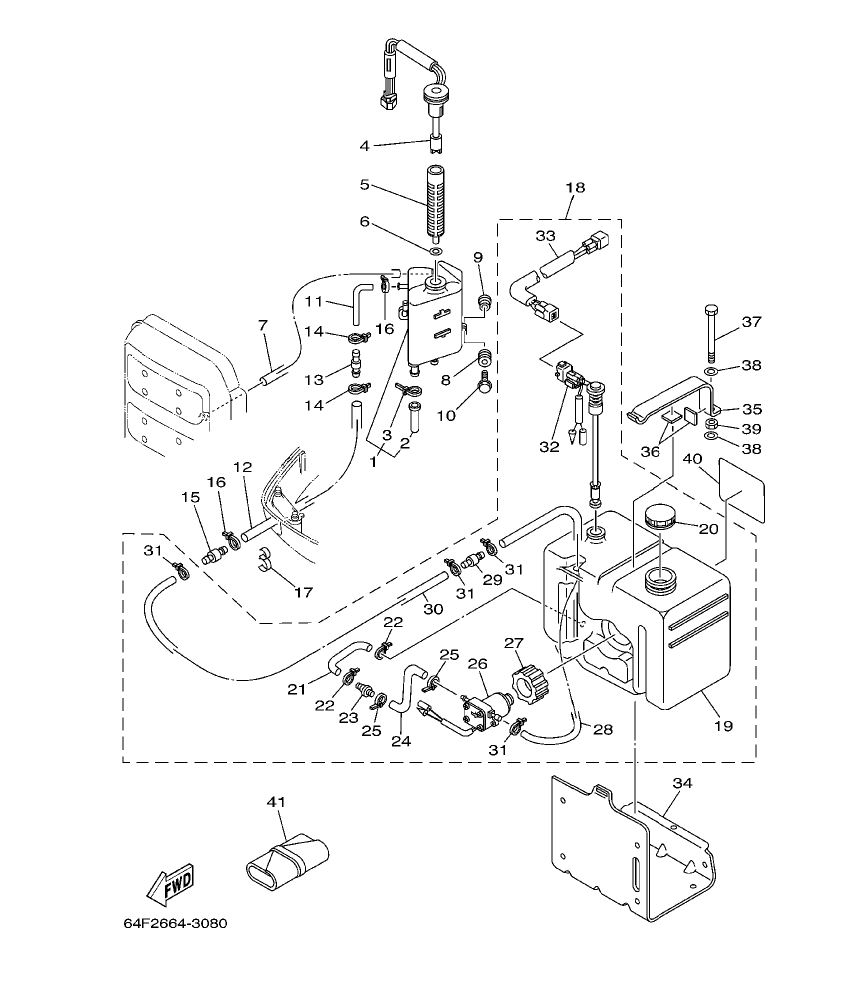

Diagram for section 8: OIL TANK.

Ref Part No. Qty Buy
1
6E5-21750-05
OIL TANK ASSY
 1 Ask on WhatsApp
2
6E5-13448-00
.CAP
 1 Ask on WhatsApp
3
90465-13M11
.CLAMP
 1 Ask on WhatsApp
4
6R3-85730-03
OIL LEVEL GAUGE ASSY
 1 Ask on WhatsApp
5
6E5-13411-00
STRAINER, OIL
 1 Ask on WhatsApp
6
6E5-13414-00
GASKET, STRAINER COVER
 1 Ask on WhatsApp
7
90445-05M02
HOSE (L380)
 1 Ask on WhatsApp
8
6A0-82317-00
DAMPER, IGNITION COIL
 3 Ask on WhatsApp
9
624-42542-00
PIPE
 3 Ask on WhatsApp
10
90119-06M65
BOLT, WITH WASHER
 3 Ask on WhatsApp
11
64E-24323-00
PIPE 12
 1 Ask on WhatsApp
12
90445-12M13
HOSE (L880)
 1 Ask on WhatsApp
13
6E5-24379-00
PIPE, JOINT 4
 1 Ask on WhatsApp
14
90465-11M10
CLAMP
 2 Ask on WhatsApp
15
6E5-24379-00
PIPE, JOINT 4
 1 Ask on WhatsApp
16
90465-11M10
CLAMP
 2 Ask on WhatsApp
17
90464-13M34
CLAMP
 1 Ask on WhatsApp
18
6E5-21708-10
SUB OIL TANK ASSY
 1 Ask on WhatsApp
19
6E5-21733-20
.SUB TANK, OIL (10.5L)
 1 Ask on WhatsApp
20
6E5-21770-03
.OIL TANK CAP ASSY
 1 Ask on WhatsApp
21
6E5-24322-00
.PIPE 11
 1 Ask on WhatsApp
22
90465-11M10
.CLAMP
 2 Ask on WhatsApp
23
646-24251-02
.STRAINER 1
 1
Price: 24.99 AED
In stock (1 pcs)
24
6E5-24319-01
.PIPE, OIL
 1 Ask on WhatsApp
25
90465-11M10
.CLAMP
 2 Ask on WhatsApp
26
6E5-81900-01
.OIL FEED PUMP ASSY
 1 Ask on WhatsApp
27
6E5-81922-00
.GROMMET
 1 Ask on WhatsApp
