200GETO’03
Section 26: REMOTE CONTROL ASSY (v2)
Engine sections in this catalog
TOP COWLING
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
CYLINDER. CRANKCASE 1
POWER TRIM & TILT ASSY 2
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
METER
SWITCH. PANEL
REPAIR KIT 1
CRANKSHAFT. PISTON
REPAIR KIT 2
CYLINDER. CRANKCASE 2
INTAKE
CARBURETOR
OIL PUMP
OIL TANK
FUEL 1

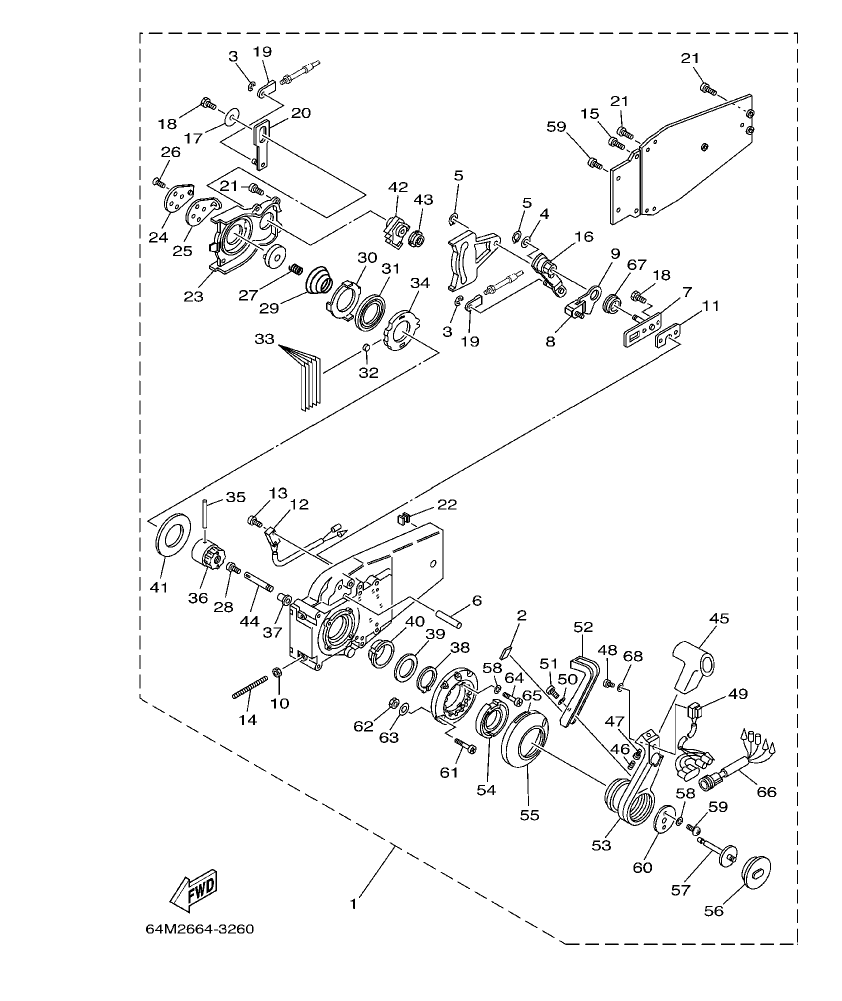

Diagram for section 26: REMOTE CONTROL ASSY.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6X0-48205-12
REMOTE CONTROL ASSY
|
1 | Ask on WhatsApp |
| 2 |
6X0-48138-00
.CAP, LOCK ARM
|
1 | Ask on WhatsApp |
| 3 |
93430-06024
.CIRCLIP
|
3 |
Price:
5.96 AED
In stock
(96 pcs)
|
| 4 |
92990-10600
.WASHER, PLATE
|
1 |
Price:
2.98 AED
In stock
(217 pcs)
|
| 5 |
EL8-48259-00
.CIRCLIP 1
|
2 | Ask on WhatsApp |
| 6 |
6X0-48265-00
.SHAFT, FRICTION
|
1 | Ask on WhatsApp |
| 7 |
6X0-48262-00
.SHAFT, THROTTLE
|
1 | Ask on WhatsApp |
| 8 |
6X0-48264-00
.THROTTLE, FRICTION
|
1 | Ask on WhatsApp |
| 9 |
6X0-48187-00
.PLATE, ADJUST
|
1 | Ask on WhatsApp |
| 10 |
95380-06600
.NUT, HEXAGON
|
1 |
Price:
3.72 AED
In stock
(5 pcs)
|
| 11 |
704-48266-00
.SPACER
|
1 | Ask on WhatsApp |
| 12 |
704-82540-00
.NEUTRAL SWITCH ASSY
|
1 | Ask on WhatsApp |
| 13 |
98580-03015
.SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
| 14 |
EL8-48281-00
.SCREW
|
1 | Ask on WhatsApp |
| 15 |
97890-05025
.SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
| 16 |
6X0-48261-00
.ARM, THROTTLE
|
1 | Ask on WhatsApp |
| 17 |
EL8-48191-00
.WASHER 1
|
1 | Ask on WhatsApp |
| 18 |
97380-06018
.BOLT
|
3 | Ask on WhatsApp |
| 19 |
703-48345-01
.CABLE END, REMOTE CONTROL 2
|
2 |
Price:
17.13 AED
In stock
(334 pcs)
|
| 20 |
EL8-48271-00
.ARM, SHIFT
|
1 | Ask on WhatsApp |
| 21 |
EL8-48127-00
.SCREW 1
|
9 | Ask on WhatsApp |
| 22 |
703-48358-00
.ANCHOR, CABLE
|
1 | Ask on WhatsApp |
| 23 |
EL8-48231-00
.HOUSING, GEAR
|
1 | Ask on WhatsApp |
| 24 |
6X0-48241-00
.ARM, DRIVE
|
1 | Ask on WhatsApp |
| 25 |
EL8-48254-00
.STOPPER, THROTTLE ADJUSTING
|
1 | Ask on WhatsApp |
| 26 |
92780-06020
.SCREW, FLAT HEAD
|
2 | Ask on WhatsApp |
| 27 |
EL8-48158-00
.SPRING 1
|
1 | Ask on WhatsApp |
| 28 |
98580-04006
.SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 29 |
EL8-48244-00
.SPRING, FREE ACCEL.
|
1 | Ask on WhatsApp |
| 30 |
EL8-48245-00
.PLATE, LOCK
|
1 | Ask on WhatsApp |
| 31 |
704-48178-00
.PLATE, SHIFT
|
1 | Ask on WhatsApp |
| 32 |
701-48248-00
.ROLLER, FREE ACCEL.
|
1 | Ask on WhatsApp |
| 33 |
704-48238-00
.SPRING, DETENT
|
5 | Ask on WhatsApp |
| 34 |
6X0-48121-00
.GEAR 1
|
1 | Ask on WhatsApp |
| 35 |
EL8-48164-00
.PIN 2
|
1 | Ask on WhatsApp |
| 36 |
EL8-48242-10
.SHAFT, DRIVE
|
1 | Ask on WhatsApp |
| 37 |
702-48263-00
.BUSHING
|
1 | Ask on WhatsApp |
| 38 |
EL8-48279-00
.CIRCLIP 2
|
1 | Ask on WhatsApp |
| 39 |
704-48193-00
.WASHER 3
|
1 | Ask on WhatsApp |
| 40 |
EL8-48234-00
.BUSHING 1
|
1 | Ask on WhatsApp |
| 41 |
703-48192-00
.WASHER 2
|
1 | Ask on WhatsApp |
| 42 |
EL8-48233-00
.GEAR 2
|
1 | Ask on WhatsApp |
| 43 |
702-48235-00
.BUSHING
|
1 | Ask on WhatsApp |
| 44 |
6X0-48153-00
.SHAFT, FREE ACCEL.
|
1 | Ask on WhatsApp |
| 45 |
6X0-48222-00
.GRIP, CONTROL LEVER
|
1 | Ask on WhatsApp |
| 46 |
703-48227-00
.SPRING, NEUTRAL LOCK
|
1 | Ask on WhatsApp |
| 47 |
98580-05008
.SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 48 |
98580-04010
.SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 49 |
6X0-82563-01
.TRIM & TILT SWITCH ASSY
|
1 | Ask on WhatsApp |
| 50 |
6X0-48288-00
.WASHER, PLAIN
|
1 | Ask on WhatsApp |
| 51 |
6X0-48127-00
.SCREW 1
|
1 | Ask on WhatsApp |
| 52 |
6X0-48223-00
.LOCK, NEUTRAL
|
1 | Ask on WhatsApp |
| 53 |
6X0-48221-00
.LEVER, CONTROL
|
1 | Ask on WhatsApp |
| 54 |
6X0-48245-00
.PLATE, LOCK
|
1 | Ask on WhatsApp |
