FX1100-F

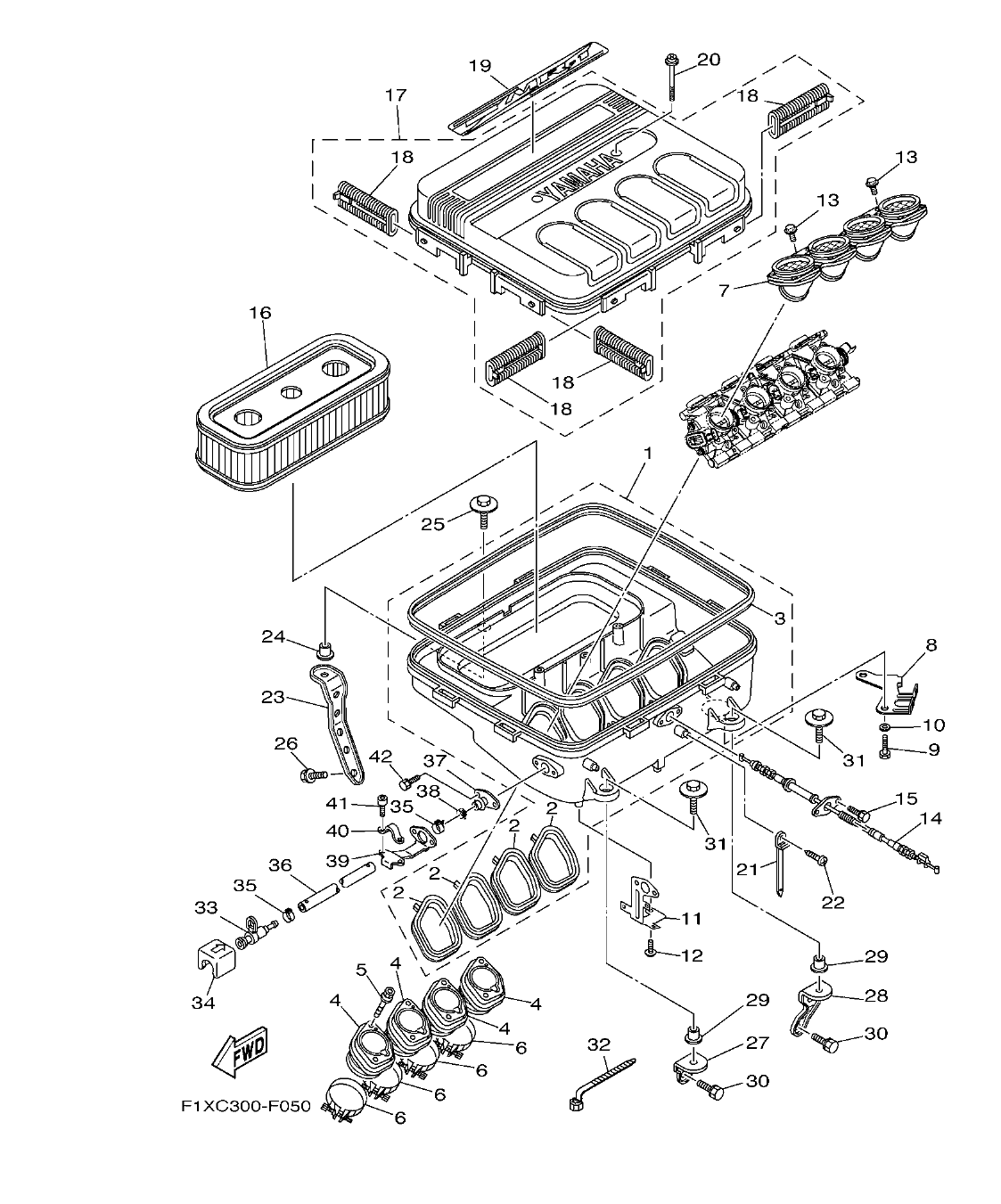

Section 5: INTAKE (v2)
Model code: F1XF
Parts list
Section 5
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
60E-14410-02
AIR CLEANER ASSY.
|
1 | |
| 2 |
60E-14239-00
.SEAL
|
4 | |
| 3 |
60E-14457-00
.SEAL
|
1 | |
| 4 |
60E-13795-00
JOINT, THROTTLE BODY 1
|
4 | |
| 5 |
90110-08020
BOLT, HEXAGON SOCKET HEAD
|
8 | |
| 6 |
90450-57015
HOSE CLAMP ASSY
|
4 | |
| 7 |
60E-1440A-02
RIBBON, SUB ASSY
|
1 | |
| 8 |
6B6-14869-00
BRACKET 3
|
1 | |
| 9 |
97013-06016
BOLT
|
2 | |
| 10 |
92903-06600
WASHER, PLATE
|
2 | |
| 11 |
60E-14867-00
BRACKET
|
1 | |
| 12 |
90160-05003
SCREW, ROUND TAPPING
|
1 | |
| 13 |
90109-06053
BOLT
|
4 | |
| 14 |
6B6-26311-12
CABLE, THROTTLE 1
|
1 | |
| 15 |
90119-06078
BOLT, WITH WASHER
|
2 | |
| 16 |
6B6-14451-01
ELEMENT, AIR CLEANER
|
1 |
540.16 AED
Check price & stock on WhatsApp
|
| 17 |
6B6-14420-00
AIR CLEANER ASSY 2
|
1 | |
| 18 |
66V-13898-00
.HOLDER
|
8 | |
| 19 |
6B6-2339F-00
GRAPHIC 2
|
1 | |
| 20 |
90159-05006
SCREW, WITH WASHER
|
2 | |
| 21 |
90465-12M53
CLAMP
|
3 | |
| 22 |
90160-05003
SCREW, ROUND TAPPING
|
3 | |
| 23 |
60E-14413-00
STAY
|
1 | |
| 24 |
60E-14449-00-94
COLLAR
|
1 | |
| 25 |
90119-08050
BOLT, WITH WASHER
|
1 | |
| 26 |
90119-08032
BOLT, WITH WASHER
|
1 | |
| 27 |
6AA-14414-00
STAY 2
|
1 | |
| 28 |
60E-14414-00
STAY 2
|
1 | |
| 29 |
60E-14449-00-94
COLLAR
|
2 | |
| 30 |
90119-08050
BOLT, WITH WASHER
|
2 | |
| 31 |
90119-08032
BOLT, WITH WASHER
|
2 | |
| 32 |
90464-20005
CLAMP
|
2 | |
| 33 |
60E-24300-01
FUEL PIPE JOINT
|
1 | |
| 34 |
60E-24474-00
COVER
|
1 | |
| 35 |
90450-17M17
HOSE CLAMP ASSY
|
2 | |
| 36 |
60E-14294-00
HOSE
|
1 | |
| 37 |
60E-24329-00
SEAL
|
1 | |
| 38 |
90467-090A4
CLIP
|
1 | |
| 39 |
60E-24364-00
STAY
|
1 | |
| 40 |
60E-24366-00
CLAMP, FUEL PIPE 1
|
1 | |
| 41 |
91380-04008
BOLT
|
2 | |
| 42 |
97513-06516
BOLT, WITH WASHER
|
2 |
