FX1100-F

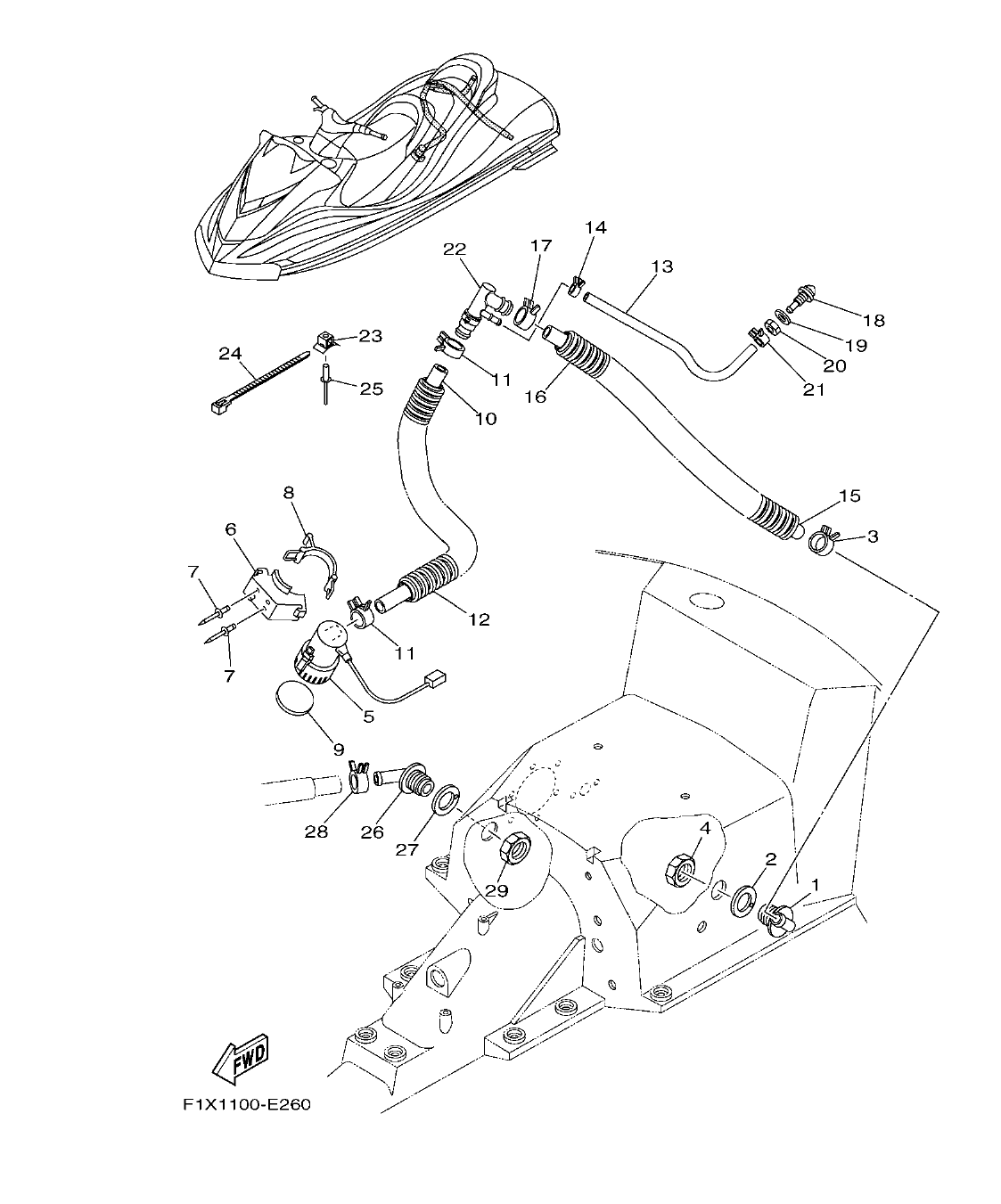

Section 26: BILGE PUMP (v2)
Model code: F1XF
Parts list
Section 26
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
F1B-6224E-00
BODY, DRAIN 3
|
1 | |
| 2 |
F1S-U7525-01
PACKING
|
1 | |
| 3 |
90467-250A0
CLIP
|
1 | |
| 4 |
F1B-62241-00
DRAIN, COCKPIT
|
1 | |
| 5 |
F1B-U8360-01
BILGE PUMP ASSY
|
1 | |
| 6 |
F1B-U7698-01
BRACKET
|
1 | |
| 7 |
90267-489UP
RIVET, BLIND
|
2 | |
| 8 |
GA7-68218-00
BAND, BATTERY
|
1 | |
| 9 |
F1B-U7656-00
PACKING, BILGE
|
1 | |
| 10 |
F1B-U7626-00
HOSE 1
|
1 | |
| 11 |
90467-210A0
CLIP
|
2 | |
| 12 |
90447-28004
HOSE, WITH SPRING (L800)
|
1 | |
| 13 |
F1B-U7629-00
HOSE, DRAIN 2
|
1 | |
| 14 |
90467-140A1
CLIP
|
1 | |
| 15 |
F1B-U7628-00
HOSE, DRAIN 3
|
1 | |
| 16 |
90447-28004
HOSE, WITH SPRING (L800)
|
1 | |
| 17 |
90467-250A0
CLIP
|
1 | |
| 18 |
GH7-6753B-00
PILOT,WATER
|
1 | |
| 19 |
90430-16910
GASKET
|
1 | |
| 20 |
GP7-61652-00
NUT
|
1 | |
| 21 |
90467-140A1
CLIP
|
1 | |
| 22 |
F1S-67620-00
HOSE JOINT
|
1 | |
| 23 |
90600-917U4
CLAMP COMP.
|
1 | |
| 24 |
90464-32801
CLAMP
|
1 | |
| 25 |
90267-489U6
RIVET, BLIND
|
1 | |
| 26 |
F1B-6224E-00
BODY, DRAIN 3
|
1 | |
| 27 |
F1S-U7525-01
PACKING
|
1 | |
| 28 |
90467-250A0
CLIP
|
1 | |
| 29 |
F1B-62241-00
DRAIN, COCKPIT
|
1 |
