FX1100-F
Section 14: GENERATOR (v2)
Model code: F1XF

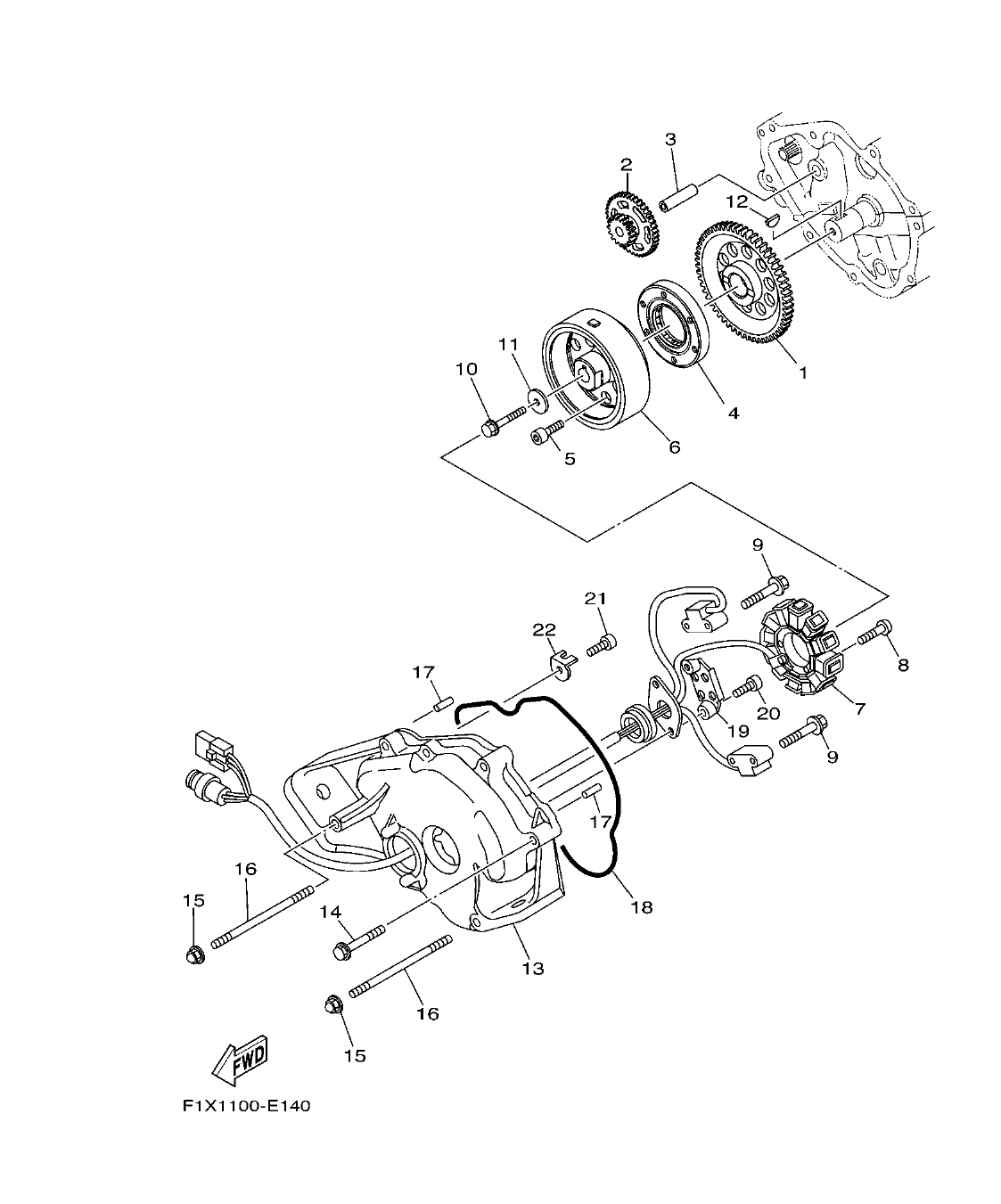

Parts list
Section 14
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6D3-15515-00
GEAR 3
|
1 | |
| 2 |
60E-15517-00
GEAR, IDLER 2
|
1 | |
| 3 |
60E-15521-00
SHAFT 1
|
1 | |
| 4 |
4WM-15590-00
STARTER ONE-WAY ASSY
|
1 | |
| 5 |
90110-08212
BOLT, HEXAGON SOCKET HEAD
|
6 | |
| 6 |
60E-81450-00
ROTOR ASSY
|
1 | |
| 7 |
60E-81410-01
STATOR ASSY
|
1 | |
| 8 |
90149-06013
SCREW
|
3 | |
| 9 |
97513-05514
BOLT, WITH WASHER
|
4 | |
| 10 |
90105-105A6
BOLT, FLANGE
|
1 | |
| 11 |
90201-103U7
WASHER, PLATE
|
1 | |
| 12 |
90280-03047
KEY, WOODRUFF
|
1 | |
| 13 |
6B6-81337-00-94
COVER, FLYWHEEL
|
1 | |
| 14 |
90119-10016
BOLT, WITH WASHER
|
6 | |
| 15 |
90176-10001
NUT, CROWN
|
2 | |
| 16 |
90116-10024
BOLT, STUD
|
2 | |
| 17 |
93608-16M16
PIN, DOWEL
|
2 | |
| 18 |
93212-04001
O-RING
|
1 |
52.14 AED
Check price & stock on WhatsApp
|
| 19 |
60E-81328-00
CLAMP
|
1 | |
| 20 |
91317-06014
BOLT
|
2 |
2.86 AED
Check price & stock on WhatsApp
|
| 21 |
91317-05010
BOLT
|
3 | |
| 22 |
6D3-81845-00
PLATE
|
3 |
