FX1100-F

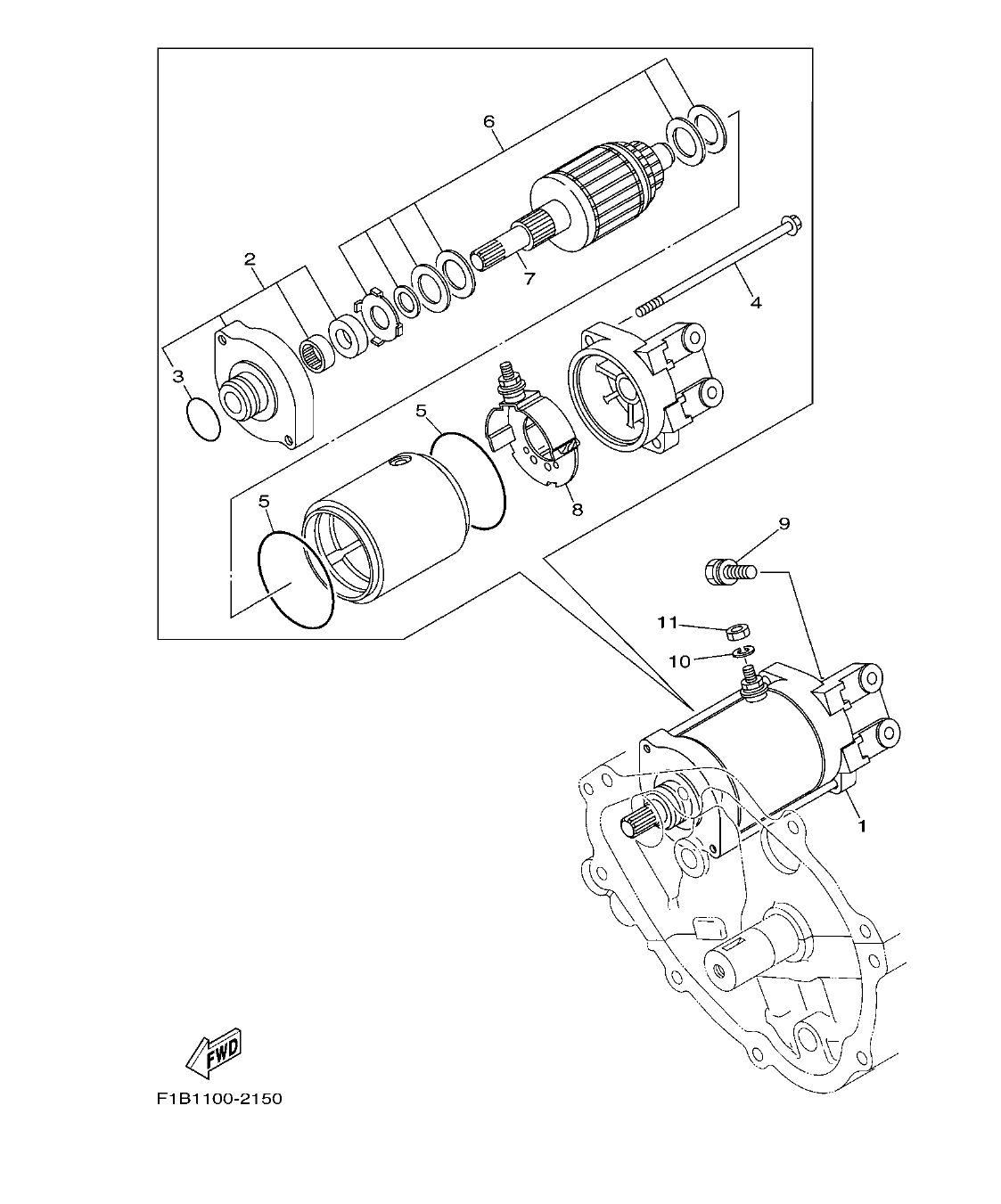

Section 15: STARTING MOTOR (v2)
Model code: F1XF
Parts list
Section 15
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
60E-81800-00
STARTING MOTOR ASSY
|
1 | |
| 2 |
6M6-81830-00
.FRONT BRACKET ASSY
|
1 | |
| 3 |
1FK-81847-00
..O-RING
|
1 | |
| 4 |
6M6-81826-00
.BOLT
|
2 | |
| 5 |
11H-81844-00
.GASKET
|
2 | |
| 6 |
3AJ-81809-00
.WASHER KIT
|
1 | |
| 7 |
6M6-81850-00
.ARMATURE ASSY
|
1 | |
| 8 |
6M6-81840-10
.BRUSH HOLDER ASSY
|
1 | |
| 9 |
97513-08530
BOLT, WITH WASHER
|
2 | |
| 10 |
92990-06100
WASHER, SPRING
|
1 | |
| 11 |
95380-06700
NUT
|
1 |
