F250HET'21

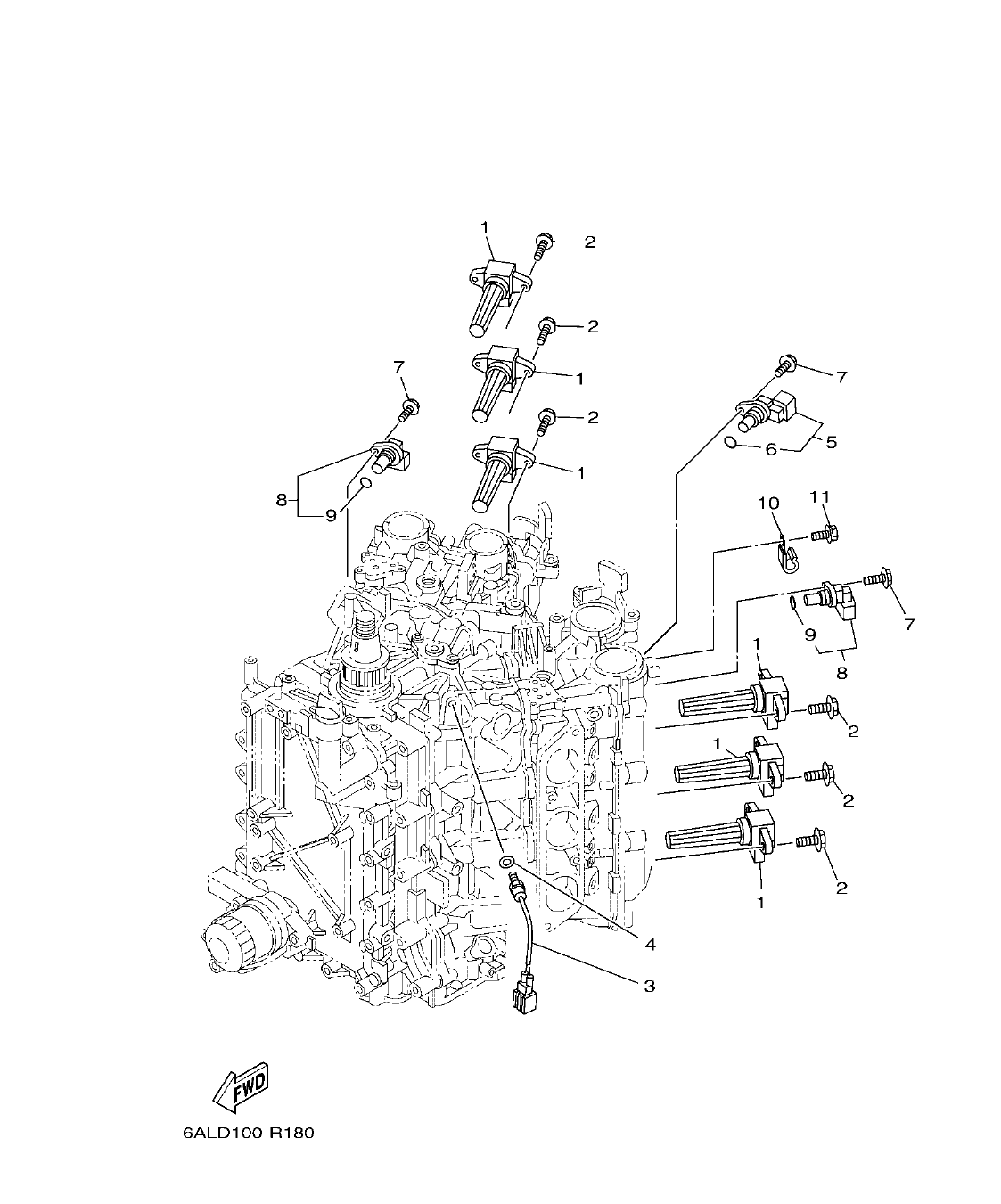

Section 18: ELECTRICAL 1 EQUIPO ELECTRICO 1 (v2)
Model code: 6FJ5
Parts list
Section 18
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6P2-82310-01
IGNITION COIL ASSY 6
|
6 | |
| 2 |
97E95-06520
BOLT, HEXAGON W/W DEEP RECESS 12
|
12 | |
| 3 |
61A-85790-00
THERMOSENSOR ASSY 1
|
1 | |
| 4 |
92990-10600
WASHER, PLATE 1
|
1 | |
| 5 |
6P2-85896-00
SENSOR, CAM POSITION 1
|
1 | |
| 6 |
6P2-85075-00
.O-RING 1
|
1 | |
| 7 |
97E95-06520
BOLT, HEXAGON W/W DEEP RECESS 3
|
3 | |
| 8 |
6P2-85897-00
SENSOR, CAM POSITION 2 2
|
2 | |
| 9 |
6P2-85075-00
.O-RING 1
|
1 | |
| 10 |
90462-08032
CLAMP 1
|
1 | |
| 11 |
97E95-06512
BOLT, HEXAGON W/W DEEP RECESS 1
|
1 |
