F250HET'21
Section 40: REMOTE CONTROL ASSY 2 CONTROL REMOTO COMPL 2 (v2)
Model code: 6FJ5
Section 40 β REMOTE CONTROL ASSY 2 CONTROL REMOTO COMPL 2
F250HET'21
100%

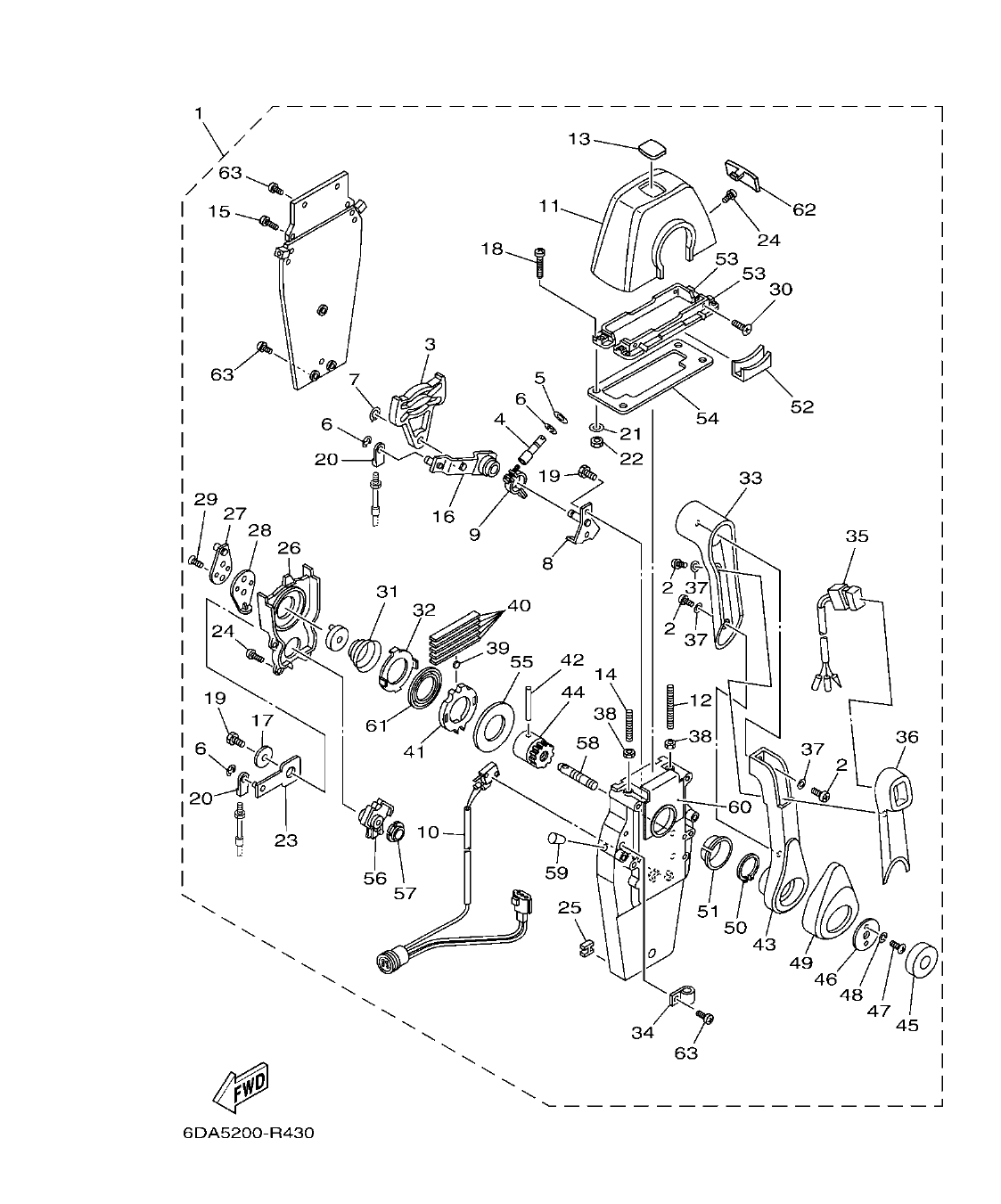

Diagram image
Open full size
Parts list
Section 40
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 2 |
704-48129-11
.SCREW
|
3 | |
| 7 |
EL8-48259-00
.CIRCLIP
|
1 | |
| 17 |
EL8-48191-00
.WASHER
|
1 | |
| 20 |
703-48345-01
.CABLE END, REMOTE CONTROL
|
2 | |
| 24 |
EL8-48127-00
.SCREW
|
1 | |
| 42 |
EL8-48164-00
.PIN
|
2 | |
| 46 |
704-48192-00
.WASHER
|
2 | |
| 50 |
EL8-48279-00
.CIRCLIP
|
2 | |
| 51 |
704-48234-00
.BUSHING
|
1 | |
| 53 |
704-48144-10
.PLATE, STOPPER
|
2 | |
| 55 |
704-48192-P0
.WASHER
|
2 | |
| 56 |
704-48233-00
.GEAR
|
2 |
