F250HET'21
Section 28: POWER TRIM & TILT ASSY 1 COMPONER Y PODER VARILLA 1 (v2)
Model code: 6FJ5
Section 28 β POWER TRIM & TILT ASSY 1 COMPONER Y PODER VARILLA 1
F250HET'21
100%

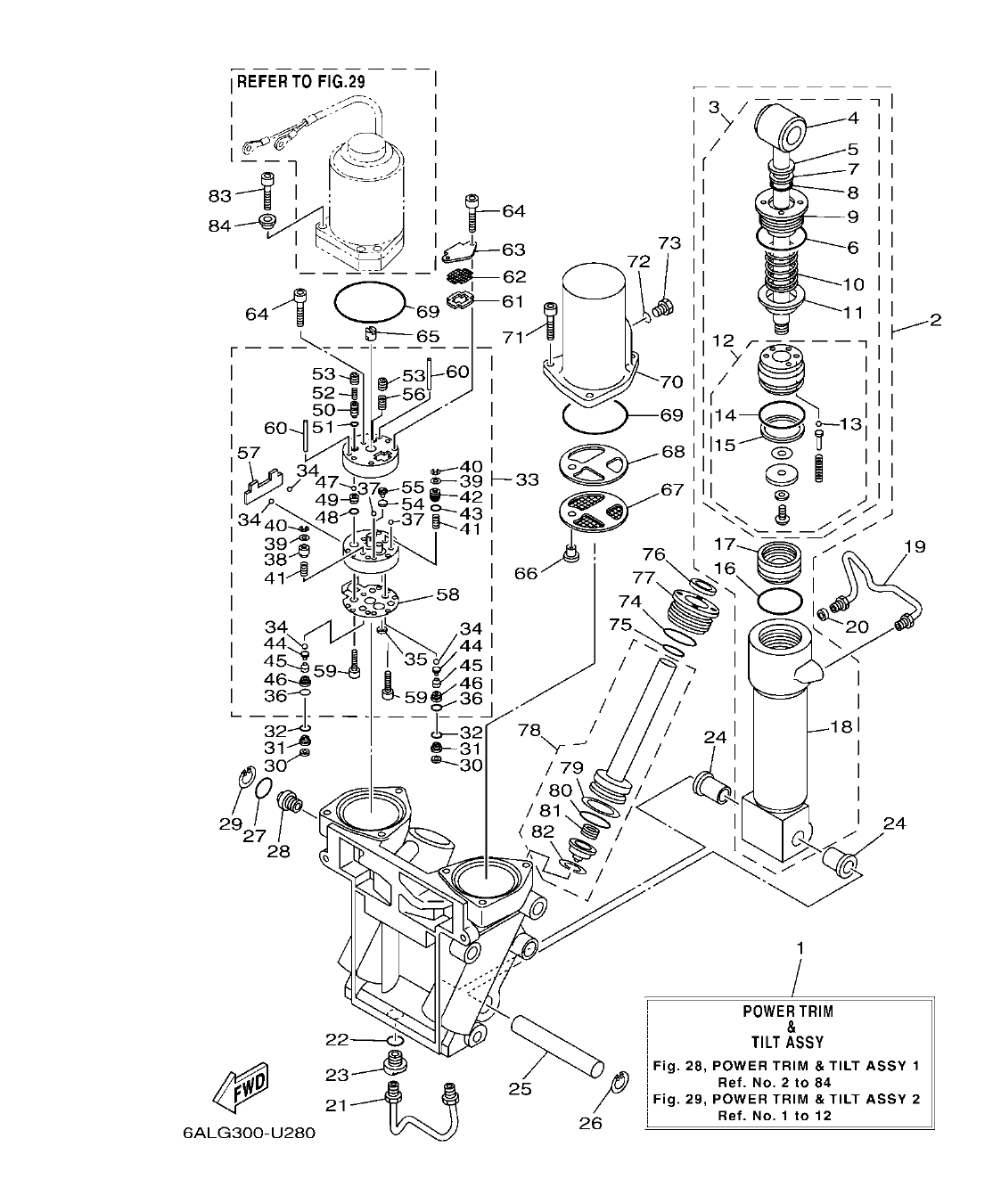

Diagram image
Open full size
Parts list
Section 28
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
69J-43800-11-8D
POWER TRIM & TILT ASSY 1
|
1 | |
| 2 |
6CE-43840-01
POWER TILT ASSY 1
|
1 | |
| 3 |
6CE-43810-01
.TILT PISTON SUB ASSY 1
|
1 | |
| 4 |
69J-43801-01
..ROD 1
|
1 | |
| 5 |
93106-19001
..OIL SEAL 1
|
1 | |
| 6 |
63P-43861-20
..O-RING 1
|
1 | |
| 7 |
6H1-43872-00
..RING, BACK UP 1
|
1 | |
| 8 |
61A-4389H-01
..O-RING 1
|
1 | |
| 9 |
61A-43811-00
..SCREW, CYLINDER END 1
|
1 | |
| 10 |
69J-4384H-00
..SPRING 1
|
1 | |
| 11 |
69J-4382E-00
..ADAPTOR 2 1
|
1 | |
| 12 |
6CE-4380P-00
..PISTON SUB ASSY 1
|
1 | |
| 13 |
93505-32038
...BALL 5
|
5 | |
| 14 |
61A-43861-00
...O-RING 1
|
1 | |
| 15 |
61A-43871-00
...RING, BACK UP 1
|
1 | |
| 16 |
61A-43861-00
.O-RING 1
|
1 | |
| 17 |
6H1-43814-11
.PISTON, FREE 1
|
1 | |
| 18 |
61A-43813-02
.CYLINDER, TILT 1
|
1 | |
| 19 |
69J-43835-10
PIPE 1
|
1 | |
| 20 |
69J-4388J-00
PLUG 2 1
|
1 | |
| 21 |
69J-43833-02
PIPE 1
|
1 | |
| 22 |
93210-17239
O-RING 1
|
1 | |
| 23 |
69J-4388E-01
BOLT ,SCREW 1
|
1 |
133.33 AED
Check price & stock on WhatsApp
|
| 24 |
90386-18M14
BUSH 2
|
2 | |
| 25 |
61A-43818-00
PIN, LOWER SHOCK MOUNT 1
|
1 | |
| 26 |
61A-43876-01
RING, SNAP 1
|
1 | |
| 27 |
6D8-43863-00
O-RING 1
|
1 | |
| 28 |
69J-43845-00
SCREW, MANUAL RELEASE 1
|
1 | |
| 29 |
6H1-43875-00
RING, SNAP 1
|
1 | |
| 30 |
69J-4381C-00
FILTER 3 2
|
2 |
11.92 AED
Check price & stock on WhatsApp
|
| 31 |
69J-43899-01
PLATE STOPPER 2
|
2 | |
| 32 |
69J-4389J-00
O-RING 2
|
2 | |
| 33 |
69J-43830-01
GEAR PUMP ASSY 1
|
1 |
2,269.65 AED
Check price & stock on WhatsApp
|
| 34 |
93505-32038
.BALL 4
|
4 | |
| 35 |
69J-4381C-00
.FILTER 3 1
|
1 |
11.92 AED
Check price & stock on WhatsApp
|
| 36 |
69J-4389J-00
.O-RING 2
|
2 | |
| 37 |
93503-16003
.BALL 2
|
2 | |
| 38 |
6CJ-4384M-00
.PISTON, SHUTTLE 2 1
|
1 | |
| 39 |
69A-4384F-00
.SEAL, MAIN VALVE 2
|
2 | |
| 40 |
99002-03600
.CIRCLIP 2
|
2 | |
| 41 |
69J-43894-00
.SPRING, SHUTTLE RETURN 2
|
2 | |
| 42 |
6CJ-43841-00
.PISTON, SHUTTLE 1
|
1 | |
| 43 |
6H1-43883-00
.O-RING 1
|
1 | |
| 44 |
60V-4386A-00
.PIN, ABSORBER VALVE 2
|
2 | |
| 45 |
69J-43853-00
.SPRING, MAIN VALVE 2
|
2 | |
| 46 |
6CJ-43893-00
.WASHER 2
|
2 | |
| 47 |
93501-08001
.BALL 2
|
2 | |
| 48 |
93210-08391
.O-RING 1
|
1 | |
| 49 |
69J-43851-00
.SEAT, RELIEF VALVE 1
|
1 | |
| 50 |
63P-43844-20
.PIN, VALVE SUPPORT 1
|
1 | |
| 51 |
93210-064A5
.O-RING 1
|
1 | |
| 52 |
69J-43855-00
.SPRING, UP RELIEF 1
|
1 | |
| 53 |
6CJ-43843-00
.SCREW, VALVE LOCK 2
|
2 | |
| 54 |
6H1-4384G-11
.SEAL, RELIEF VALVE 1
|
1 |
29.80 AED
Check price & stock on WhatsApp
|
| 55 |
6H1-43844-10
.PIN, VALVE SUPPORT 1
|
1 |
26.49 AED
Check price & stock on WhatsApp
|
| 56 |
6H1-43856-10
.SPRING, DOWN RELIEF 1
|
1 |
6.62 AED
Check price & stock on WhatsApp
|
| 57 |
69J-43854-00
.SPRING, MANUAL RELEASE 1
|
1 | |
| 58 |
69J-4384G-00
.SEAL, RELIEF VALVE 1
|
1 | |
| 59 |
91318-05025
.BOLT 2
|
2 | |
| 60 |
93604-35236
.PIN, DOWEL 2
|
2 | |
| 61 |
69J-43871-00
RING, BACK UP 1
|
1 | |
| 62 |
69J-43816-00
FILTER 1 1
|
1 | |
| 63 |
69J-4381J-00
PLATE 1
|
1 | |
| 64 |
91318-05040
BOLT 3
|
3 | |
| 65 |
69J-43831-00
CONNECTOR, SHAFT 1
|
1 |
672.63 AED
Check price & stock on WhatsApp
|
| 66 |
69J-4388H-00
PLUG 1
|
1 | |
| 67 |
69J-43817-00
FILTER 2 1
|
1 | |
| 68 |
69J-4388F-00
SPACER 1
|
1 | |
| 69 |
93210-66001
O-RING 2
|
2 | |
| 70 |
69J-43828-00
BODY, RESERVOIR 1
|
1 | |
| 71 |
69J-43888-00
BOLT, SOCKET 3
|
3 | |
| 72 |
93210-09165
O-RING 1
|
1 | |
| 73 |
6H1-43829-00
PLUG, RESERVOIR 1
|
1 | |
| 74 |
61A-43861-00
O-RING 2
|
2 | |
| 75 |
6D8-43863-00
O-RING 2
|
2 | |
| 76 |
63P-43812-20
SEAL, DUST 2
|
2 | |
| 77 |
61A-43821-02
SCREW, TRIM CYLINDER END 2
|
2 | |
| 78 |
69J-43820-01
TRIM PISTON SUB ASSY 2
|
2 | |
| 79 |
61A-43874-00
.RING, BACK UP 1
|
1 | |
| 80 |
61A-43864-00
.O-RING 1
|
1 | |
| 81 |
61A-4384H-10
.SPRING 1
|
1 | |
| 82 |
61A-43875-10
.RING, SNAP 1
|
1 | |
| 83 |
90110-08M05
BOLT, HEXAGON SOCKET HEAD 3
|
3 | |
| 84 |
6GR-23113-00
COLLAR 3
|
3 |
