F250HET'21

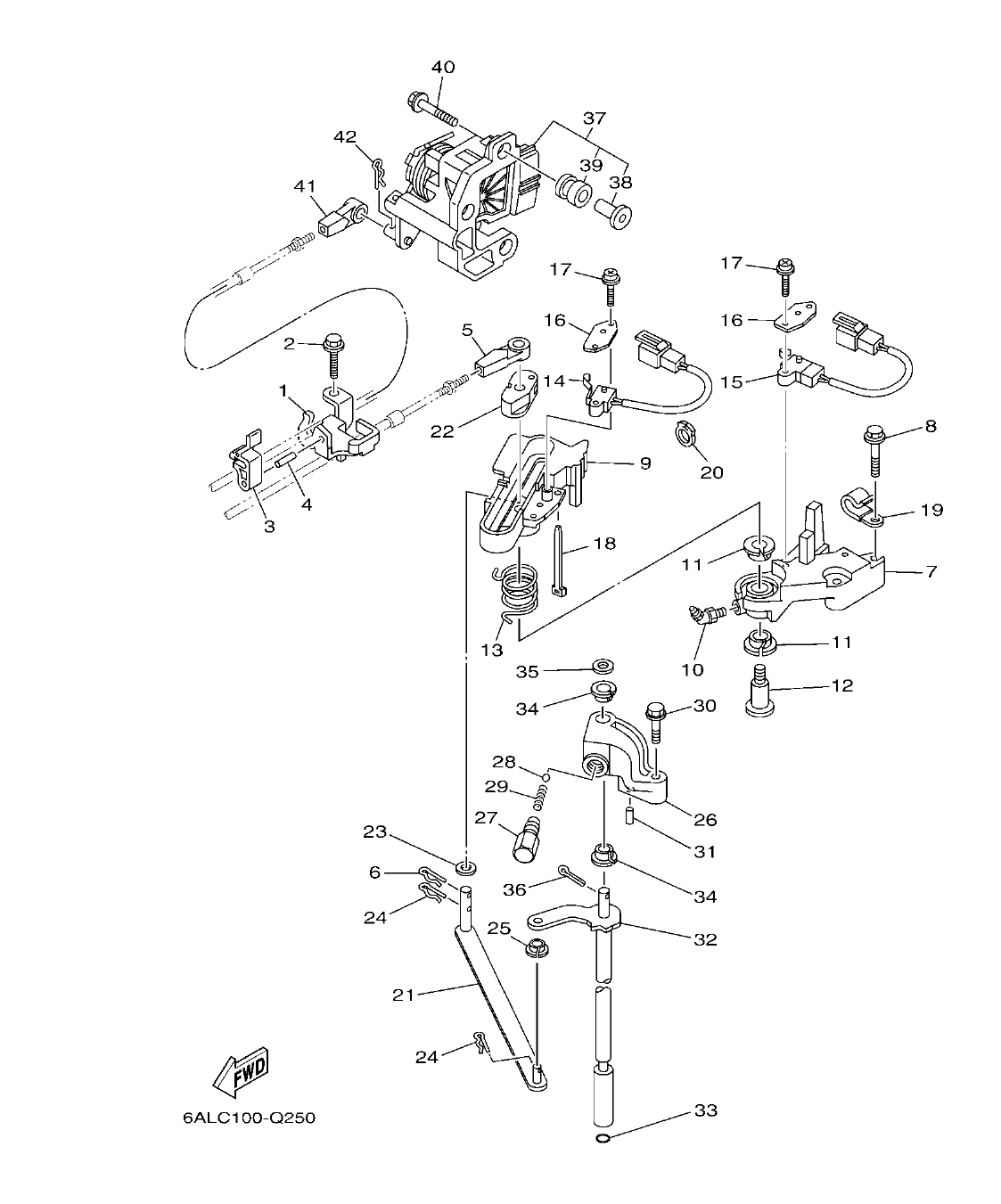

Section 25: CONTROL CONTROL (v2)
Model code: 6FJ5
Parts list
Section 25
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6P2-48531-00
BRACKET, REMOTE CONTROL 1 1
|
1 | |
| 2 |
90109-06M86
BOLT 2
|
2 | |
| 3 |
63P-48538-00
CLAMP, CABLE 1 1
|
1 | |
| 4 |
91690-30010
PIN, SPRING 1
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 5 |
6E5-48344-00
CABLE END, REMOTE CONTROL 1
|
1 | |
| 6 |
90468-18008
CLIP 1
|
1 | |
| 7 |
69J-44117-00
BRACKET 1
|
1 | |
| 8 |
97E95-06535
BOLT, HEXAGON W/W DEEP RECESS 2
|
2 | |
| 9 |
69J-44176-01
BRACKET 1
|
1 | |
| 10 |
93700-06M01
NIPPLE, GREASE 1
|
1 | |
| 11 |
90386-12069
BUSH 2
|
2 | |
| 12 |
90109-08019
BOLT 1
|
1 | |
| 13 |
90508-20020
SPRING, TORSION 1
|
1 | |
| 14 |
60V-8259F-00
SWITCH ASSY 1
|
1 | |
| 15 |
69J-8259F-00
SWITCH ASSY 1
|
1 | |
| 16 |
61A-82588-01
PLATE 2
|
2 | |
| 17 |
97985-04116
SCREW, WITH WASHER 4
|
4 | |
| 18 |
90465-11M10
CLAMP 1
|
1 | |
| 19 |
90465-06M86
CLAMP 1
|
1 | |
| 20 |
90464-09010
CLAMP 1
|
1 | |
| 21 |
6P2-44121-00
LEVER, SHIFT ROD 1
|
1 | |
| 22 |
69J-44122-00
BUSHING, SHIFT ROD LEVER 1
|
1 | |
| 23 |
90202-08M20
WASHER, PLATE 1
|
1 | |
| 24 |
90468-18008
CLIP 2
|
2 | |
| 25 |
90386-06M12
BUSH 1
|
1 |
13.41 AED
Check price & stock on WhatsApp
|
| 26 |
69J-44118-00
BRACKET 1
|
1 | |
| 27 |
648-42715-00
BUSHING 2 1
|
1 | |
| 28 |
93501-04M02
BALL 1
|
1 | |
| 29 |
90501-12082
SPRING, COMPRESSION 1
|
1 | |
| 30 |
97E75-06535
BOLT, HEXAGON W/W DEEP RECESS 1
|
1 | |
| 31 |
91690-30010
PIN, SPRING 1
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 32 |
69J-44120-12
HANDLE GEAR SHIFT ASSY
U(30.3")
|
1 | |
| 32 |
69J-44120-02
HANDLE GEAR SHIFT ASSY 1
X(25.3")
|
1 | |
| 33 |
93210-09165
O-RING 1
|
1 | |
| 34 |
90386-90M90
BUSH 2
|
2 | |
| 35 |
90201-09M02
WASHER, PLATE 1
|
1 |
6.70 AED
Check price & stock on WhatsApp
|
| 36 |
91490-20015
PIN. COTTER 1
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 37 |
6P2-8A410-02
SENSOR UNIT 1
|
1 | |
| 38 |
6P2-44139-00
.COLLAR 3
|
3 | |
| 39 |
6CB-41273-00
.GROMMET 3
|
3 | |
| 40 |
90119-06297
BOLT, WITH WASHER 3
|
3 | |
| 41 |
6E5-48344-00
CABLE END, REMOTE CONTROL 1
|
1 | |
| 42 |
90468-18008
CLIP 1
|
1 |
