FL250HET'21
Section 1: SCHEDULED SERVICE PARTS PARTES DE REPUESTO TEMPORALES (v2)
Model code: 6FK5
Section 1 β SCHEDULED SERVICE PARTS PARTES DE REPUESTO TEMPORALES
FL250HET'21
100%

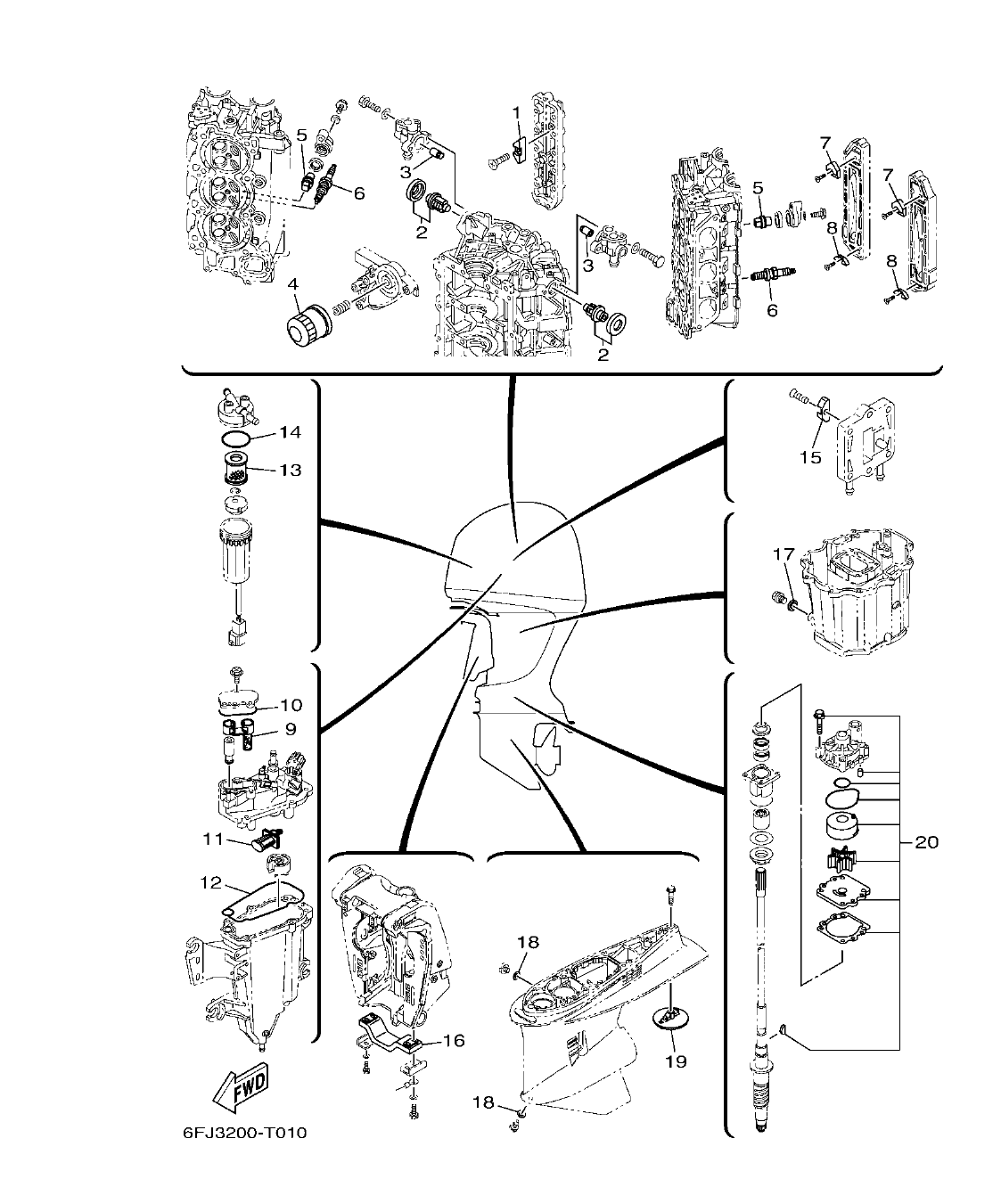

Diagram image
Open full size
Parts list
Section 1
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6E5-11325-00
ANODE 4
|
4 | |
| 2 |
67F-12411-01
THERMOSTAT 2
|
2 | |
| 3 |
6P3-11325-00
ANODE 2
|
2 | |
| 4 |
69J-13440-04
ELEMENT ASSY, OIL CLEANER 1
|
1 | |
| 5 |
67F-11325-01
ANODE 4
|
4 | |
| 6 |
94702-00400
PLUG, SPARK (NGK LFR6A-11) 6
|
6 | |
| 7 |
6P2-11325-00
ANODE 2
|
2 | |
| 8 |
6E5-11325-00
ANODE 2
|
2 | |
| 9 |
6CB-24501-01
FILTER, FUEL 1
|
1 | |
| 10 |
6CB-13016-00
O-RING 1
|
1 | |
| 11 |
63P-13915-00
FILTER 1
|
1 | |
| 12 |
6CB-14984-00
GASKET, FLOAT CHAMBER 1
|
1 | |
| 13 |
6P3-24563-02
ELEMENT, FILTER 1
|
1 | |
| 14 |
6P3-24564-00
GASKET 1
|
1 | |
| 15 |
6E5-11325-00
ANODE 1
|
1 | |
| 16 |
6G5-45251-02
ANODE 1
|
1 | |
| 17 |
90430-14M09
GASKET 1
|
1 | |
| 18 |
90430-08003
GASKET 2
|
2 | |
| 19 |
6CE-45373-00
ANODE 1
|
1 | |
| 20 |
6S1-W0078-01
WATER PUMP REPAIR KIT 1
|
1 |
