FL250HET'21

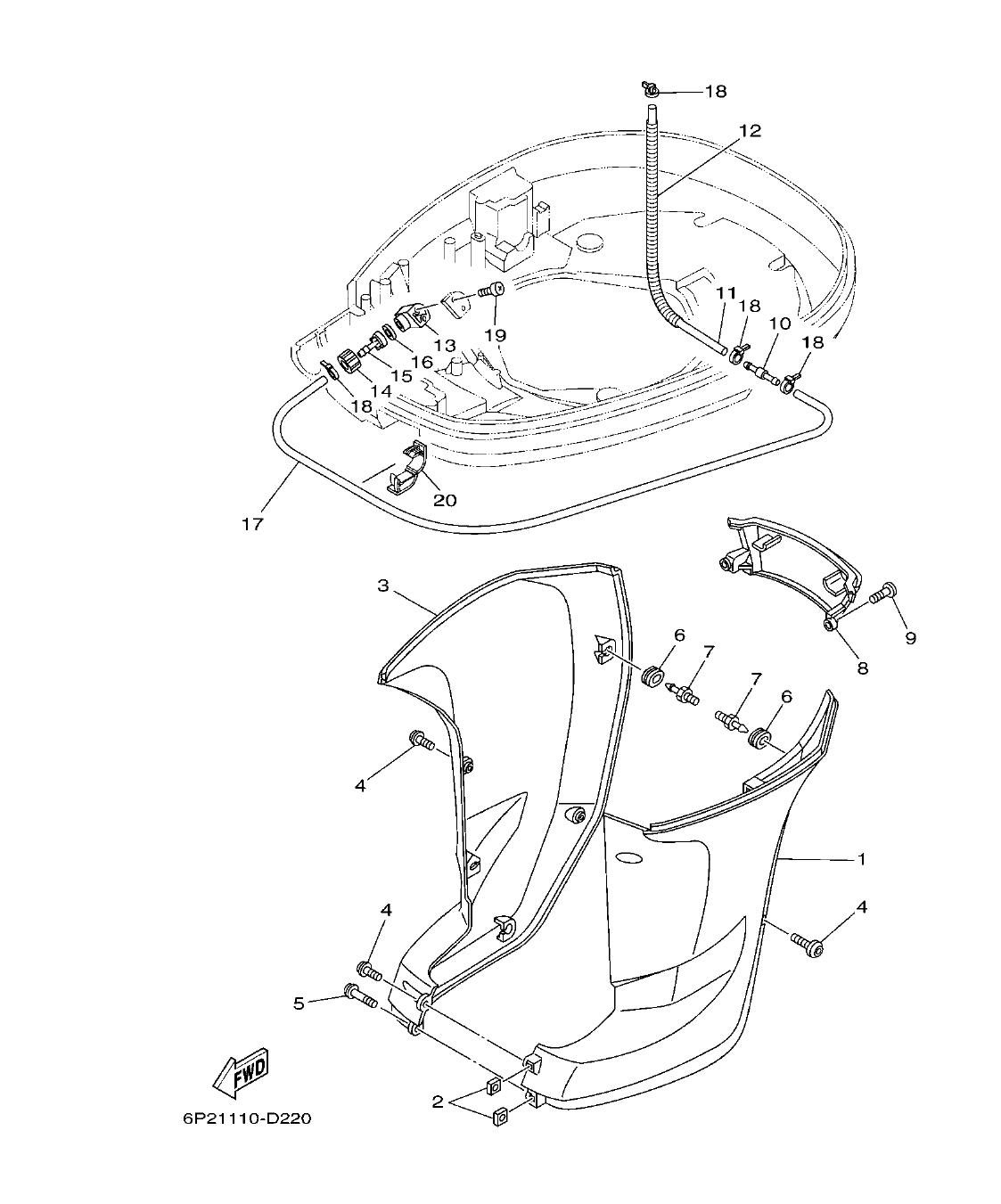

Section 24: BOTTOM COWLING 2 CUBIERTA INFERIOR 2 (v2)
Model code: 6FK5
Parts list
Section 24
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
69J-42741-00-8D
APRON 1
|
1 | |
| 2 |
90173-06001
NUT, SQUARE 2
|
2 | |
| 3 |
69J-42771-00-8D
APRON 1
|
1 | |
| 4 |
90111-06144
BOLT,HEX. SOCKET BUTTON 5
|
5 | |
| 5 |
90111-06142
BOLT,HEX. SOCKET BUTTON 1
|
1 | |
| 6 |
90480-14M17
GROMMET 6
|
6 | |
| 7 |
69J-42774-10
STAY, APRON 1 6
|
6 | |
| 8 |
69J-45151-00-8D
COVER, UPPER CASING 1
|
1 |
178.03 AED
Check price & stock on WhatsApp
|
| 9 |
90111-06144
BOLT,HEX. SOCKET BUTTON 2
|
2 | |
| 10 |
6E5-24379-00
PIPE, JOINT 4 1
|
1 | |
| 11 |
90445-11M47
HOSE (L370) 1
|
1 | |
| 12 |
90447-13009
TUBE 1
|
1 | |
| 13 |
6DR-12572-00
ADAPTER 1
|
1 |
16.93 AED
Check price & stock on WhatsApp
|
| 14 |
6R3-12581-00
JOINT, HOSE 1 1
|
1 | |
| 15 |
6R3-12582-00
JOINT, HOSE 2 1
|
1 | |
| 16 |
6R3-12583-00
GASKET, HOSE JOINT 1
|
1 | |
| 17 |
90445-11028
HOSE (L1050) 1
|
1 | |
| 18 |
90465-11M10
CLAMP 4
|
4 | |
| 19 |
97780-60520
SCREW, TAPPING 2
|
2 | |
| 20 |
90464-18004
CLAMP 1
|
1 |
